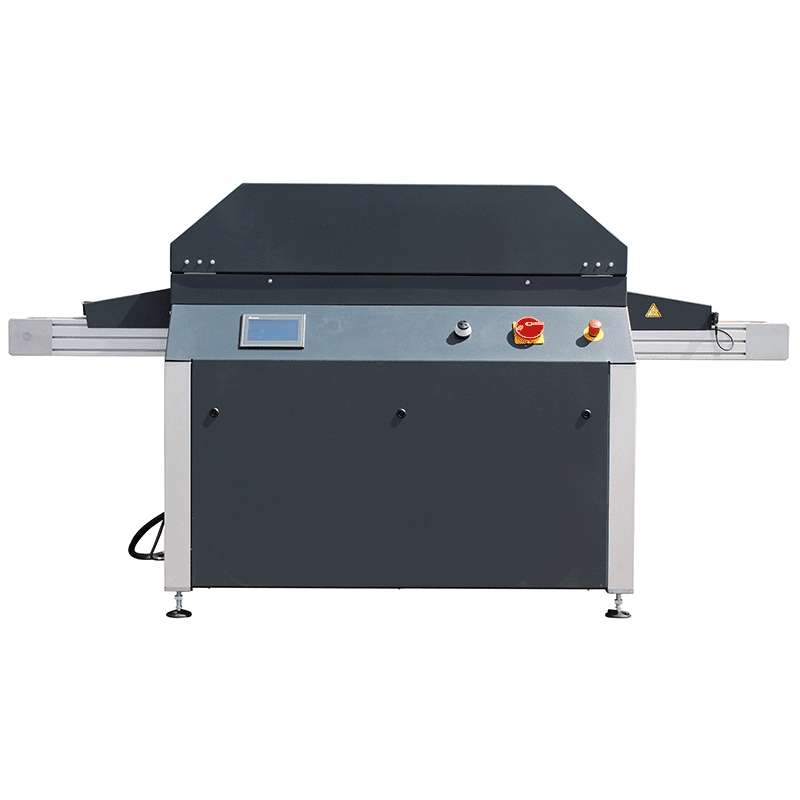

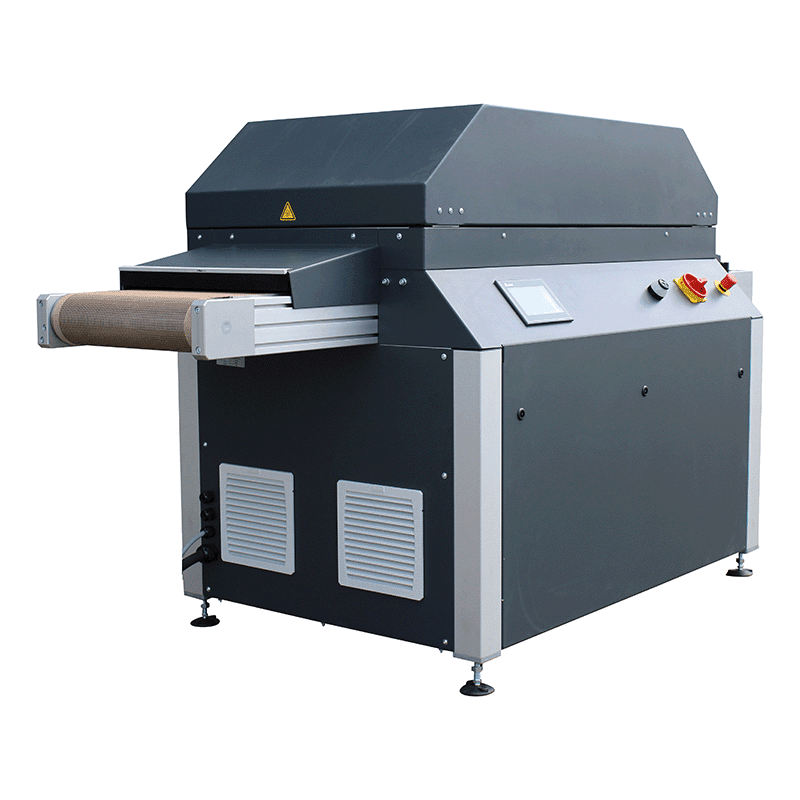

UV Dryer

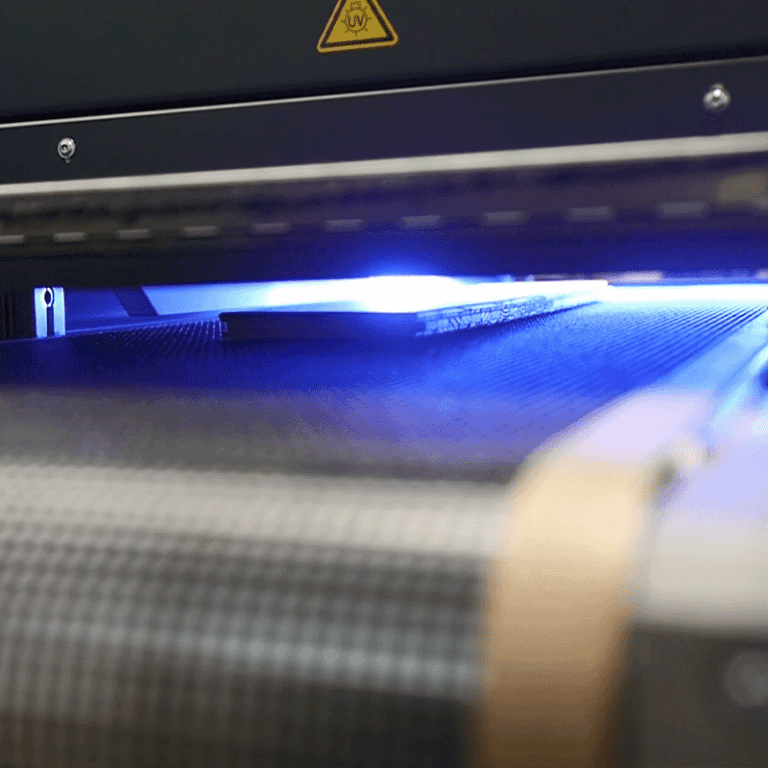

The Trivec UV Dryer is a versatile solution designed for a variety of industries, excelling in efficiently drying and curing UV coatings, including lacquers, sealers, stains, and oils. Equipped with electronic power regulators, the dryer allows lamp power adjustment from 20% to 100%. The machine features workpiece detection to reduce energy use and includes an exhaust system for efficient operation. Settings like lamp power, throughput speed, and temperature are easily controlled via a touchscreen interface.

The cassette system enables quick lamp replacement and cleaning, minimizing downtime. Suitable for full-cure and gel-cure applications, the UV dryer can integrate conventional UV-lamp technology for added flexibility.

UV Dryer

High performance UV dryer for drying (full curing or gelling) UV-lacquer, UV-sealers, UV-stains, and UV-oils.

Parquet / flooring industry.
Furniture industry.
Test labs.
Printing industry.
Concrete industry.

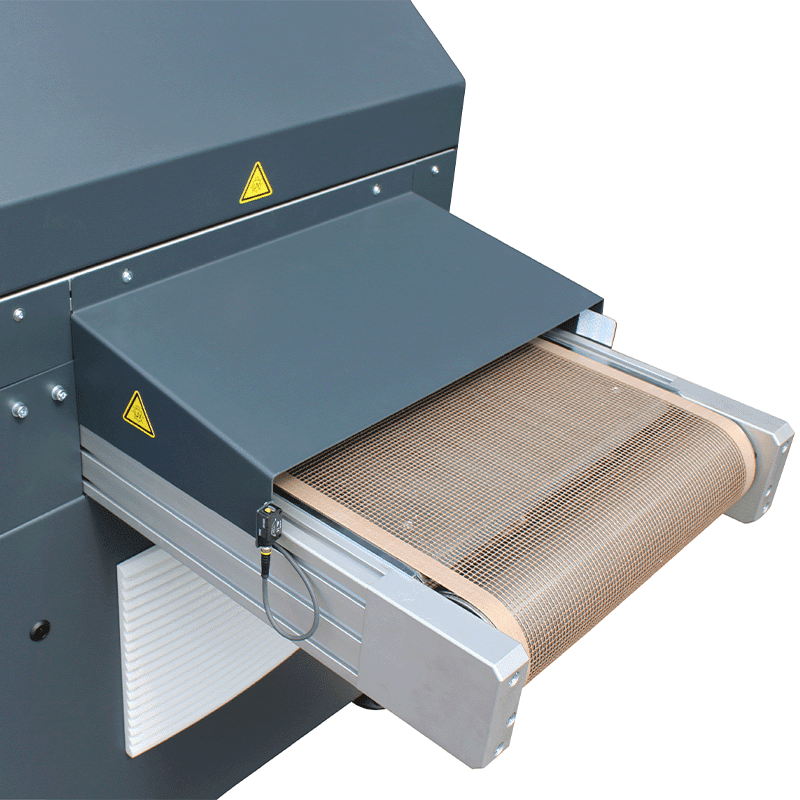

Workpiece detection for optimal energy use
Adjustable lamp power and throughput speed
Unique cassette system for quick changing or cleaning of the lamps
Equipped with the Trivec remote service module

Length transport system – 2500 mm
Max capacity – 2x 160W/cm (20-100%)
Working width – 400 mm – 600 mm, wider versions possible
Throughput speed – 2 – 20 m/min, depending on coating
Exhaust system – 2 x 100mm, exhaust fans supplied.
Control system – Touchscreen (prepared for remote control)

Compatibility & Integration

Compatibility and Future-Proof Integration

The Trivec UV Dryer integrates seamlessly with Trivec machinery and third-party equipment, such as coating stations and polishing lines. Its adaptable design ensures compatibility with both existing production lines and future upgrades. Ideal for industries like parquet and flooring, furniture manufacturing, and printing, the dryer operates efficiently as a standalone unit or within larger systems. It guarantees consistent, high-quality drying and curing for operations of any scale.

Safe and Efficient Line Connection

The Trivec UV Dryer is equipped with a control cabinet featuring emergency stop connections and error notification systems, ensuring both safety and reliable operation. These safety features enable seamless and secure integration into production lines of any size or complexity, guaranteeing smooth and efficient operation. With a strong focus on safety and productivity, the Trivec UV Dryer supports continuous, high-performance curing and drying throughout the production cycle.

Compatibility for Diverse Production Needs

The Trivec UV Dryer is designed for maximum versatility, making it ideal for a wide range of production environments. It is compatible with various UV coatings, including lacquers, sealers, stains, and oils, ensuring it meets the specific needs of different materials and applications. The dryer easily integrates into both existing and expanded production lines, making it suitable for operations of any scale. Featuring energy-saving capabilities such as workpiece detection and adjustable lamp power, it optimizes energy use while maintaining high performance.

Play Video

Looking for Similar Options?

Explore other machines that could be the perfect fit for your needs.

LED-UV Dryer

Dryers

IR-AIR Drying Machine

Dryers

Fan Trolley

Dryers

Testimonials

Trivec’s team is exceptional. Wiebe’s expertise and problem-solving skills keep our production running at peak performance, while Branko’s innovative approach ensures we stay ahead with new design concepts. Their commitment to quality and customer satisfaction makes them more than a supplier—they’re a true strategic partner. We highly recommend Trivec to any company looking to optimize its production.

We faced serious bottlenecks in our coating line, slowing down production and efficiency. Trivec Engineering provided the perfect solution with a custom-designed Coating Line that completely eliminated these issues. Our output has increased, and their proactive maintenance service prevents costly downtime. Trivec’s expertise, reliability, and commitment to customer satisfaction make them a trusted partner. We highly recommend them to any company looking to optimize production.

Initially, we had doubts about choosing Trivec, particularly regarding the price and the robustness of the machines. However, we have purchased multiple machines from them and have always experienced a professional and pleasant collaboration. The support was prompt and helpful, and the service was solution-oriented. We appreciate Trivec as a reliable and customer-focused partner. That is why we would certainly recommend them to others.

We have been using Trivec machines on our production line for some time now, and we couldn’t be more satisfied. The build quality is outstanding—robust, reliable, and clearly designed with long-term use in mind. The machines are also incredibly user-friendly, which has helped streamline our workflow and reduce training time.

Equally impressive is Trivec’s customer support. Their team is consistently responsive, knowledgeable, and genuinely helpful whenever we’ve needed assistance, and we are especially grateful to Wiebe for all his support. It’s clear they stand behind their products and are committed to their customers’ success.

We would highly recommend Trivec to any company looking for high-quality, dependable finishing equipment backed by excellent service.

Paul Byrne

Production Manager, Matt Britton

FAQ´s

Still have questions? Find the answers you’re looking for below.

Is the machine line scalable for future expansion?

Yes. Our philosophy is modular – which means Trivec machines are designed to easily combine, expand, or adapt processing steps. This allows you to work more efficiently while ensuring that the machine or complete line grows alongside your business development. Whether you’re starting with a compact setup or already have a full production line in place, future expansion is always possible. This includes additions such as extra application units, drying systems, automation, or integration with other processes. We also evaluate each situation individually and offer targeted modifications to existing machines, fully tailored to your needs. This way, your investment remains both future-proof and flexible.

Can I test the machines first or see a demo?

Yes, absolutely! At Trivec, we offer you the opportunity to thoroughly test our machines or see them in action. In our Trivec Experience Center, you can work together with our specialists to demonstrate your application using your own materials. This can also be done in collaboration with your lacquer or oil supplier. This gives you a clear picture in advance of the results and how the solution fits into your production process. Transparency and customization are central to our approach. Feel free to contact us to schedule a test or demo appointment.

How much space does a complete machine line require?

The space required for a complete machine line depends on the type of line, the selected machines, and any additional modules such as drying or extraction units. The shortest complete Trivec machine line starts at approximately 5.5 meters in length. We always take your available on-site space into account. When necessary, we adjust the design or machine configuration to ensure the line fits perfectly within your production environment. Based on your specific needs and situation, we are happy to provide a tailored layout proposal.

What is the lifespan of a machine line?

The lifespan of a Trivec machine line depends on usage, maintenance, and the conditions in which it operates. With proper and regular maintenance, you can easily operate the line for 20 years or more. Our first parquet machine line was delivered over 20 years ago and is still running daily to the customer’s full satisfaction. That’s a great example of the durability and reliability of our systems. Why Trivec machines last so long: Built with high-quality components Robust design capable of withstanding intensive industrial use Modular construction, allowing for easy maintenance and part replacement Access to maintenance services, spare parts supply, and technical support Video tutorials and personal service from our technicians to minimize downtime Thanks to this approach, your machine line remains durable and future-proof. Want to learn more about maintenance or expected lifespan in your specific situation? Feel free to contact us or visit our Experience Center & Test Lab.

How easy are the machines to maintain?

Trivec machines – particularly our automatic coating systems – are designed for easy self-maintenance, minimal downtime, and maximum user-friendliness. From the design stage, we prioritize component accessibility, allowing maintenance tasks to be carried out quickly and safely, often using standard tools. Ease of maintenance in practice: Modular and well-organized design Components are easily accessible and clearly mounted, which speeds up maintenance work. Tool-free changeover systems Many components, such as application rollers or reservoirs, can be removed without tools for quick cleaning or replacement. Easy-to-clean surfaces Smooth finishes and open construction make daily cleaning simple and efficient. Support via video and documentation On Trivec’s YouTube channel, you’ll find instruction videos from our own technicians, offering clear guidance on troubleshooting, maintenance, and repairs. Technical support from real specialists Our technicians are always available to provide support by phone, online, or on-site for any questions or technical issues. Would you like to see what maintenance on a specific machine looks like, or are you interested in training for your team? Feel free to contact us or schedule a demonstration at our Experience Center & Test Lab.
