Single Roller Coater Premium

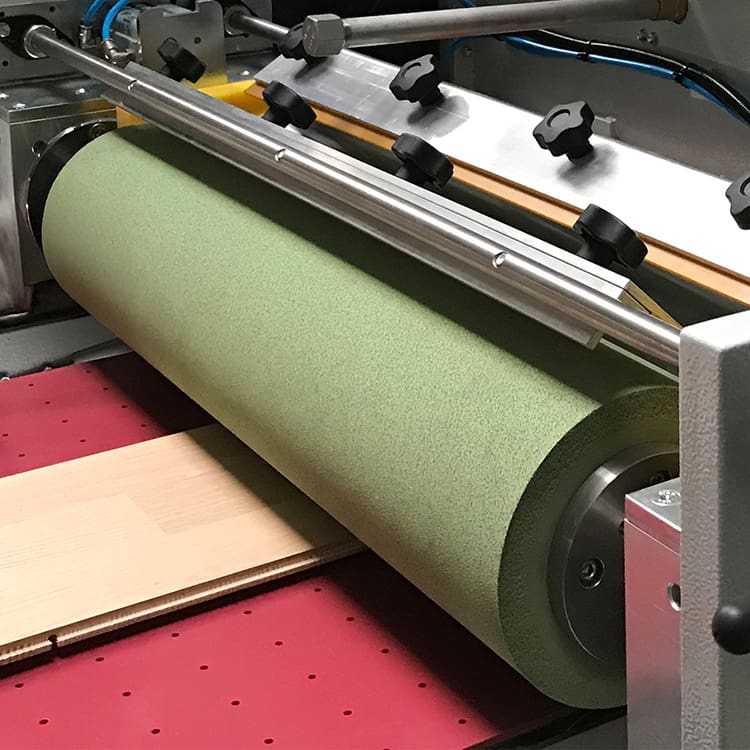

The Trivec Premium Single Roller Coater is equipped with a dosing- and application roller. Electrical height adjustment and user friendly touchscreen are standard, as well as the integrated conveyor belt with support roller.

The coating thickness can be made precisely by changing the pressure between the application- and dosing roller, the speed of the rollers and the rotational direction of the dosing roller. The application roller can be removed without the use of tools from the machine, for quick colour change or cleaning.

Optional with touchscreen, feeding pump, rail system, single reverse function, oscillating scraper knife, and chiller/heater unit for regulating viscosity.

Single Roller Coater Premium

Professional Premium roller coater for precisely applying coatings on flat surfaces. With special soft rollers, the machine can also be used for profiled surfaces. Comes with electrical height adjustment and preparation for roller heating/cooling to regulate product viscosity.

  • Parquet, Interior, and Furniture Panels: The machine delivers a flawless finish for wood, applying both base and top coatings.
  • Cork, Stair Treads, and Other Materials: Also suitable for oiling stair treads, finishing cork, and many other applications.
  • Primer for Digital Print Preparation: Can be used for applying primers prior to digital printing.
  • Coating of Various Surfaces: Ideal for base and topcoat applications on glass, cardboard, plastic, ceramic and concrete tiles, and even for printed circuit board applications.
  • Dosing and application rollers.
  • Electrical height adjustment.
  • User-friendly touchscreen.
  • Integrated conveyor belt with support roller.
  • Adjustable coating thickness via: Pressure between the application and dosing rollers, speed of the rollers and rotational direction of the dosing roller.
  • Tool-free removal of the application roller for quick color changes or cleaning.
  • Optional Add-Ons:
    • Additional touchscreen interface.
    • Feeding pump system.
    • Rail system for enhanced stability.
    • Single reverse function for advanced coating control.
    • Oscillating scraper knife for precise coating removal.
    • Chiller/heater unit for regulating coating viscosity.
  • Width – 1200
  • Height – 1350
  • Effective working width – 400 mm
  • Work height – 900 mm (+20/-20 mm)
  • Feed through height min/max. – 4 – 40 mm
  • Feed through speed – 2 – 20 m/min
  • Ø Chromed dosing roller – 123 mm
  • Electrical connection – 400V / 50Hz (3Ph + 0 + ground)
  • Dosage settings – digital readout
  • Integrated LED lighting – with on/off switch
  • Height adjustment – electric, with digital readout
  • Knife – HQ with lock coupling
  • Conveyor belt – grip conveyor
  • Prepared for heating dosage roller – prepared for coupling to optional external heating unit
  • Roller closing system – Pneumatic
  • Marking – CE

The Result

View the results achieved with Trivec’s Single Roller Coater Premium

Compatibility & Integration

Compatibility and Future-Proof Integration

The Single Roller Coater Premium is engineered for seamless integration with both Trivec machines and equipment from other manufacturers, including coating stations, dryers, and polishing conveyors. This provides exceptional flexibility for configuring and expanding production lines. Its future-focused design allows it to integrate effortlessly into larger production setups without requiring any modifications, making it an ideal solution for scalable operations.

Safe and Efficient Line Connection

The Single Roller Coater Premium is equipped with a control cabinet featuring connections for emergency stop and error notifications. These capabilities enable safe and efficient integration into production lines of any configuration or complexity, ensuring both the safety and uninterrupted operation of the entire production process.

Customizable Add-Ons for Enhanced Functionality

The Single Roller Coater Premium offers a range of optional add-ons to tailor the machine to specific customer needs, ensuring seamless integration into unique production environments. These include options such as a feeding pump system, a specialized roller configuration, and a rail system for enhanced stability. Additional features include an advanced touchscreen interface, a single reverse function for precise coating control, an oscillating scraper knife for accurate coating removal, and a chiller/heater unit for regulating coating viscosity. These enhancements provide optimal efficiency and adaptability, making the machine ready for evolving production requirements.
