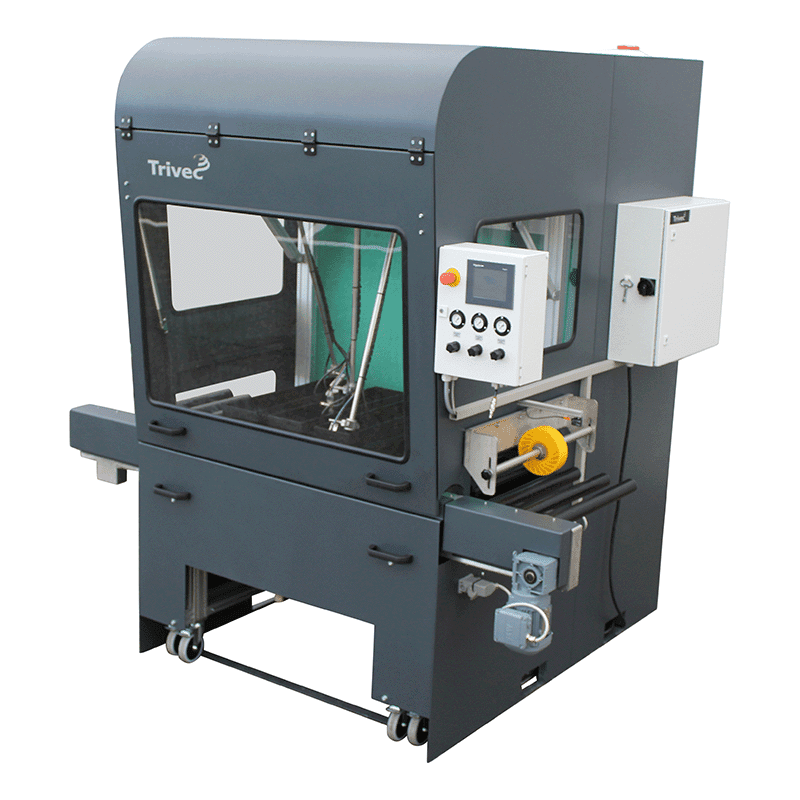

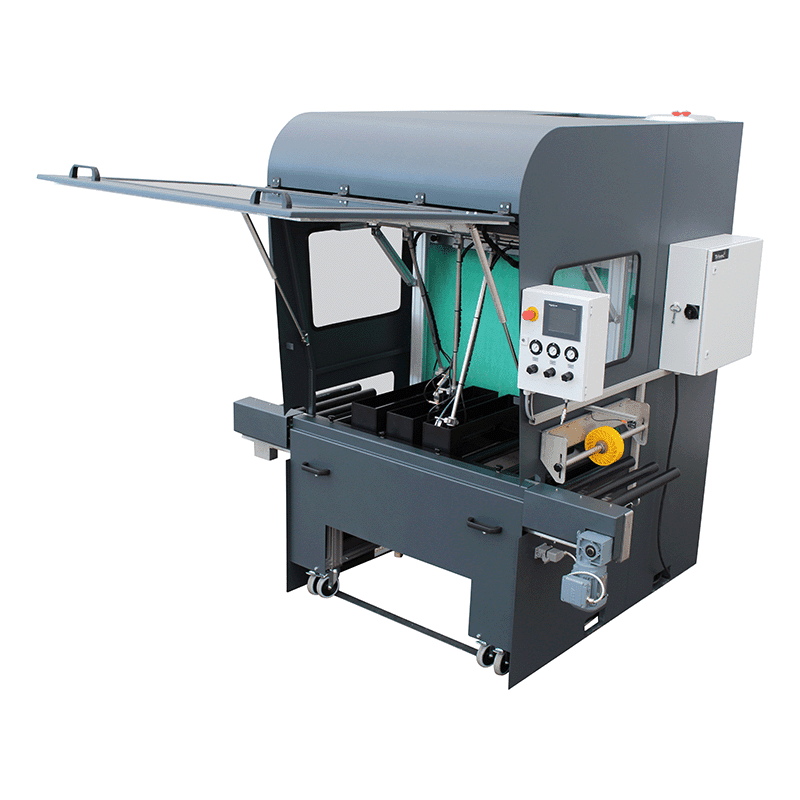

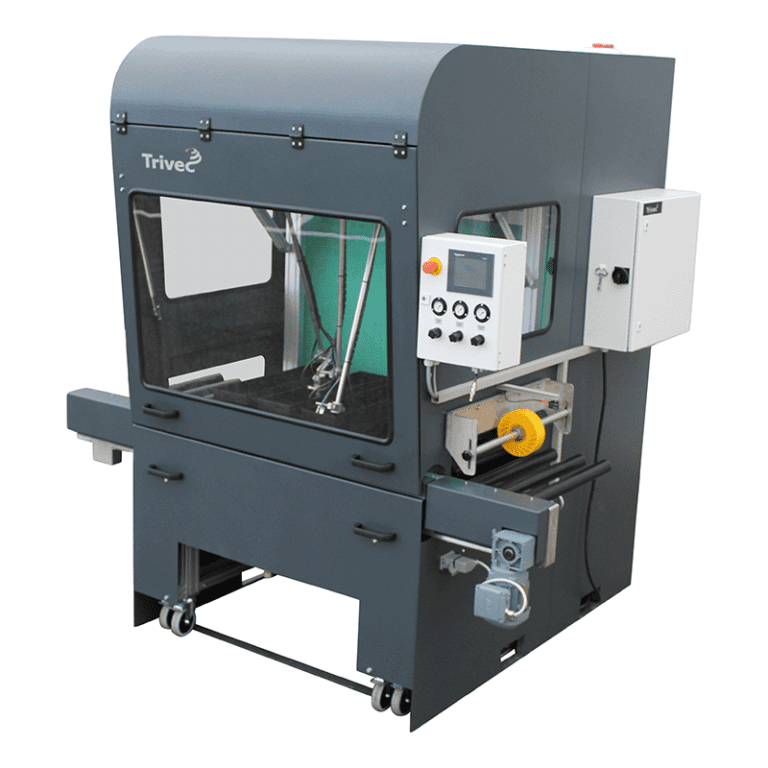

Spraying Machine TMQ

The Spraying Machine TMQ efficiently coats long, thin workpieces like plinths, parquet flooring, and profiles with paints, lacquers, and stains, ensuring consistent quality and minimal waste.

Its lacquer-resistant conveyor ensures uniform application, while the integrated overspray system collects, filters, and recycles excess material. The TMQ accommodates various workpiece sizes, supports water-based and solvent-based coatings, and features a double-sided exhaust system to maintain a clean workspace. Optional feeding and output modules allow seamless integration into automated production lines for enhanced scalability and flexibility.

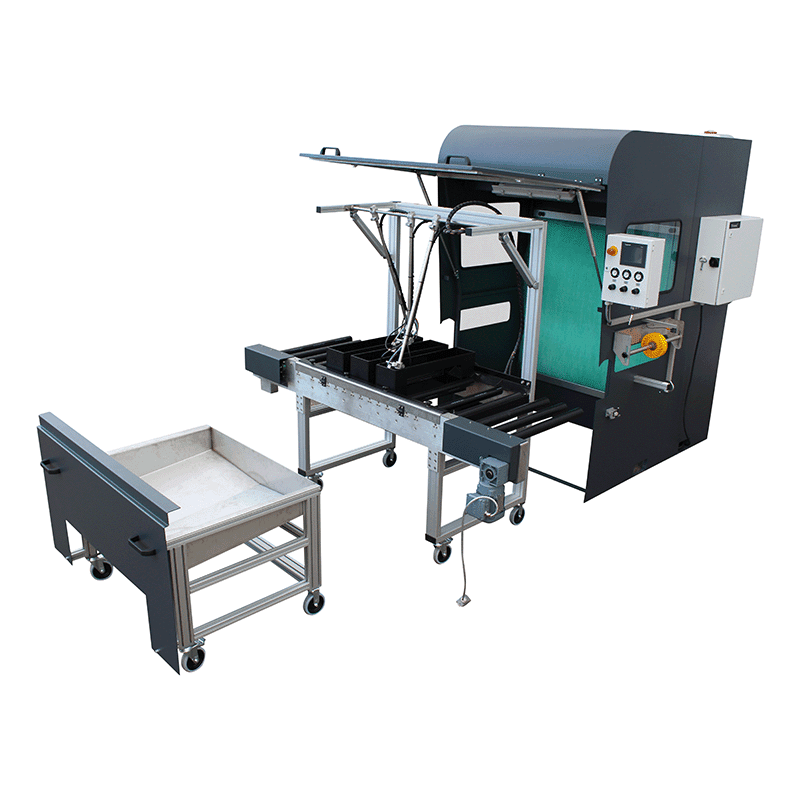

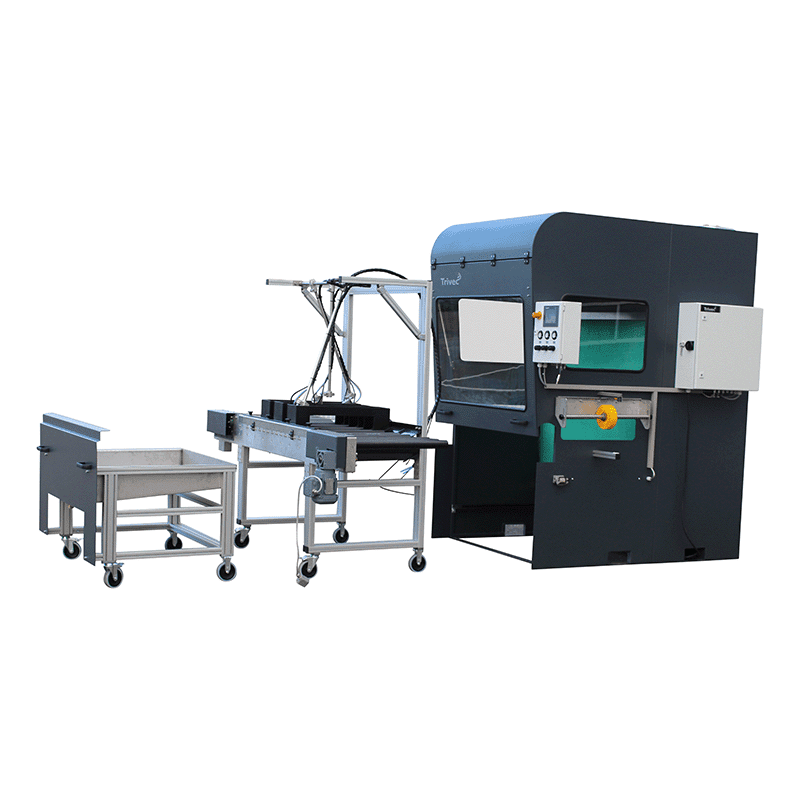

Spraying Machine Tmq All Components Top View

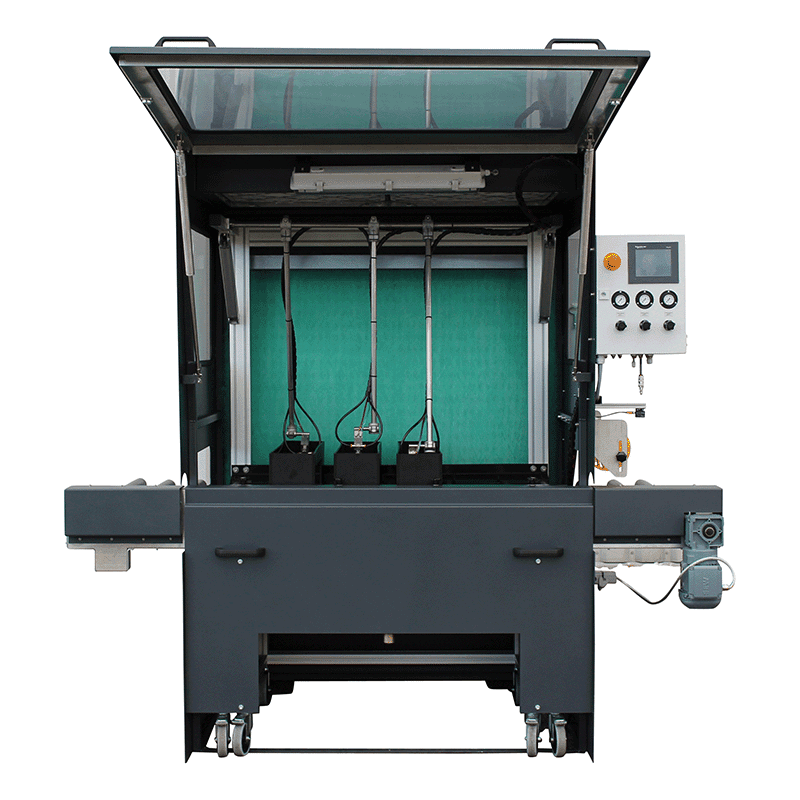

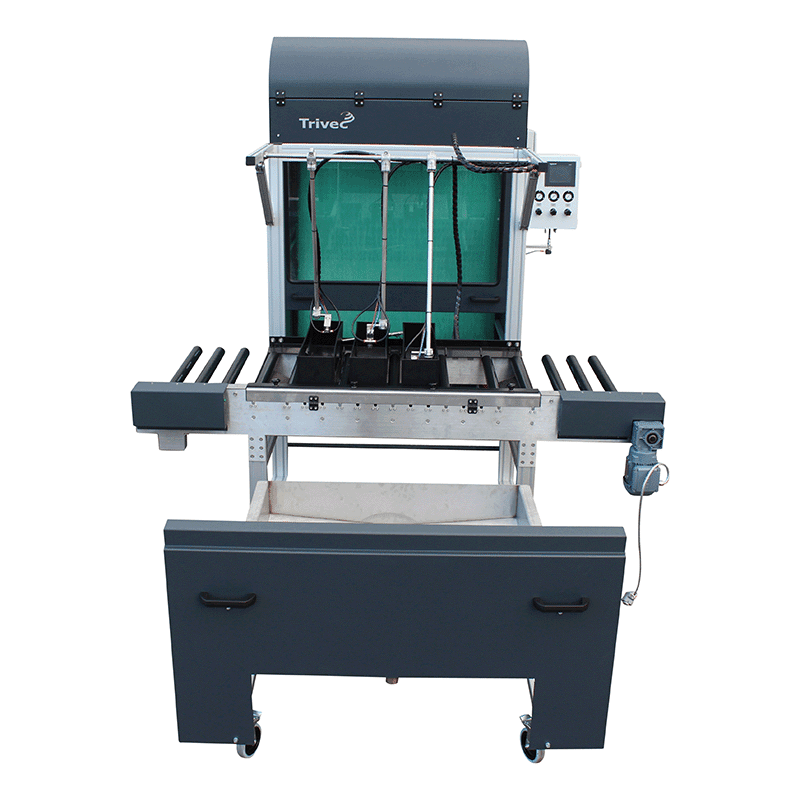

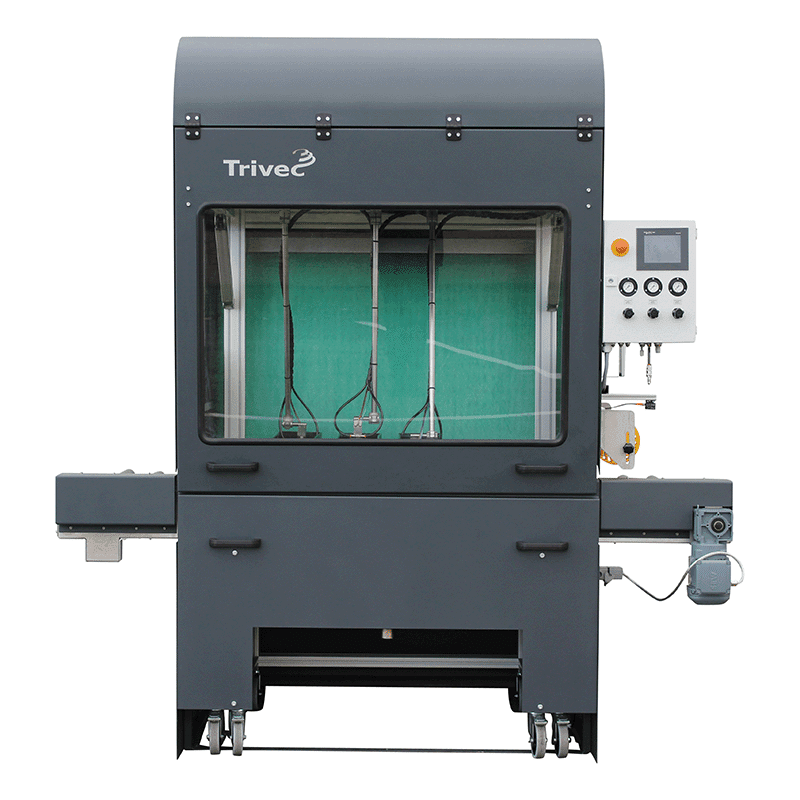

Spraying Machine Tmq All Components Front

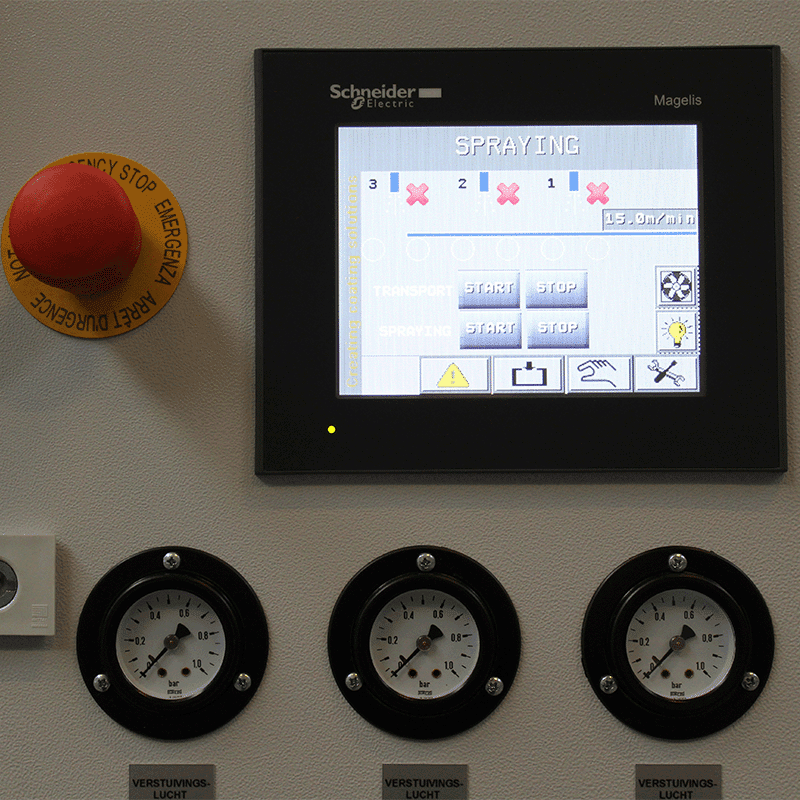

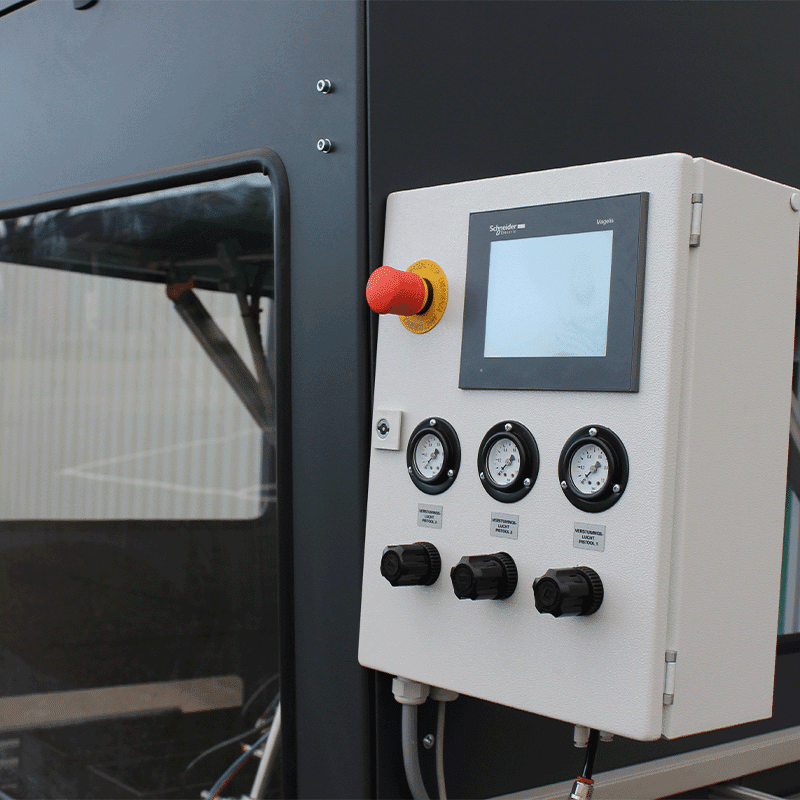

Spraying Machine Tmq Touchscreen Close Up

Benefits

Designed to spray paints, lacquer, and stains on long thin workpieces.

The Result

View the results achieved with the Spraying Machine TMQ.

Reactive Stain Sprayer Effect Haringbone

Reactive Stain Sprayer Effect Different Colors

About the Spraying Machine TMQ

Applications

Long, Thin Workpieces: The Spraying Machine TMQ is perfect for 1, 2, or 3-sided coating of long, thin workpieces such as plinths, parquet flooring, metal profiles, plastic profiles, and frames using water-based or solvent-based paints, lacquers, and stains.
Efficient Overspray Management: The TMQ features an integrated overspray collection system that filters and recycles excess material. Its modular design allows the transport system and overspray collection unit to be easily wheeled out for quick filter changes, cleaning, and maintenance.
Sustainable Operation: Designed for eco-friendly production, the TMQ supports sustainable coatings and minimizes waste, making it an energy-efficient and cost-effective solution for precision finishing.

Features & Functions

Supports 1, 2, or 3-sided coating of long, thin workpieces such as plinths, parquet flooring, and profiles.

Ensures precise and consistent application of paints, lacquers, and stains in a single passthrough.

Compatible with water-based and solvent-based coatings.

Accommodates various workpiece sizes with adjustable transport rollers and lacquer-resistant conveyor.

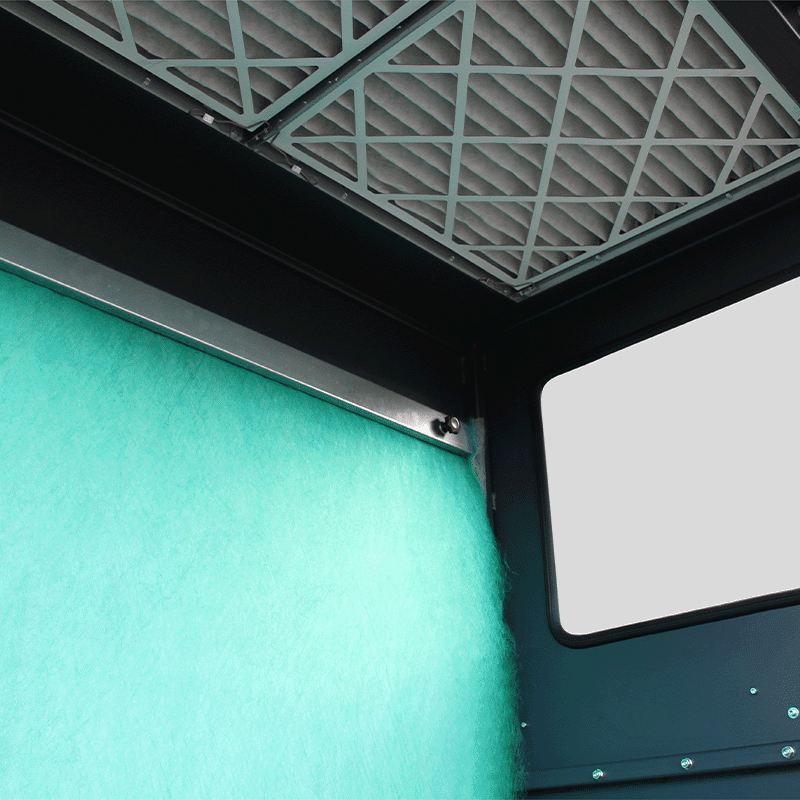

Integrated overspray collection system filters and recycles excess material for reduced waste.

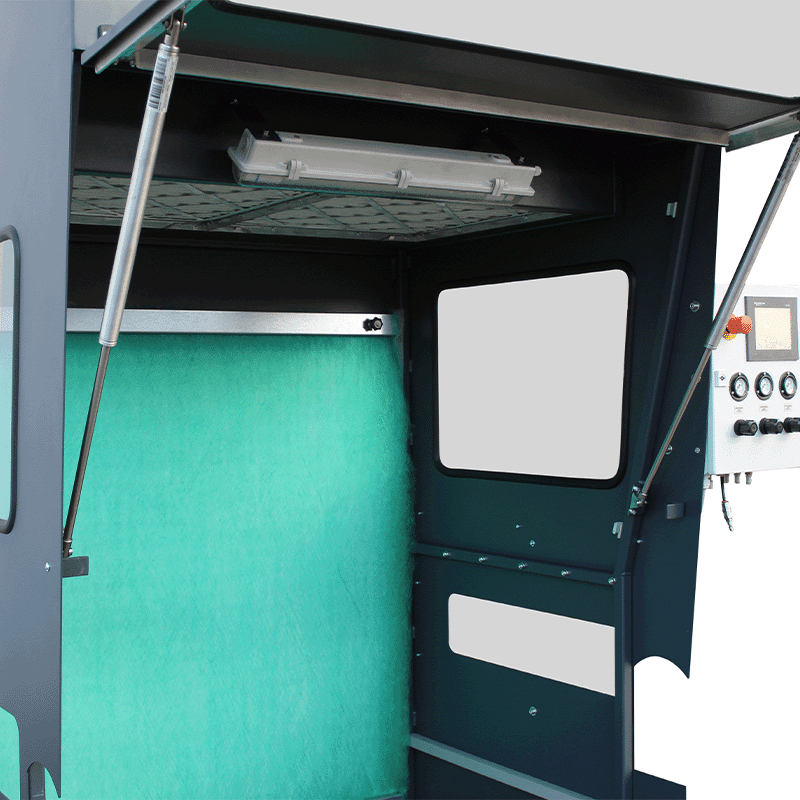

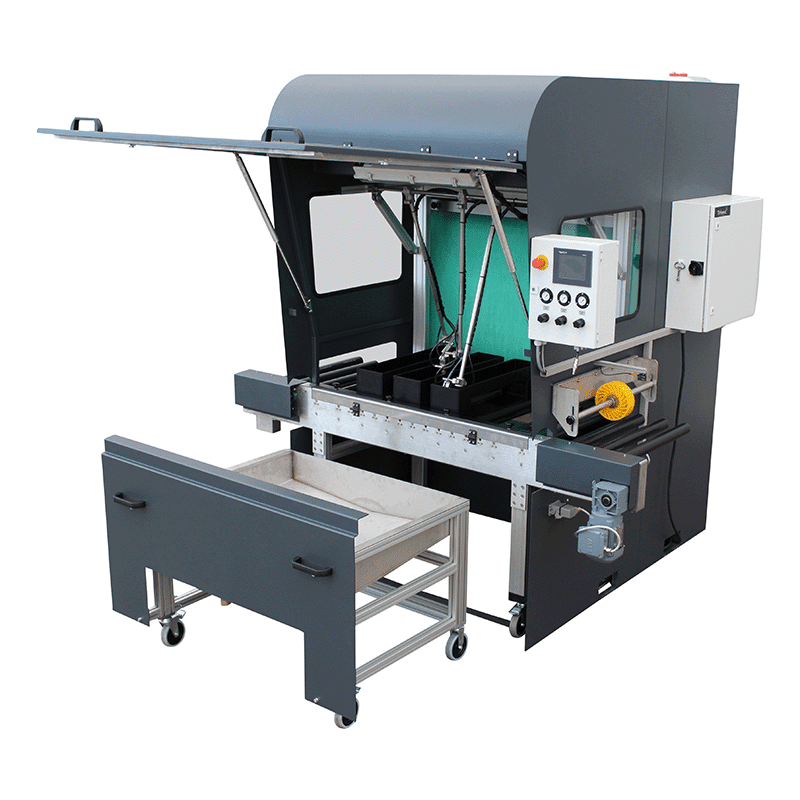

Modular design allows transport and overspray units to be wheeled out for easy cleaning and maintenance.

Double-sided exhaust system efficiently captures overspray to maintain a clean workspace.

Customizable with different spray guns and pump systems to match coating requirements.

Optional infeed and outfeed modules for seamless production line integration.

Operated via a user-friendly control system with optional touchscreen interface.

Specifications

Working width – 300 mm

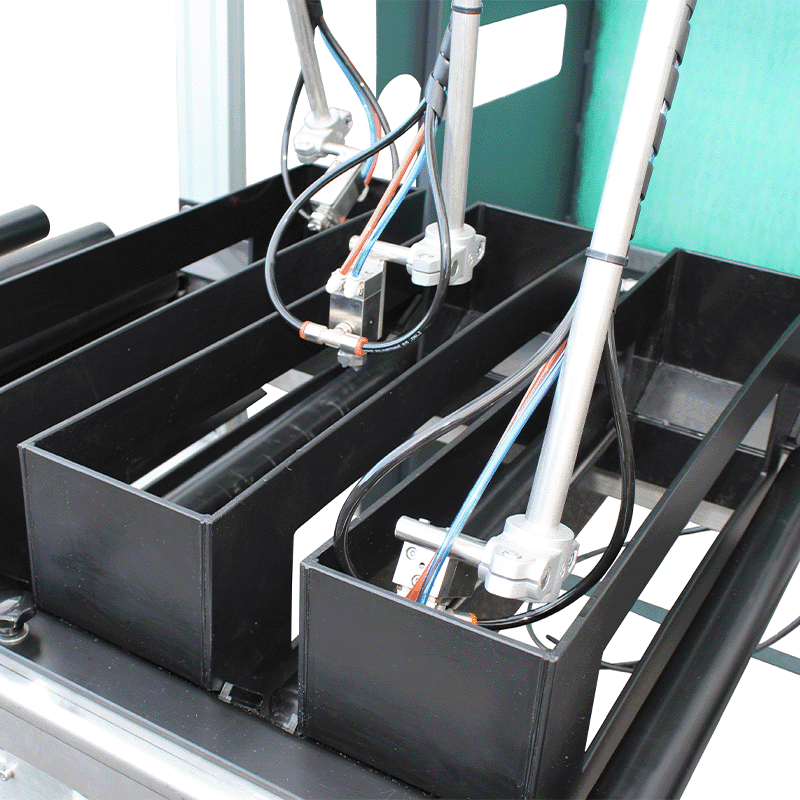

Pistol holders – 3 pieces
Throughput speed – 10 to 60 m/min
Exhaust system – Integrated

Compatibility & Integration

Compatibility and Future-Proof Integration

The Spraying Machine TMQ is designed for seamless integration with Trivec systems and equipment from other manufacturers, including conveyors, drying units, and polishing stations. Its versatile design allows flexible configuration and effortless expansion of production lines, making it ideal for businesses planning future growth with minimal adjustments.

Safe and Efficient Line Connection

The TMQ includes a control cabinet equipped with connections for emergency stop and error notifications, ensuring safe and reliable integration into production lines of varying complexity. These safety features maintain uninterrupted operation and promote a smooth production process.

Customizable Add-Ons for Enhanced Functionality

The TMQ offers optional add-ons, such as feeding pump systems and custom spray gun configurations, to meet specific customer requirements. These enhancements enable efficient adaptation to unique production setups while maximizing scalability and operational efficiency.
