Single Roller Coater Experience

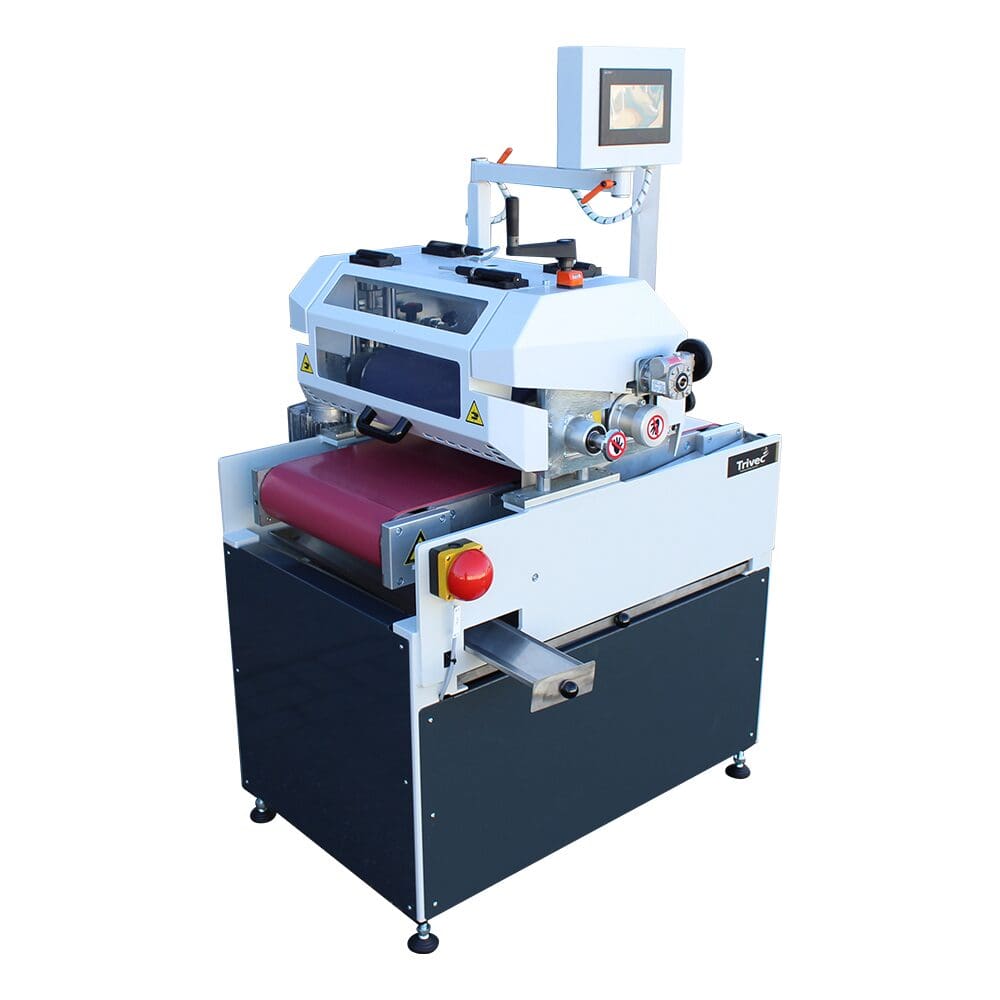

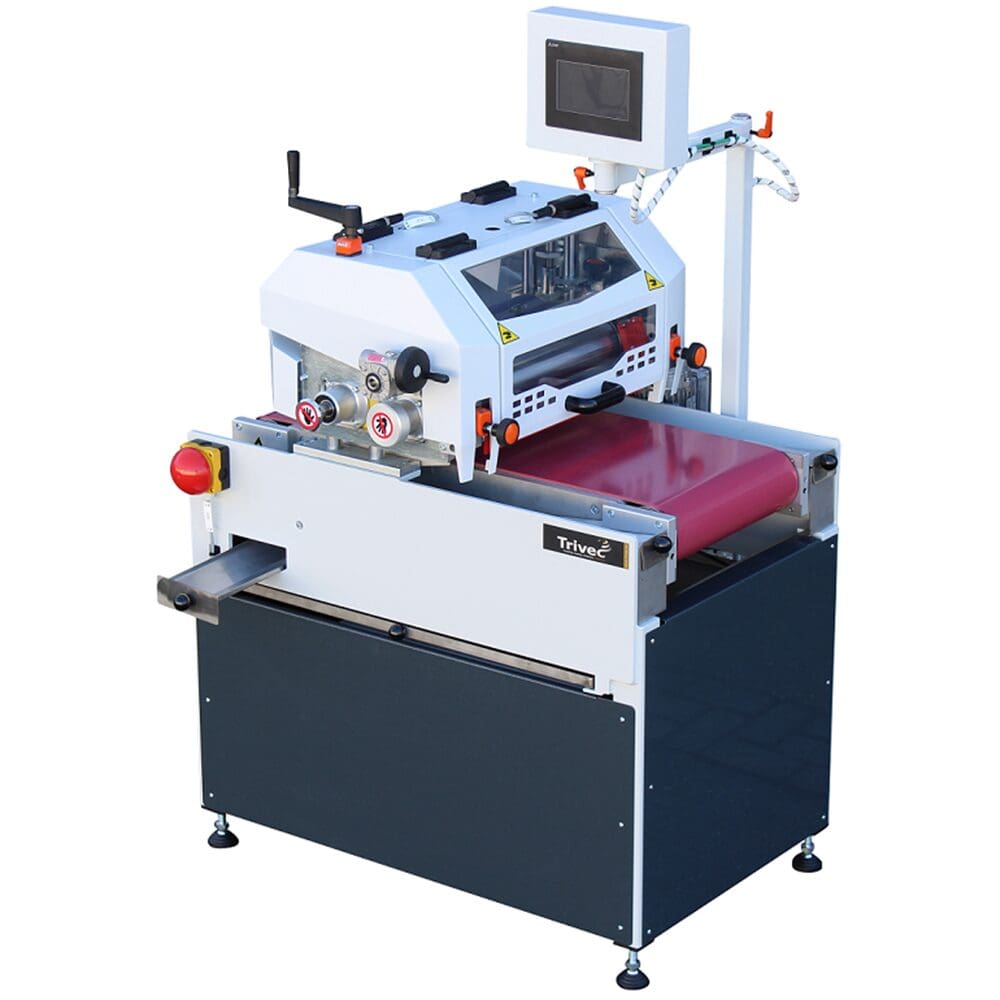

The Trivec Single Roller Coater Experience is equipped with a dosing- and application roller.

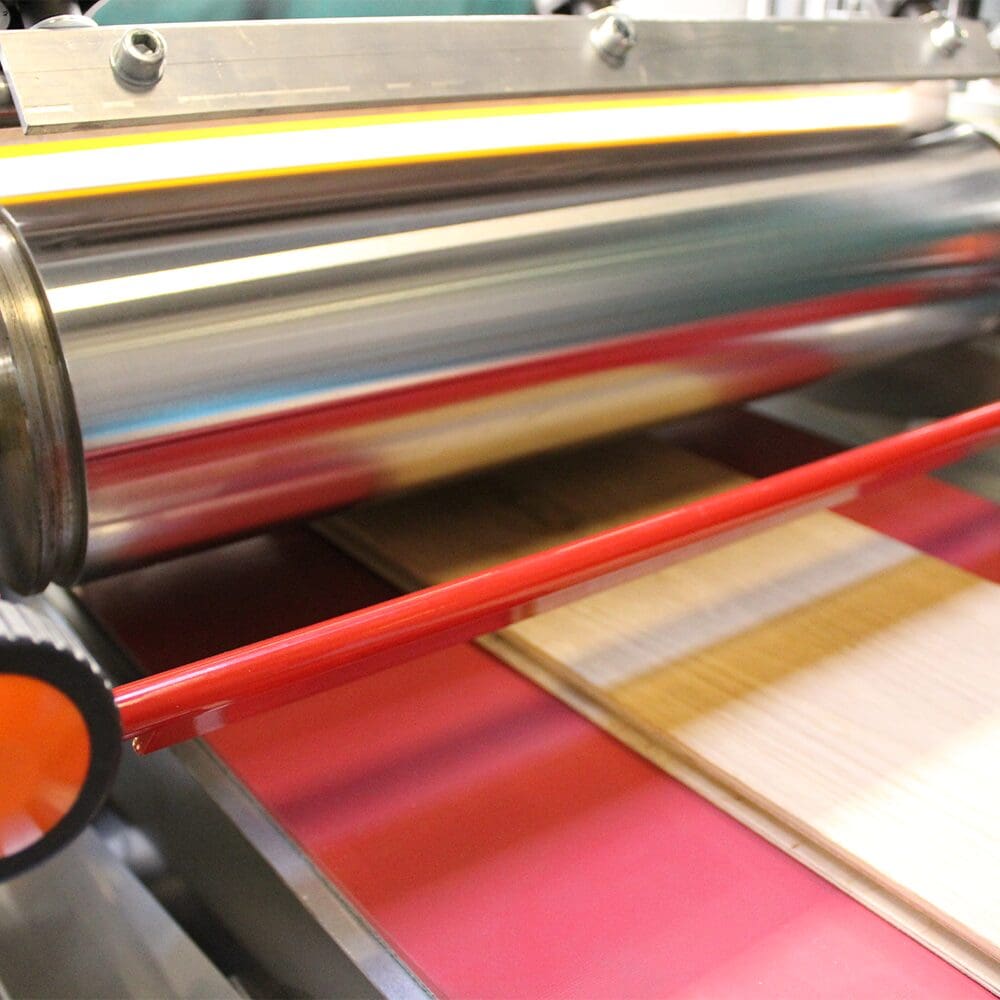

Workpieces are fed into the system by use of an integrated conveyor belt. The application can be made precisely by changing the pressure between the application- and dosing roller, the speed of the rollers and the rotational direction of the dosing roller. The application roller can be removed without the use of tools from the machine, for quick colour change or cleaning.

Optional with touchscreen, feeding pump, rail system, single reverse function and electrical height adjustment.

Benefits

Professional and compact roller coater for precisely applying coatings on flat surfaces. With special soft rollers, the machine can also be used for profiled surfaces. If you need coating on all sides then take a look at our Vacuum Coating Machine.

The Result

View the results achieved with Trivec’s Single Roller Coater Experience

Play Video

About the Single Roller Coater Experience

Applications

Parquet, Interior, and Furniture Panels: The machine delivers a flawless finish for wood, applying both base and top coatings.
Cork, Stair Treads, and Other Materials: Also suitable for oiling stair treads, finishing cork, and many other applications.
Primer for Digital Print Preparation: Can be used for applying primers prior to digital printing.
Coating of Various Surfaces: Ideal for base and topcoat applications on glass, cardboard, plastic, ceramic and concrete tiles, and even for printed circuit board applications.

Features & Functions

Dosing and Application Rollers: Ensures precise and uniform coating.
Integrated Conveyor Belt: Facilitates smooth feeding of workpieces.
Adjustable Application: Modify pressure between the dosing and application rollers, Adjust roller speeds for enhanced control, Reverse the rotational direction of the dosing roller for specific application needs.
Tool-Free Maintenance: The application roller can be easily removed without tools, enabling quick color changes or cleaning.
Touchscreen Interface: For user-friendly operation and advanced control.
Feeding Pump: Guarantees consistent material supply.
Rail System: Adds stability for precise operations.
Single Reverse Function: Enhances control for specialized coating requirements.
Electrical Height Adjustment: Provides precision for varying workpiece thickness.

Specifications

Control systems – from the switch box (touch screen optional)
Width – 750
Height – 1350
Effective working width – 400 mm
Work height – 900 mm (+20/-20 mm)
Feed through height min/max. – 4 – 40 mm
Feed through speed – 2 – 20 m/min
Ø Chromed dosing roller – 123 mm
Dosage settings – analogue readout
Integrated LED lighting – with on/off switch
Height adjustment – by use of handwheel with analogue readout
Knife – HQ with lock coupling
Conveyor belt – pletex
Marking – CE

Compatibility & Integration

Compatibility and Future-Proof Integration

The Single Roller Coater Experience is designed for seamless connectivity with both Trivec machines and equipment from other manufacturers, such as coating stations, dryers, or polishing conveyors. This ensures maximum flexibility in configuring and expanding production lines. Thanks to its future-ready design, the machine integrates effortlessly into larger production setups without the need for modifications, making it an excellent choice for scalable operations.

Safe and Efficient Line Connection

The Single Roller Coater Experience comes with a control cabinet that includes connections for emergency stop and error notifications. This allows the machine to be safely and efficiently integrated into production lines of any configuration or complexity. These features ensure both the safety and uninterrupted continuity of the entire production process.

Customizable Add-Ons for Enhanced Functionality

The Single Roller Coater Experience provides various optional add-ons to customize the machine according to specific customer requirements. Options such as a feeding pump system or a specialized roller configuration enable seamless integration into unique production environments, ensuring optimal efficiency and adaptability for future needs.
