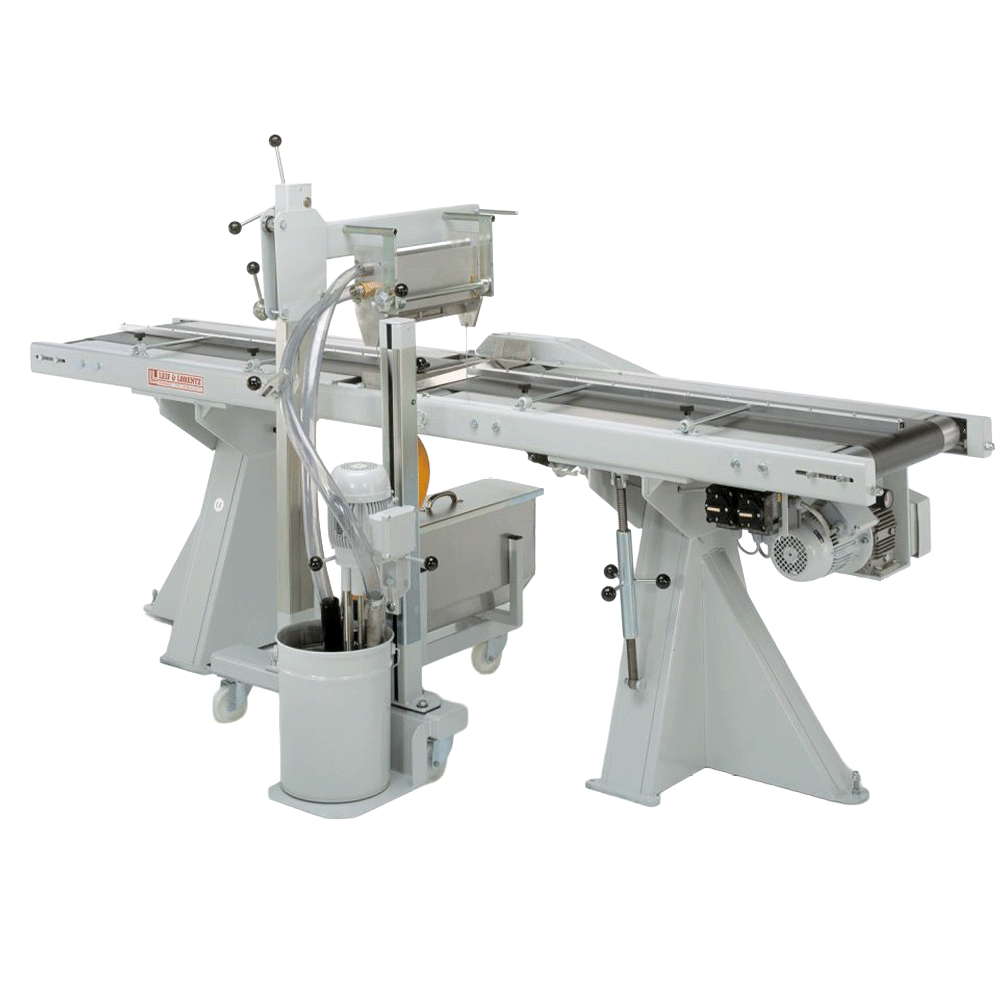

Leif & Lorentz Angled Curtain Coater – Used

The Leif & Lorentz Angled Curtain Coater is an industrial coating machine designed for fast and consistent application of coatings onto wood and other suitable workpieces.

With a 400 mm coating width and an angled conveyor system, the machine is particularly suitable for coating long wooden workpieces and profiles. Depending on the shape of the product, the angled setup makes it possible to coat two sides in a single pass.

Coating quantity and conveyor speed can be adjusted to achieve the required application result. This specific Leif & Lorentz Angled Curtain Coater is available as a used machine.

Key Benefits of the Leif & Lorentz Angled Curtain Coater

For efficient, high-speed application of lacquers wood or other surfaces. Offers precise one or two-sided coating with customizable features to suit various production needs. If you need a solution for all sides then you can look at our Vacuum coating machine.

Angled Coating Process – can enable two-sided coating in one pass, depending on the shape of the workpiece.
400 mm Coating Width – suitable for wooden profiles, lengthwise workpieces, and other suitable products.
Adjustable Coating Application – application quantity can be adjusted between approximately 50-350 g/m².
Variable Conveyor Speed – provides control over coating thickness and production speed.
Removable Coating Head – provides easy access for cleaning and maintenance.
Coating Recirculation – excess coating is collected, filtered, and returned to the coating supply during operation.

The Result

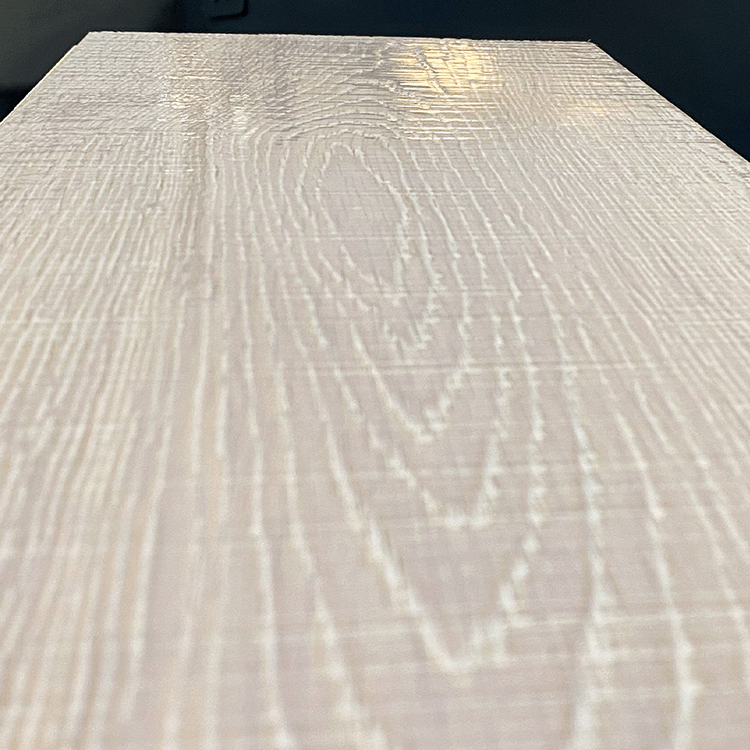

View the results achieved with the Angled Curtain Coater.

About the Leif & Lorentz Angled Curtain Coater – Used

Applications

The Angled Curtain Coater is particularly suitable for the coating of long wooden workpieces, profiles, mouldings, and other lengthwise products.

The machine can also be used for suitable applications on other materials such as metal, glass, and plastics. The coating itself must be suitable for curtain coating to ensure a stable and consistent coating curtain.

Features & Functions

400 mm Curtain Coating Head – creates a continuous coating curtain for consistent application across the workpiece.
Angled Conveyor System – positions the workpiece at an angle through the coating curtain and can allow two sides to be coated in one pass.
Variable Conveyor Speed – allows the applied coating quantity to be adjusted. A higher conveyor speed results in a thinner coating layer, while a lower speed increases the applied amount.
Adjustable Coating Flow – coating flow and the opening between the coating lips can be adjusted to create a stable coating curtain.
Removable Coating Head – designed for easier cleaning and maintenance after production.
Integrated Coating Pump – continuously feeds coating from the container to the coating head.
Return and Filtration System – excess coating is collected and returned through the filtration system for recirculation.
Suitable for Long Workpieces – the angled layout is particularly useful for processing profiles and other lengthwise wooden products.

Specifications

Manufacturer: Leif & Lorentz
Maximum coating width – 400 mm
Coating application – 50-350 g/m²
Feed through speed – approx. 30-150 m/min
Conveyor angle – 30°
Work height – 800 mm
Total length – 3000 mm
Weight – approx. 400 kg
Conveyor motor – 0.75 kW
Coating pump motor – 0.75 kW
Noise level – <80 dB(A)
Marking – CE

Compatibility & Integration

Standalone Coating Machine

The Angled Curtain Coater can be used as a standalone machine for efficient and controlled coating of wooden profiles and other suitable workpieces.

Infeed and Outfeed Integration

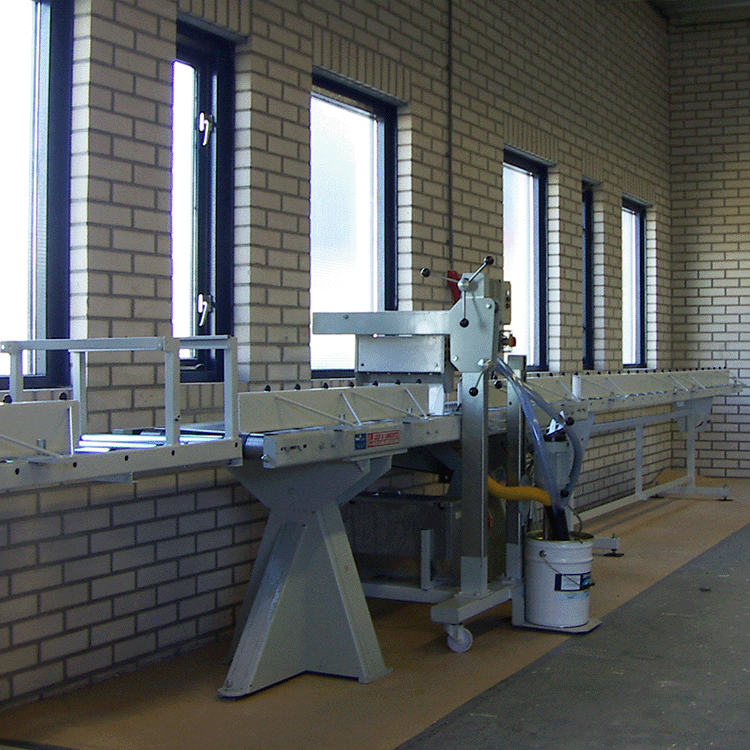

The machine can be combined with angled infeed and outfeed roller conveyors to support longer workpieces before and after coating. These conveyors can be aligned with the angle of the coating machine for a smooth and controlled product flow.

Flexible Coating Setup

Conveyor speed, coating flow, and coating head settings can be adjusted to suit different workpieces and required application quantities. This provides flexibility for different coating processes and production requirements.
