Standard+ (UV) line

For wood texturing, precise UV lacquer or paint application, and rapid UV curing in a single pass, ensuring advanced coating and finishing.
Brushing machine db600b4 result Brushing machine db600b4 result
Reactive stain brushed parquet flooring Reactive stain brushed parquet flooring

The Standard+ (UV) line is a versatile production system designed for advanced coating and texturing. It textures and cleans wood surfaces, applies (UV) stains or primers, (UV) oil, (UV) lacquer, and cures it instantly in case of a UV curable finish. This process allows for unique designs and rapid readiness for further handling.



The system works seamlessly: a roller conveyor feeds and aligns the product, while a brushing machine textures the surface and an extraction system handles the dust. The brushing conveyor then cleans the textured board before the Double Coater applies the finish in a precise and even layer. The Polishing Line polishes, distributes the coating, and removes any residue. Finally, the UV dryer instantly dries the applied layer effectively.

Technical details

Content questions? Contact us!

Type
Description
Throughput speed
2-20 m/min
Working width
400/600 mm

Inside the line

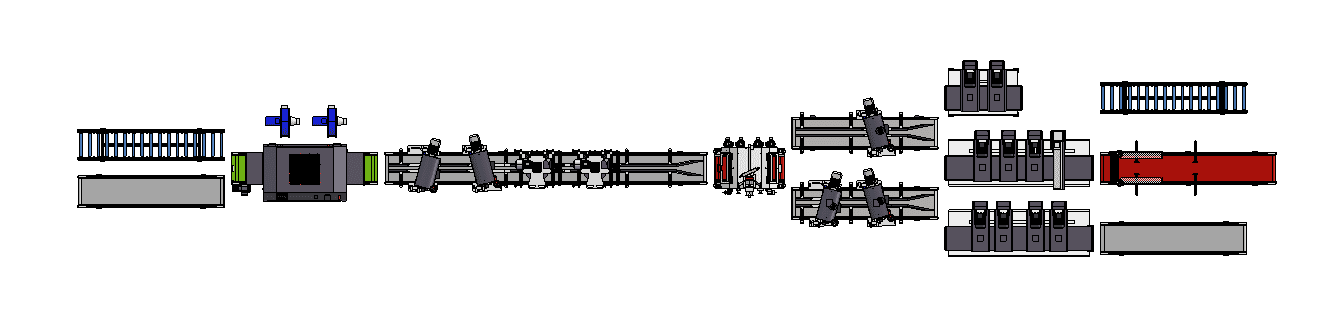

STANDARD COATING LINE e1738916600338 STANDARD COATING LINE e1738916600338

Everything at a glance

All featured machines in the Standard+ (UV)-line

Play Video

View our other lines

Specially composed and compatible machine lines, designed to optimize and accelerate your work process.

Didn't find what you were looking for?

Contact us for no-obligation advice!

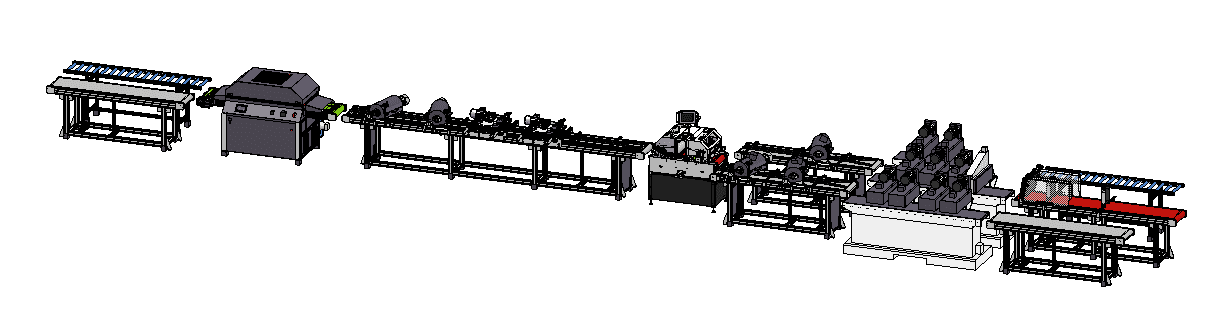

Download the Standard+ (UV) line technical drawing

Enter your email and receive a PDF of the working drawing with dimensions in mm. Don’t forget to check your spam!
