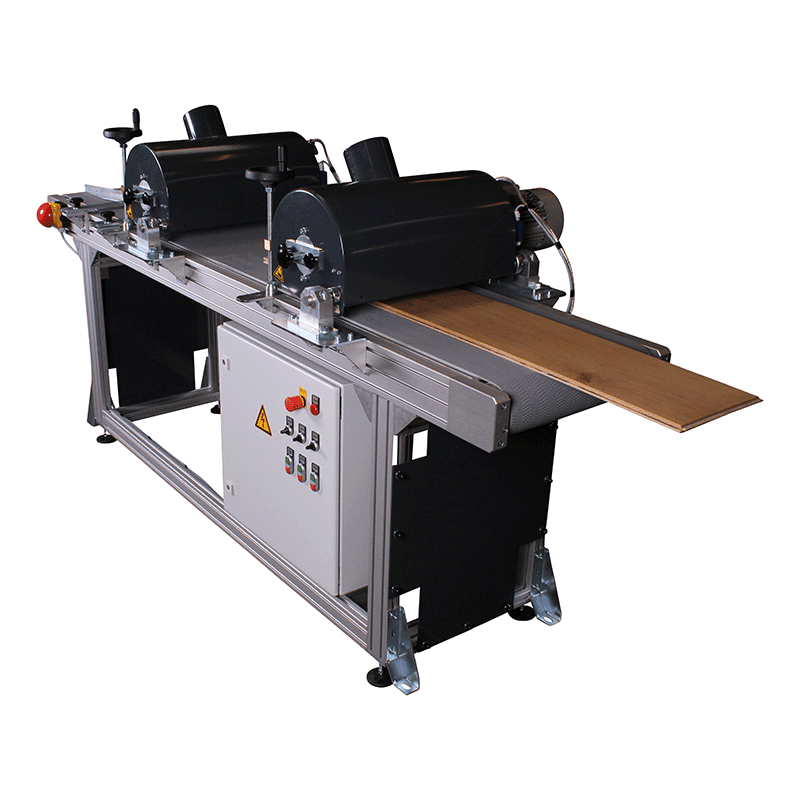

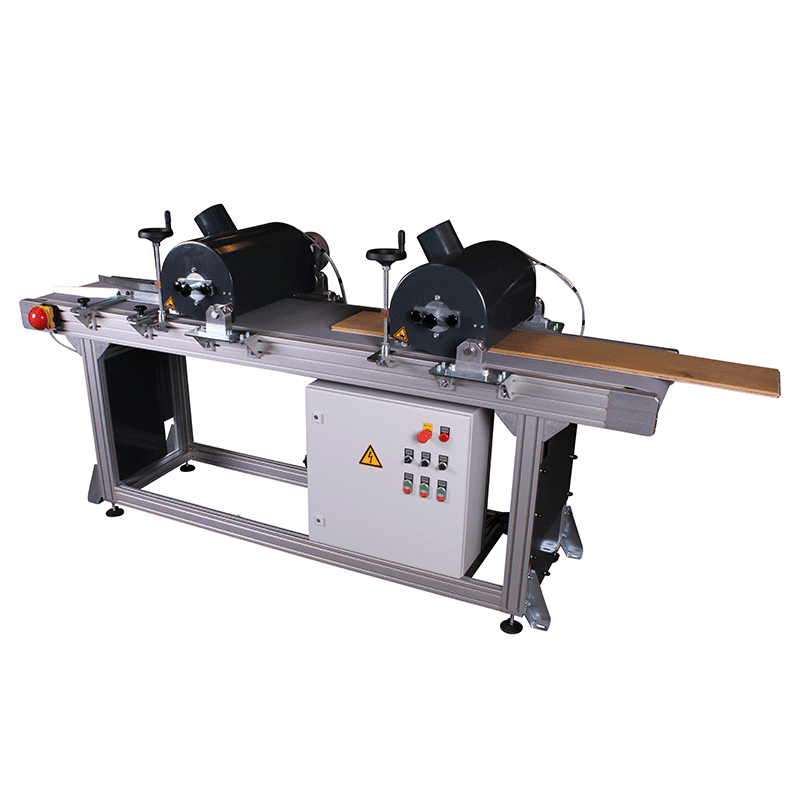

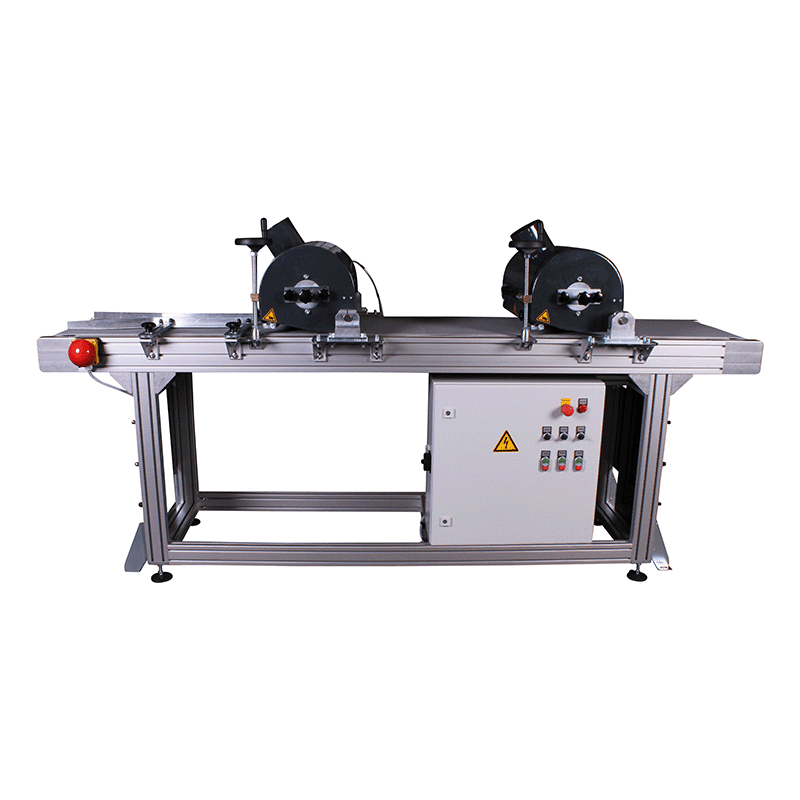

Brush Sanding Machine

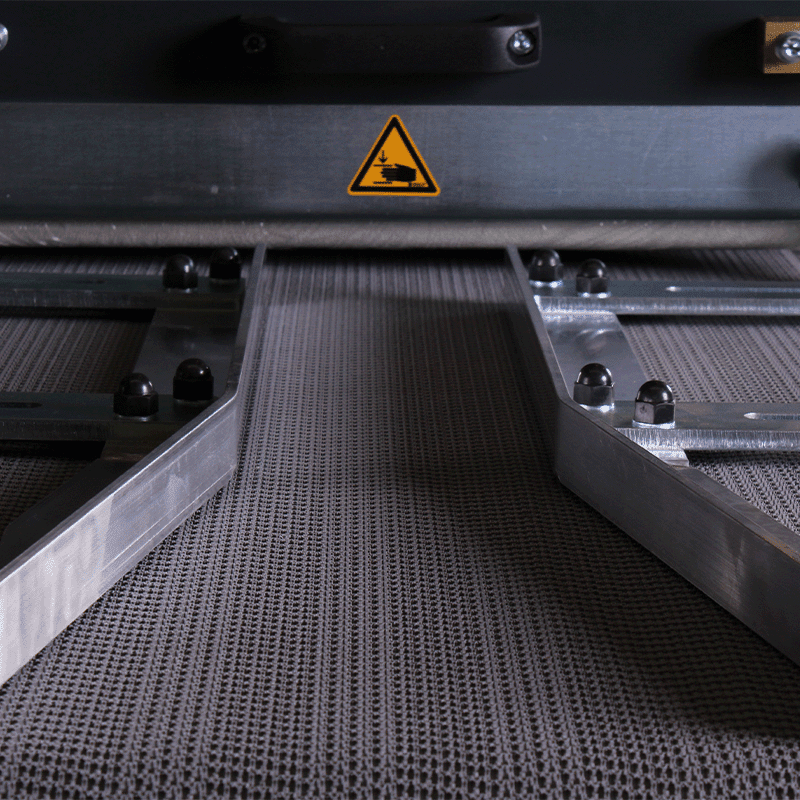

The Brush Sanding Machine offers flexibility and customizable solutions for sanding, polishing, and cleaning in your production process. Built on the Trivec Modular Concept, this machine can be tailored to your specific needs in length, width, (vacuum) belt, guidance, crunch rollers, motor drive and type of brushes.

The Trivec brushing units can also be supplied as individual units to be built onto existing systems.

Benefits

For sanding, polishing or cleaning in a production line in combination with various machines.

About the Brush Sanding Machine

Applications

Parquet Flooring: Sanding, polishing, and cleaning in combination with (UV) oiling lines.
Spraying Lines: Polishing or cleaning workpieces before or after spraying processes.
Lacquer Fall Lines: Surface treatment for workpieces before or after lacquer application.
UV Coating: Sanding and polishing of surfaces after UV coating processes.
Vacuum Coating: Surface finishing and cleaning in vacuum coating processes.

Features & Functions

Customizable Configuration: Adjustable length, width, brush types and transport components to fit specific production needs.
Adjustable Brush Units: Configurable with 1 to 6 brush units, each with height and angle adjustments for precise surface treatment.
Flexible Throughput: Supports workpieces from 4 mm to 40 mm in height, with adjustable throughput speeds ranging from 2 to 25 m/min.
Transport Length Options: Available in lengths from 700 mm to 7000 mm to accommodate a wide range of workpieces.
Vacuum Conveyor Belt Option: Ideal for smaller or lighter workpieces, providing stable and controlled transport.
Powerful Brush Motors: Available in motor options of 0.55 kW, 0.75 kW, 1.1 kW, or 2.2 kW to suit various sanding and polishing needs.

Specifications

Brush motors – 0,55 kW, 0,75 kW, 1,1 kW or 2,2 kW
Length transport system – 700 mm up to 7000 mm
Working width – 300 mm up to 1350 mm
Workheight – 900 mm (+20/-20 mm)
Throughput height min/max – From 4 up to 40 mm (customization possible)
Throughput speed – From 2 up to 25 m/min
Brush units – Configurable from 1 unit up to a maximum of 6 units
Electric connection – 400V / 50Hz (3Ph + 0 + ground)
Conduction – Optional

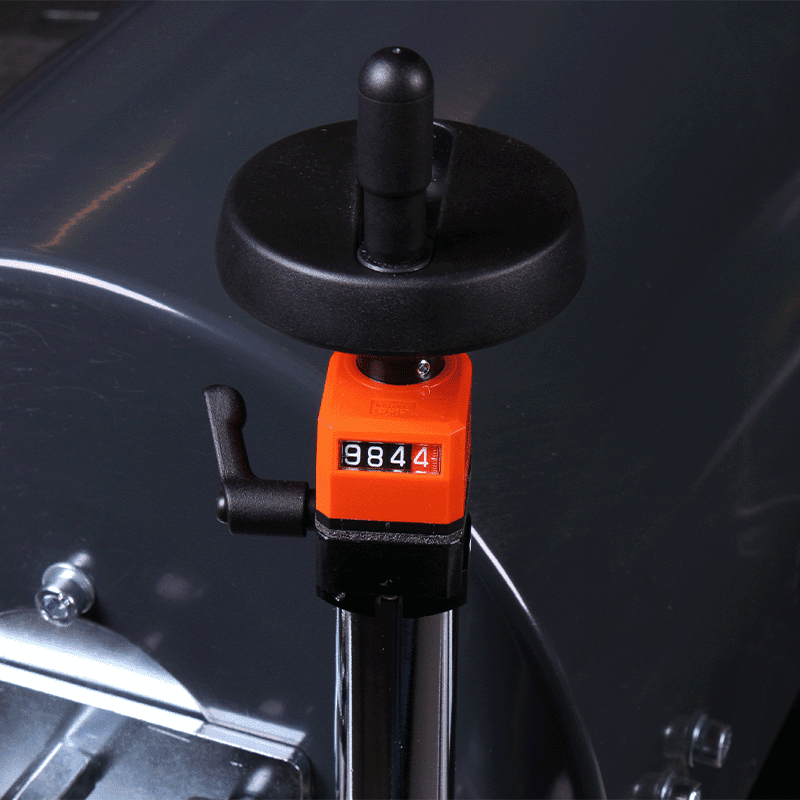

Height/angle adjustment – On each unit
Marking – CE

Compatibility & Integration

Compatibility and Future-Proof Integration

The Brush Sanding Machine is designed for seamless compatibility with both Trivec equipment and machinery from other manufacturers, such as UV oiling lines, spraying lines, lacquer fall lines, and more. Its modular design offers flexibility, allowing easy integration into existing production lines and scalability for future growth. This future-proof machine adapts effortlessly to larger setups without requiring modifications, delivering consistent performance and high efficiency across various production environments.

Safe and Efficient Line Connection

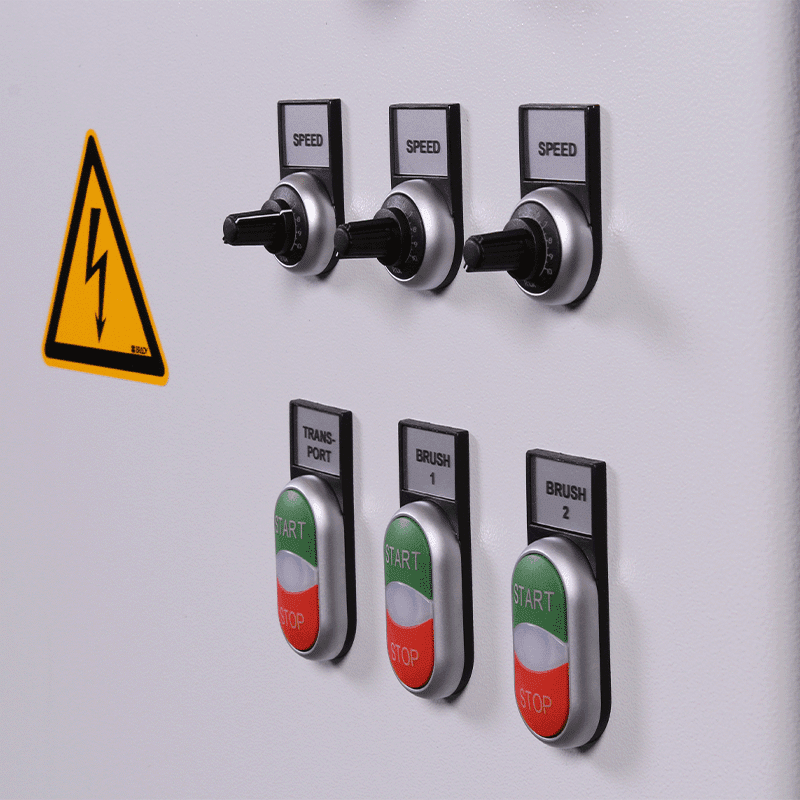

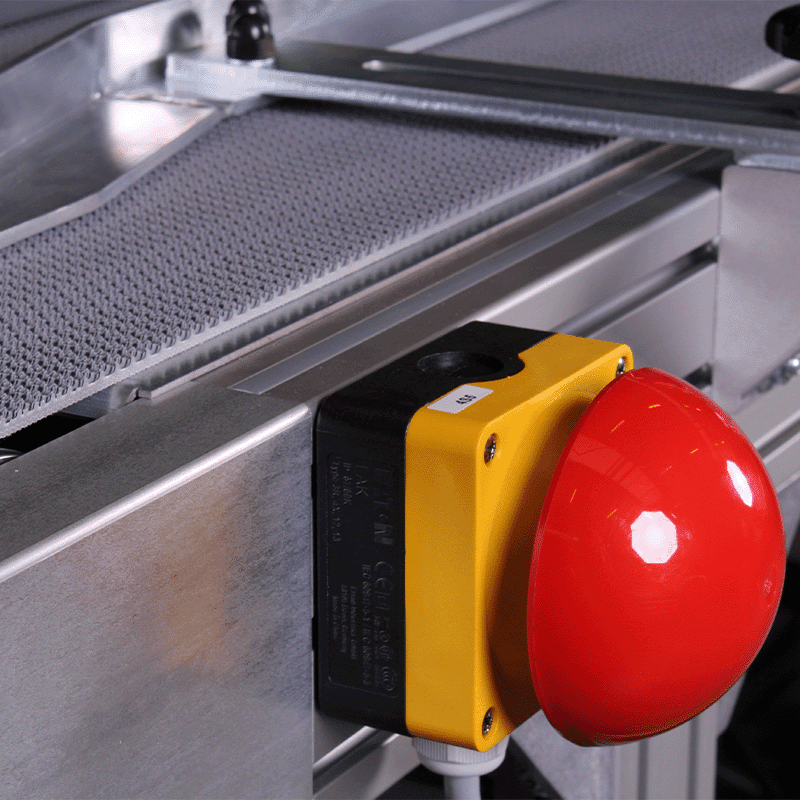

Equipped with a control cabinet, the Brush Sanding Machine offers connections for emergency stop and error notifications, ensuring both safety and reliability. These features allow for smooth integration into production lines of any complexity, safeguarding both operators and the production process. With its reliable control system, the machine ensures continuous operation, minimizing downtime and improving overall efficiency in production.

Compatibility for Diverse Production Needs

The Brush Sanding Machine is highly versatile, making it compatible with a broad range of production environments. It can be customized with a variety of brush types for sanding, polishing, and cleaning, including Tynex, brass bundle, brass spiral, Scotch Brite, and sanding brushes. This flexibility allows the machine to adapt to the specific needs of different materials and applications, providing customized surface treatment solutions for diverse production setups.
