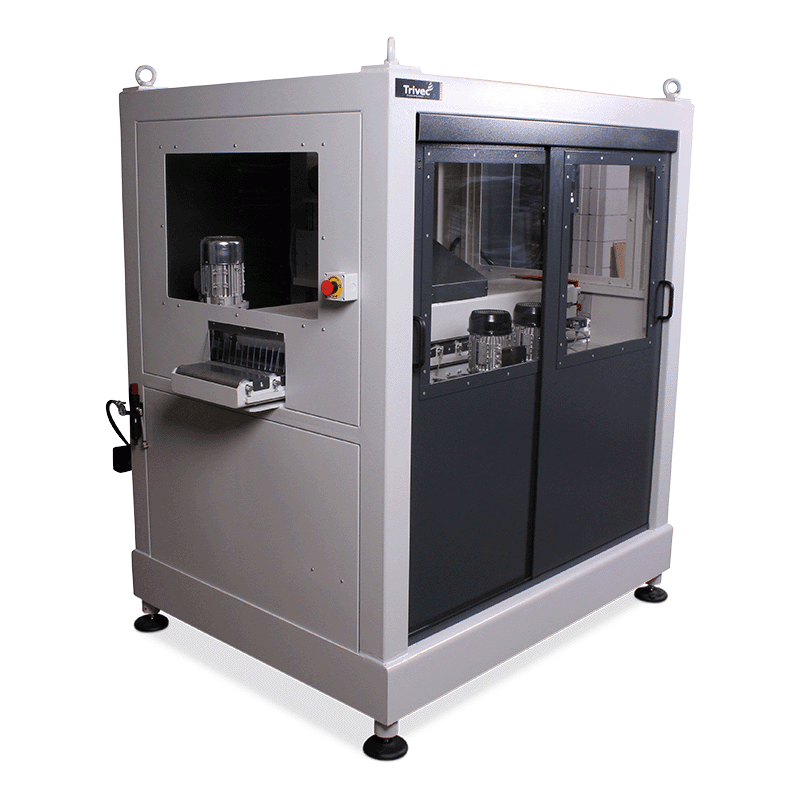

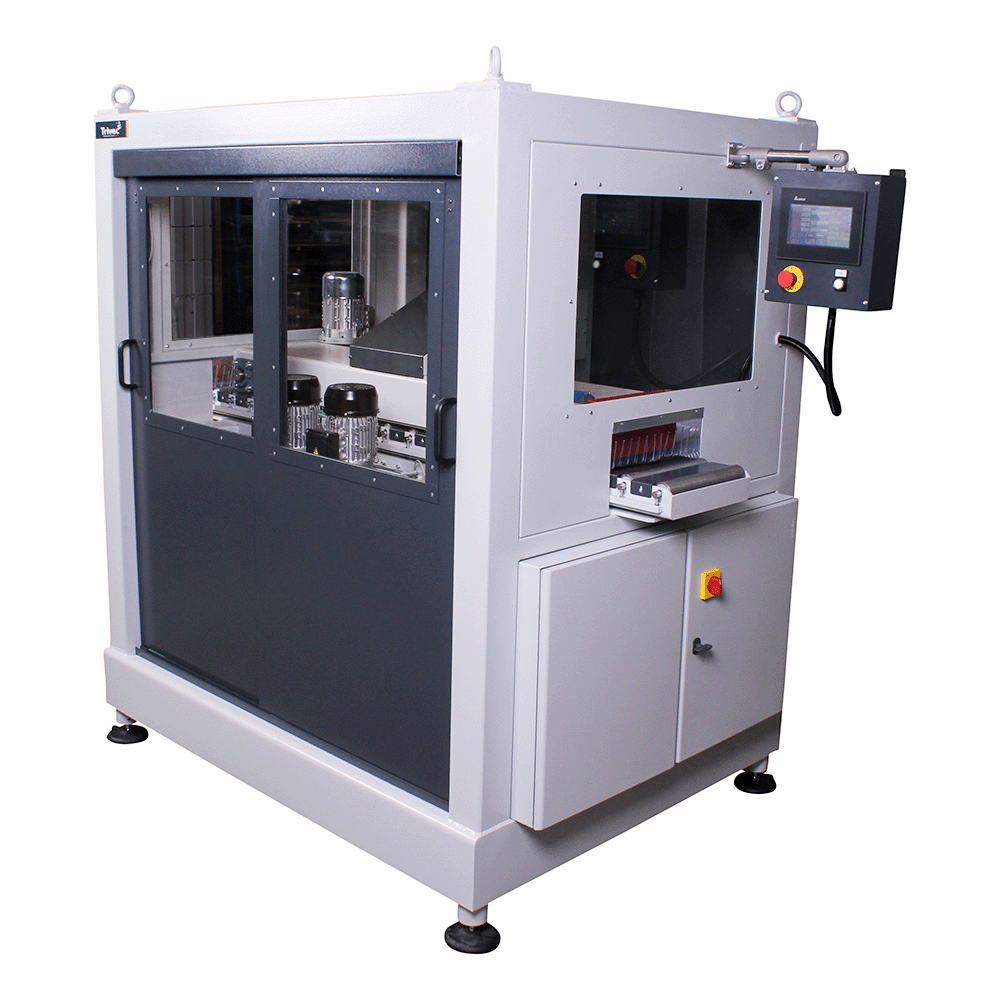

Scraper

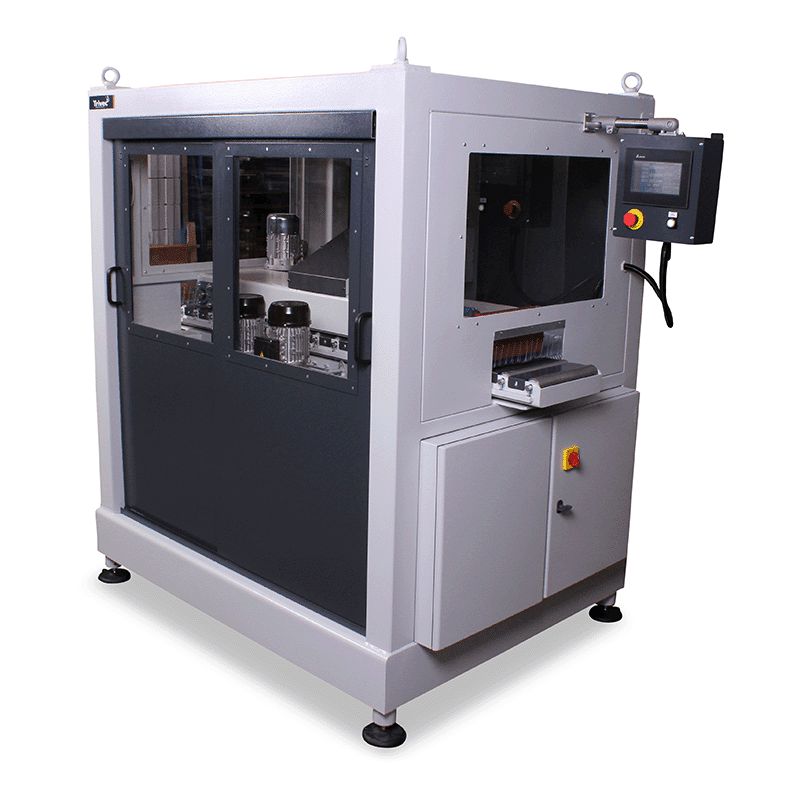

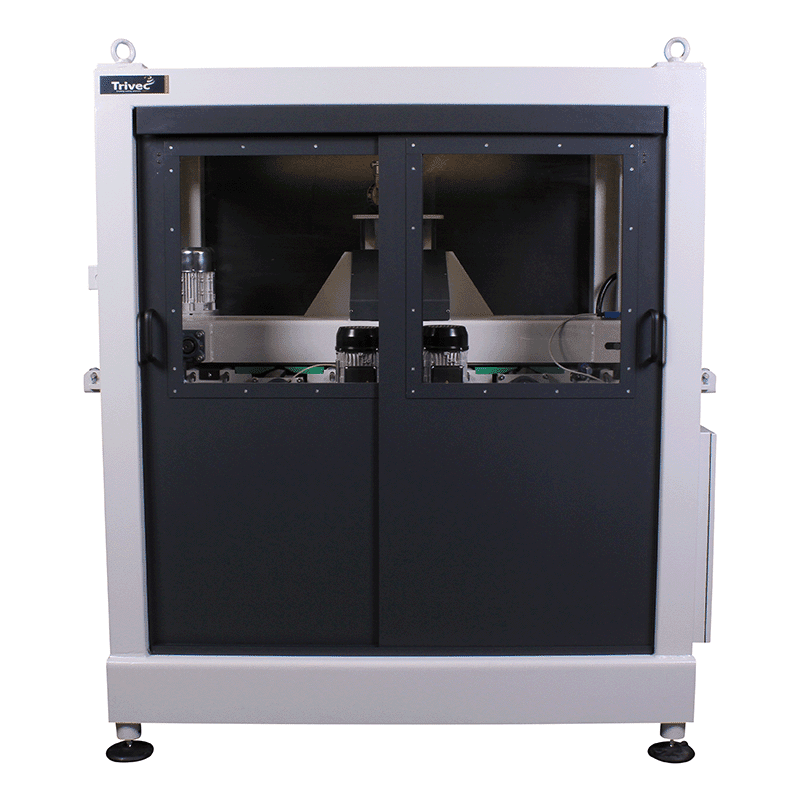

The Trivec Scraper is designed to create 3D scrape effects on wooden surfaces with the aid of two specially designed scraping units. By adjusting the horizontal and vertical oscillation speeds of both units individually, a wide range of scrape effects can be achieved, allowing for precise and customizable results. The touchscreen control panel makes it easy to save and load settings, ensuring consistent quality across production runs. The scraper is also equipped with a safety cabin and sliding doors with safety switches, providing additional protection for operators. Its versatile design allows for seamless integration into existing production lines, making it suitable for both small and large-scale operations.

Benefits

For making 3D impressions in wooden surfaces with two programmable scraper knives.

The Result

View the results achieved with the Scraper.

About the Scraper

Applications

Parquet flooring.
Exterior wood.
Furniture panels.
Wall Paneling
Stair steps.
Other similar workpieces.

Features & Functions

Two scraper units with independent oscillating systems for versatile scraping effects.
Touchscreen control for easy saving and loading of settings.
Equipped with a safety cabin with sliding doors and safety switches.
Integrated high-grip conveyor system for stable transportation of workpieces.
Pressure rollers units to stabilize workpieces, including smaller pieces.
Customizable components such as knife pressure, scraper types, and throughput speed for tailored results.

Specifications

Working width max: 300 mm
Minimal workpiece length: 300 mm
Working height: 900 mm (+20/-20 mm)
Throughput height: 4 – 50 mm
Throughput speed: 4 – 15 m/min
Scraper units: 2, with independent oscillating systems
Control: via touchscreen, with option to save/load favourite settings
Compressed air requirements: minimum of 6 bar
Marking: CE (UL optional)

Compatibility & Integration

Compatibility and Future-Proof Integration

The Trivec Scraper is engineered for seamless compatibility with both Trivec machinery and equipment from other manufacturers, such as coating stations, dryers, and polishing lines. This versatile design ensures flexible integration into existing production lines, allowing for easy expansion and upgrades. With its future-proof capabilities, the Trivec Scraper integrates effortlessly into larger production systems without requiring modifications. Its efficiency as a standalone machine also provides adaptability across a wide range of production environments, making it an ideal choice for both small and large-scale operations looking to enhance their woodworking processes.

Safe and Efficient Line Connection

The Trivec Scraper is designed with a control cabinet that features emergency stop connections and error notification systems, ensuring safety and smooth operation. In addition to these functions, the scraper is equipped with safety doors and integrated safety switches, providing an extra layer of protection. These features allow for seamless and secure integration into production lines of any size or complexity, ensuring continuous and efficient operation while prioritizing both safety and productivity throughout the process.

Compatibility for Diverse Production Needs

The Trivec Scraper is designed to be versatile, making it suitable for a variety of production environments. It offers flexibility in creating different scraping effects, allowing it to meet the specific needs of various materials and applications. The scraper integrates easily into both existing and expanded production lines, making it adaptable to different scales of operation. Whether for detailed wood finishes or larger production tasks, the Trivec Scraper can effectively handle the demands of each project.

Questions about integration with other machines?

Curious about solutions with external production systems? We’re happy to assist you!

Looking for Similar Options?

Explore other machines that could be the perfect fit for your needs.

4-Side Brushing Machine

Brushing

Rotor Brushing Machine

Brushing

Brushing Machine with oscillating disc brushes

Brushing

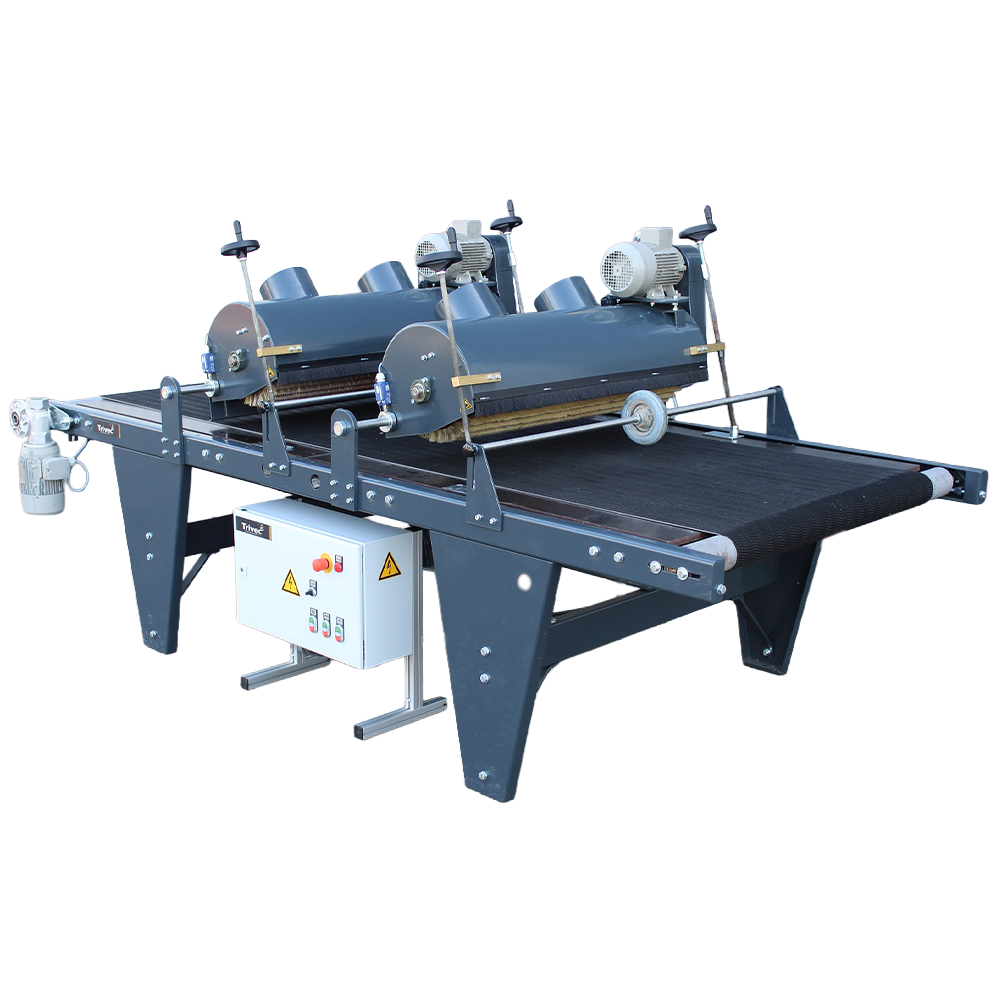

Brush Sanding Machine

Sanding

Brushing Machine with Sidebrush

Brushing

Cross Cutter Premium

Brushing

Cross Cutter – 3 brush units

Brushing

Cross Cutter – 1 brush unit

Brushing

Cross Cutter

Cross cutters

Brushing Machine Premium

Brushing

Cross Cutter occasion

Cross cutters

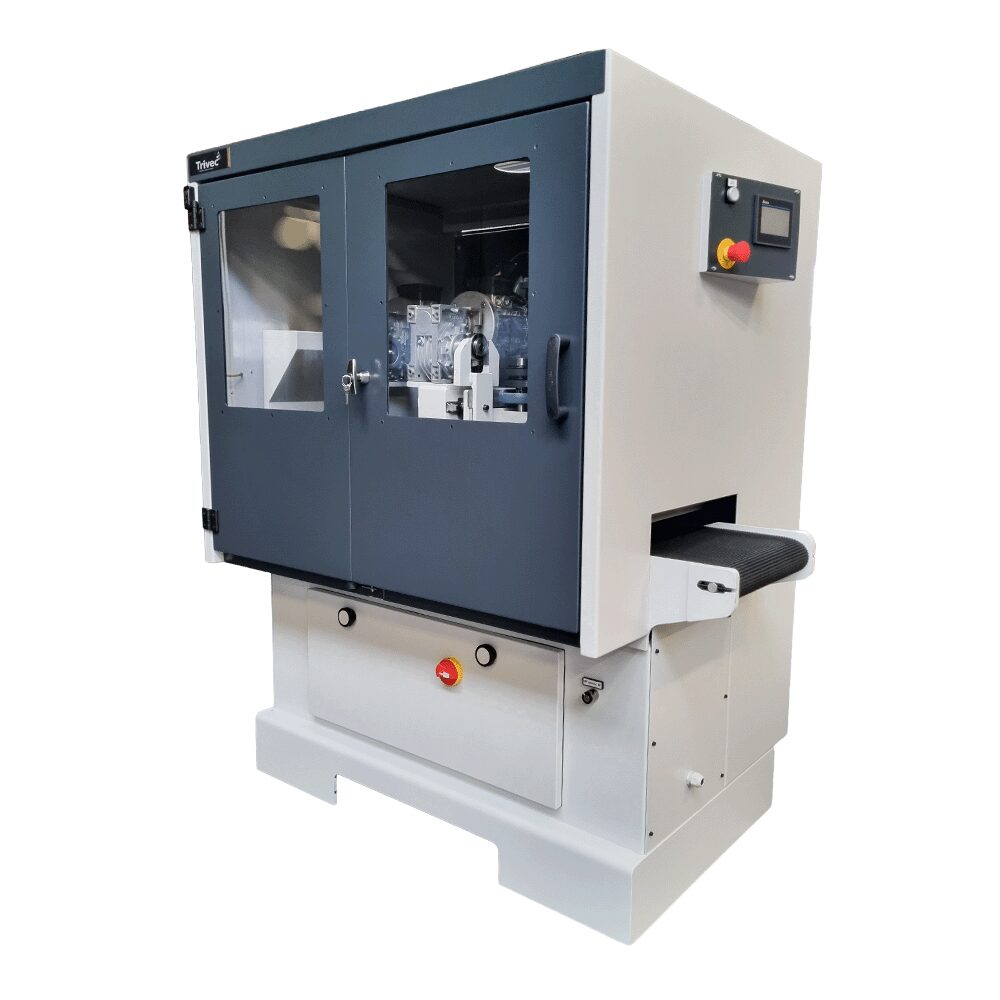

Scrub Brushing Machine
