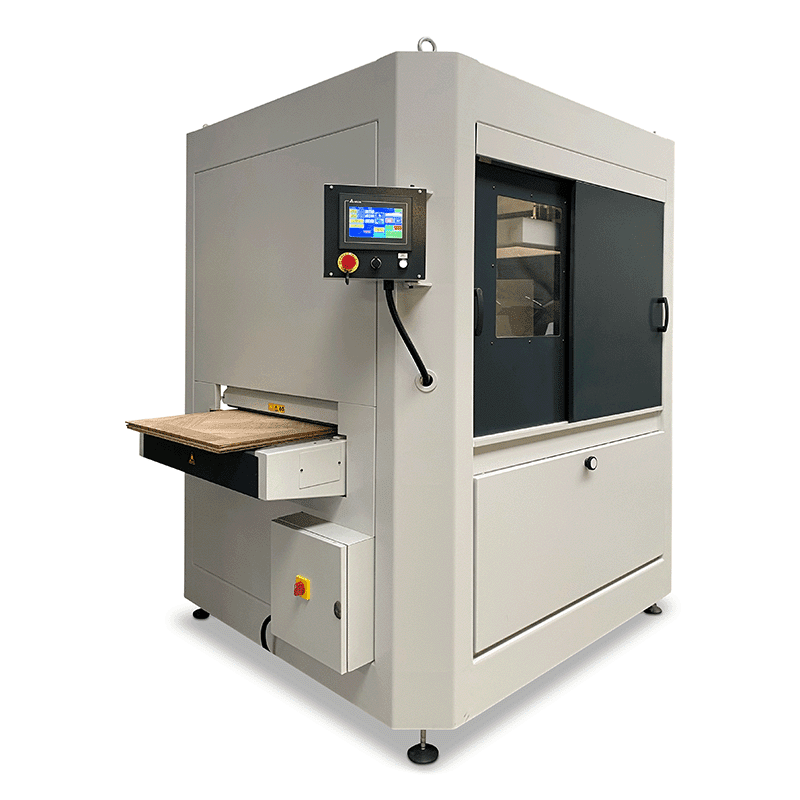

Rotor Brushing Machine

The Rotor Brushing Machine is equipped with six heavy-duty brush units that rotate around a central vertical axis, ensuring thorough brushing, structuring, and sanding of Versailles panels, parquet floors and more. Each brush unit operates in alternating clockwise and counterclockwise directions, achieving a uniform and high-quality finish in all directions.

The machine offers adjustable settings for brush pressure, rotational speed, and main axle speed, providing extensive creative control. Workpieces are securely transported on a vacuum-equipped conveyor belt, ensuring stability during the brushing process, even for delicate or lightweight items. The brush units are compatible with a range of brush types. The quick-change brush system ensures fast and efficient replacements, minimizing downtime.

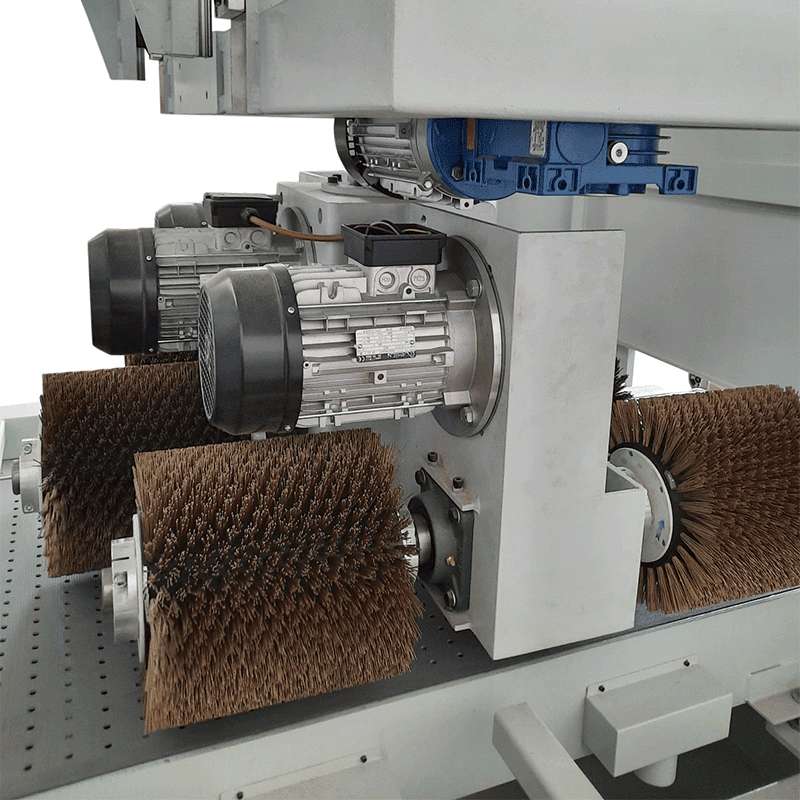

Rotor Brushing Machine Interior Brushing Engine

Benefits

For brushing, structuring, and sanding of Versailles panels, parquet floors, furniture paneling, and façade wood.

See it in action

View the video of the Rotor Brushing Machine

Play Video

About the Rotor Brushing Machine

Applications

Parquet flooring.
Furniture panels.
Stair steps.
Exterior wood.
Kitchen cabinets.
Other similar workpieces.
Aging Wooden Surfaces.

Features & Functions

Equipped with six rotating brush units for multi-directional brushing.
Alternating clockwise and counterclockwise brush rotation for uniform results on intricate surfaces.
Adjustable main axle speed and brush rotation speed for tailored effects.
Central vertical axis ensures consistent and thorough processing.
Vacuum-equipped conveyor system for secure and stable transportation of workpieces.
Quick-change brush system for efficient replacements and reduced downtime.
Heavy-duty brush motors with adjustable pressure, speed, and rotational direction for creative control.
Compatible with a variety of brush types, including Tynex, messing bundle, messing spiral, Scotch Brite, and sanding brushes.

Specifications

Working width – 800 mm
Working height – 900 mm (+20/-20 mm)
Throughput speed – 5 – 20 m/min
Brush diameter – 250 mm
Brushing units – 6 units, 3 on each side of the main axle
Electrical connection – 400V / 50Hz / 32A (3Ph + 0 + ground)
Control system – Touchscreen
Brushing speed – Adjustable
Axial speed – Adjustable
Brush direction – Adjustable, clockwise/contra-clockwise
Conveyor belt – Vacuum belt
Marking – CE (UL optional)

Compatibility & Integration

Compatibility and Future-Proof Integration

The Rotor Brushing Machine is designed for seamless compatibility with Trivec equipment and machinery from other manufacturers, including sanding stations, coating lines, and dryers. Its versatile design allows effortless integration into existing production setups and scalability for future expansions. With its six rotating brush units, it delivers consistent, high-quality results while adapting to various production environments. This flexibility makes it an excellent choice for both stand-alone use and integration into larger, complex production lines.

Safe and Efficient Line Connection

The Rotor Brushing Machine RB800B6 is equipped with a control cabinet that includes connections for emergency stop functions and error notifications. Additionally, safety switch doors are integrated into the design to ensure maximum operator safety during use. These features make the machine ideal for seamless integration into production lines of any size or complexity. The advanced control system enhances operational safety while supporting uninterrupted production by promptly alerting operators to any issues. This thoughtful design guarantees smooth integration into diverse setups, ensuring the safety and efficiency of the entire production process.

Compatibility for Diverse Production Needs

The Rotor Brushing Machine RB800B6 is highly versatile, designed to meet the demands of various production environments. Its flexibility lies in its ability to achieve a wide range of brushing effects, supported by compatibility with diverse brush types. These include Tynex, brass bundle, brass spiral, Scotch Brite, and sanding brushes, enabling the machine to adapt seamlessly to the specific requirements of different materials and applications.
