Scraper – Demo

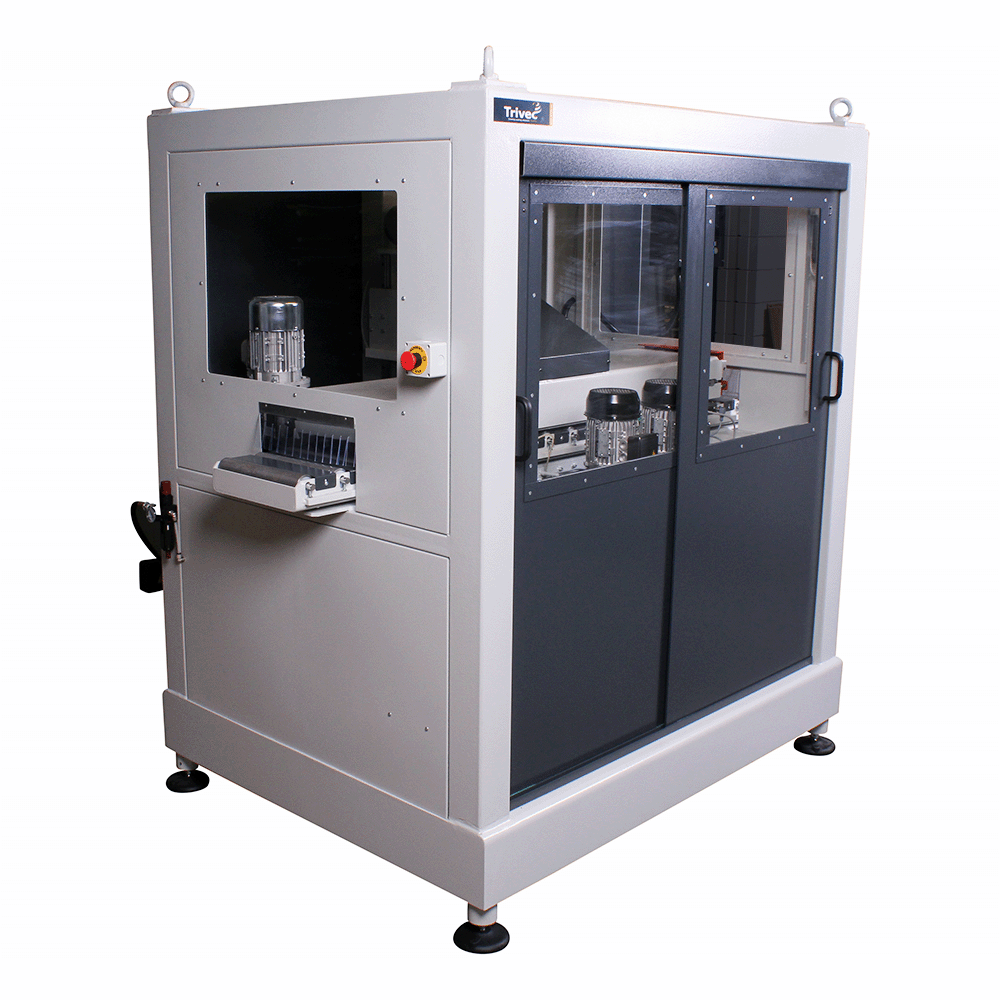

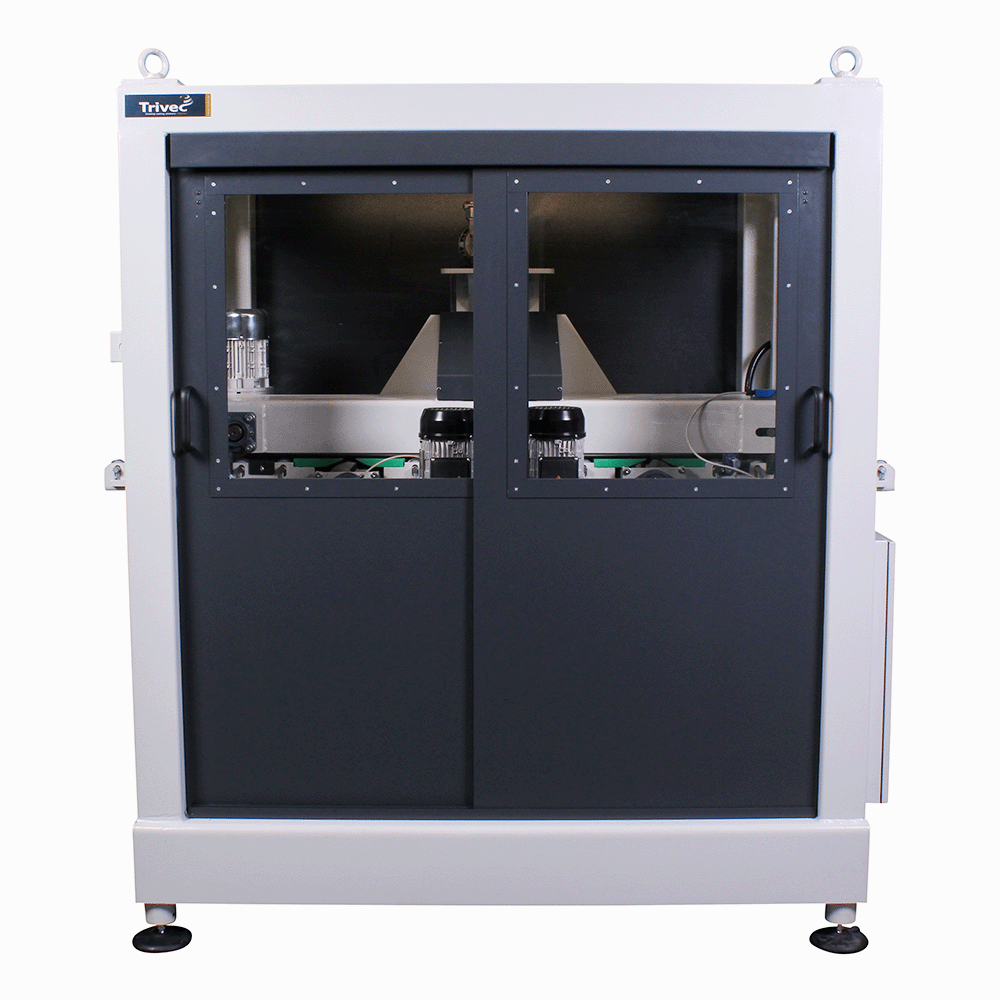

The Trivec Scraper SCR270 is a professional wood structuring machine with two specially designed cutting heads for creating authentic hand-scraped effects on wooden surfaces.

Designed for manufacturers of wood flooring, panels, and other wooden products, it offers extensive control over the appearance and intensity of the surface structure.

By adjusting the oscillation, conveyor speed, cutting depth, and knife type, a wide range of distinctive and repeatable scraped effects can be created. This specific SCR270 is a demo machine in very good condition.

Key Benefits of the Scraper

Dual Cutting Heads – create distinctive hand-scraped surface effects in a controlled production process.
Adjustable Horizontal and Vertical Oscillation – enables different patterns, structures, and levels of variation across the wooden surface.
Adjustable Cutting Depth and Conveyor Speed – provides precise control over the intensity and appearance of the scraped effect.
Different Knife Shapes and Types – allow manufacturers to develop a wide range of individual surface structures.
Programmable Touchscreen Controls – make it possible to save and reproduce preferred machine settings.
Industrial Reproduction of Hand-Scraped Effects – combines the appearance of manual structuring with the consistency and efficiency of machine production.
Demo Machine in Very Good Condition – provides an attractive opportunity to add this surface effect to an existing production process.

The Result

View the results achieved with Trivec’s Scraper

two-tone-surface-scraper-finishing-effect

About the Scraper – Demo

Applications

The Trivec Scraper SCR270 is specifically designed for creating hand-scraped effects on wooden surfaces.
Typical applications include wood flooring, wooden planks, boards, and decorative wood panels where a distinctive structured surface is required.
Different combinations of cutting depth, oscillation movements, conveyor speed, and knife design can be used to create anything from relatively subtle to more pronounced scraped structures.
The machine is particularly suitable for wood flooring manufacturers that want to create distinctive product collections with repeatable surface effects.
Once the desired result has been developed, the settings can be stored and recalled for future production.

Features & Functions

Two Cutting Heads: Two specially designed cutting heads create the characteristic scraped effect on the wooden surface. Their settings can be combined to develop a wide variety of surface structures.
Horizontal and Vertical Oscillation: Both heads can move horizontally and vertically. Changing these oscillation speeds alters the pattern and character of the final wood surface.
Adjustable Cutting Depth: The depth of the knives can be adjusted according to the desired effect. This allows the operator to control how strongly the wood surface is structured.
Variable Conveyor Speed: Feed speed can be adjusted between 2 and 10 m/min. Conveyor speed works together with the oscillation settings to influence the final scraping pattern.
Different Knife Configurations: The shape and type of knife can be changed to further vary the appearance of the surface.
Touchscreen Control: Machine parameters can be adjusted through the touchscreen. Programs can be saved and reopened, helping operators reproduce previously developed effects.
Touchscreen Height Adjustment: Machine height can be adjusted from the touchscreen to match the thickness of the workpiece.
Dust Extraction Connections: The machine is equipped with two extraction connections and is designed to operate connected to an active extraction system.
Integrated Safety Features: Safety provisions include emergency stops, a thickness safety limiter, and mechanically locked safety switches on the machine doors.

Specifications

Width – 1200 mm
Length – 1600 mm
Height – 1850 mm
Effective working width – 270 mm
Feed through speed – 2-10 m/min
Electrical connection – 400 V / 50 Hz / 32 A (3Ph + 0 + ground)
Height adjustment – From touchscreen
Extraction connections – 2 x Ø100 mm
Compressed air connection – Minimum 6 bar
Control system – Touchscreen
Condition – Demo machine, very good condition
Marking – CE

Compatibility & Integration

Compatibility and Production Line Integration

The Scraper SCR270 is suitable for integration into a mechanical production line or for use together with other machinery. This makes it possible to incorporate the machine into a larger wood structuring, finishing, or handling process.

Its integrated transport system makes the machine suitable for continuous production environments where scraping forms one stage within a complete wood finishing process.

Repeatable Surface Effects

The final appearance is determined by the combination of oscillation speeds, conveyor speed, cutting depth, and knife configuration. This gives manufacturers extensive control over the character and intensity of the scraped surface.

Once the required effect has been achieved, the settings can be saved through the touchscreen and reused for future production, helping maintain consistent results across different batches.

Flexible Effect Development

The interaction between the two cutting heads provides considerable freedom when developing new wood surfaces. By changing horizontal and vertical oscillation, feed speed, knife depth, and knife type, manufacturers can create their own characteristic scraped effects using the same machine.

The operating instructions confirm that the resulting effect is determined by the different oscillation speeds together with the feed-through rate of the workpiece.
