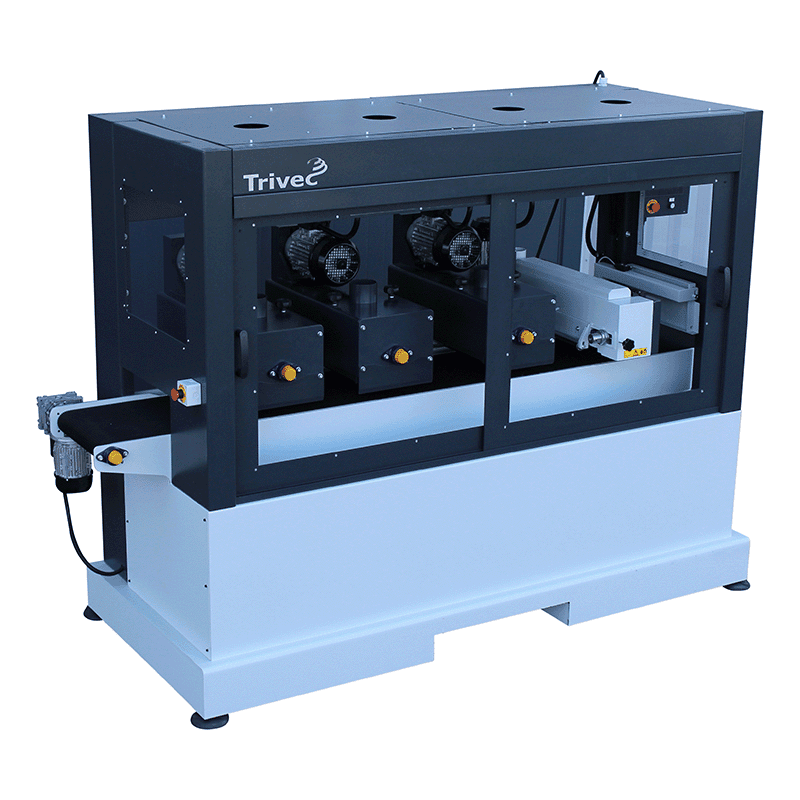

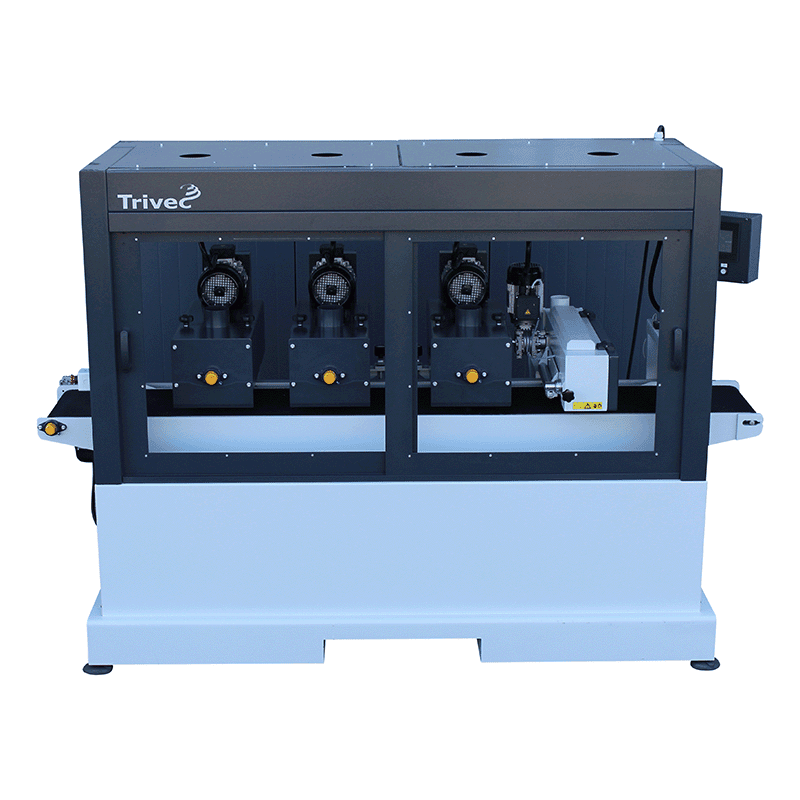

Cross Cutter Premium

Designed to create bandsaw effects on wooden surfaces, featuring a bandsaw and three brush units. The Premium version includes a cabin with windows, sliding doors, and a safety switch, ensuring a safer, dust-free environment.

With adjustable throughput speed, cross cutter speed, unit angles, brush types, and cross cutter belts, it can produce various effects. Optional Trivec Tapper System adds unique, natural effects using pneumatic shoes for random belt pressure. Equipped with a touchscreen, it allows easy adjustment and storage of settings for speed, unit height, and programs. Brushes and belts can be quickly changed.

Benefits

For the creation of bandsaw and deep brushing effects. The Premium version is equipped with a integrated cabin offering a safer and dust-free production environment.

The Result

View the results achieved with the Cross Cutter Premium

Cross-cutter-effect-parquet-planks-square

Play Video

About the Cross Cutter Premium

Applications

Equiped with the Trivec Tapper System; various pneumatic shoes push down the cross cutter belt at random intervals for creating authentic effects.

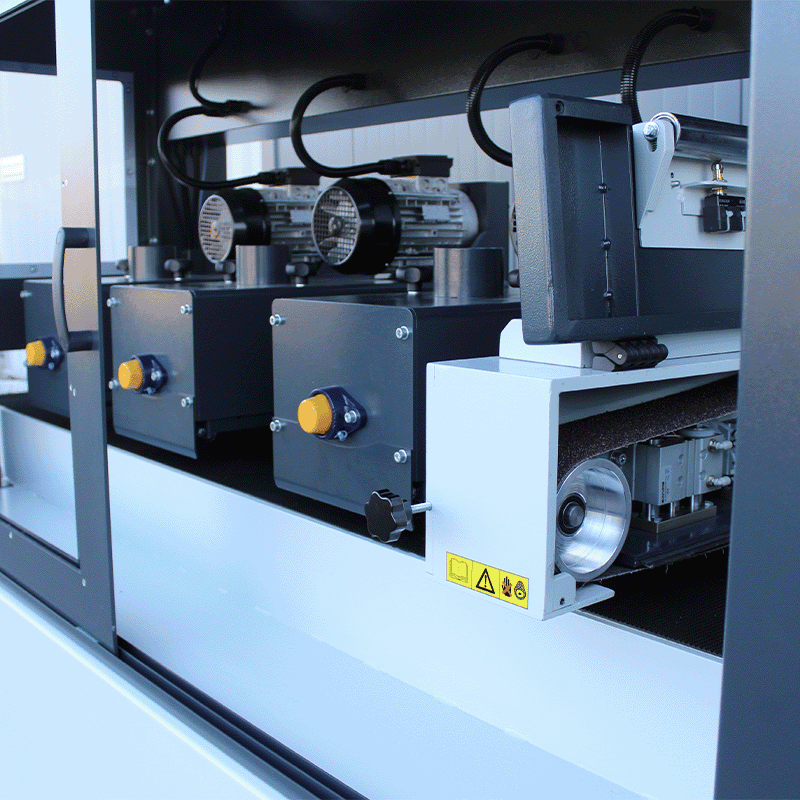

Equipped with one Cross cut unit and three brush units.

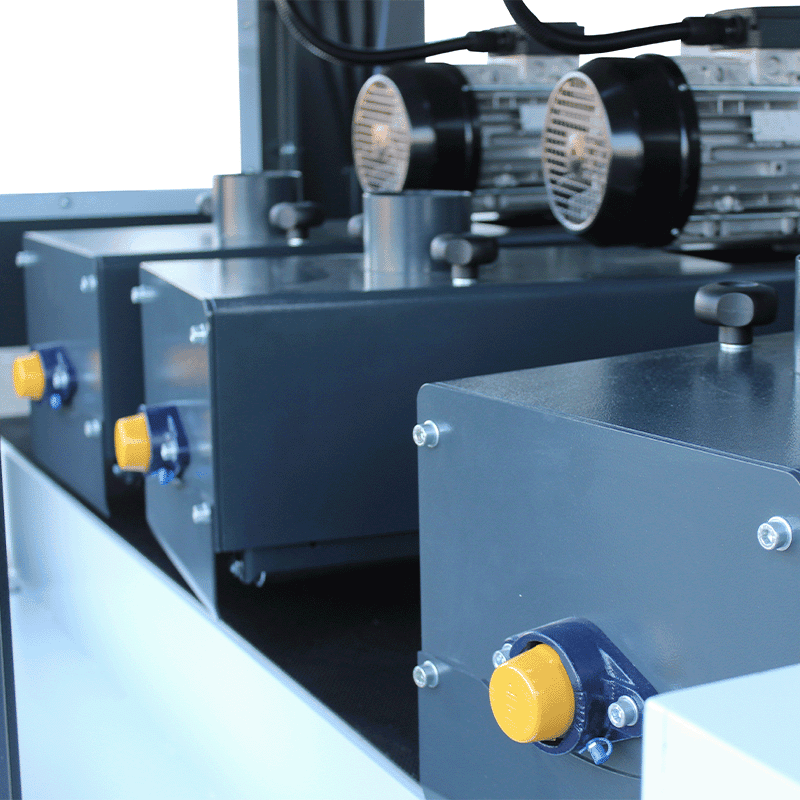

The brush units angle is adjustable for optimal sanding and deep structured wood effects.
Central height adjustment and fine adjustment setting on every unit.

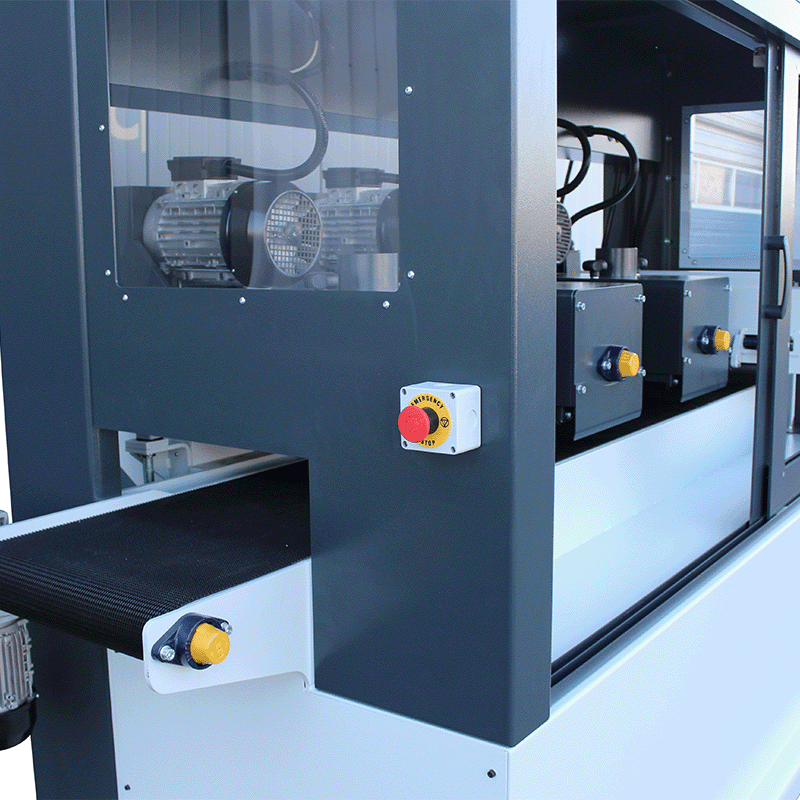

Integrated high-grip conveyor ensuring a consistent effect and maximal safety.
Pressure rollers on each unit to stabilize workpieces.
Heavy-duty brush motors with independently adjustable speeds and rotational directions for creative control.
Adjustable pressure, angle, and conveyor speed for customized results.
Wide variety of Cross cutter belts and brush types available.

Features & Functions

Parquet flooring.
Exterior wood.
Furniture panels.
Stair steps.
Kitchen cabinets.
Other similar workpieces.
Aging Wooden Surfaces.

Specifications

Working width max: 400 mm
Minimal workpiece length: 300 mm
Working height: 900 mm (+20/-20 mm)
Throughput height: 4 – 250 mm
Throughput speed: 4 – 15 m/min
Brush units: 3, with quick change system and angle adjustment
Power brush motor: 3 x 4,0 kW
Ø Exhaust connection: 3 x 100 mm and 1 x 80 mm
Control: via touchscreen
Brush speed: variable with frequency controllers on each unit
Compressed air requirements: minimum of 6 bar
Pressure rollers: 2 in each unit
Marking: CE (UL optional)

Compatibility & Integration

Compatibility and Future-Proof Integration

The Trivec Cross Cutter Premium is engineered for seamless compatibility with both Trivec systems and third-party equipment, including sanding units, conveyors, and finishing stations. Its adaptable design enables effortless customization and expansion of production workflows. With a scalable architecture, it integrates smoothly into larger production setups without requiring modifications, providing a dependable and future-ready solution for dynamic operational needs.

Safe and Efficient Line Connection

The Trivec Cross Cutter Premium features a control cabinet with integrated connections for emergency stop and error notifications. These advanced safety measures ensure seamless and secure integration into production lines of any size or complexity. By enhancing operational safety and minimizing downtime, the system delivers reliable and uninterrupted performance across the entire production process.

Compatibility for Diverse Production Needs

The Cross Cutter Premium provides exceptional versatility, making it well-suited for diverse production environments. Its flexibility lies in its compatibility with various Cross Cutter belts and brush types, including sanding, abrasive, and specialized brushes. This adaptability allows the machine to achieve a wide range of surface effects, ensuring it meets the unique requirements of different materials and applications with ease.
