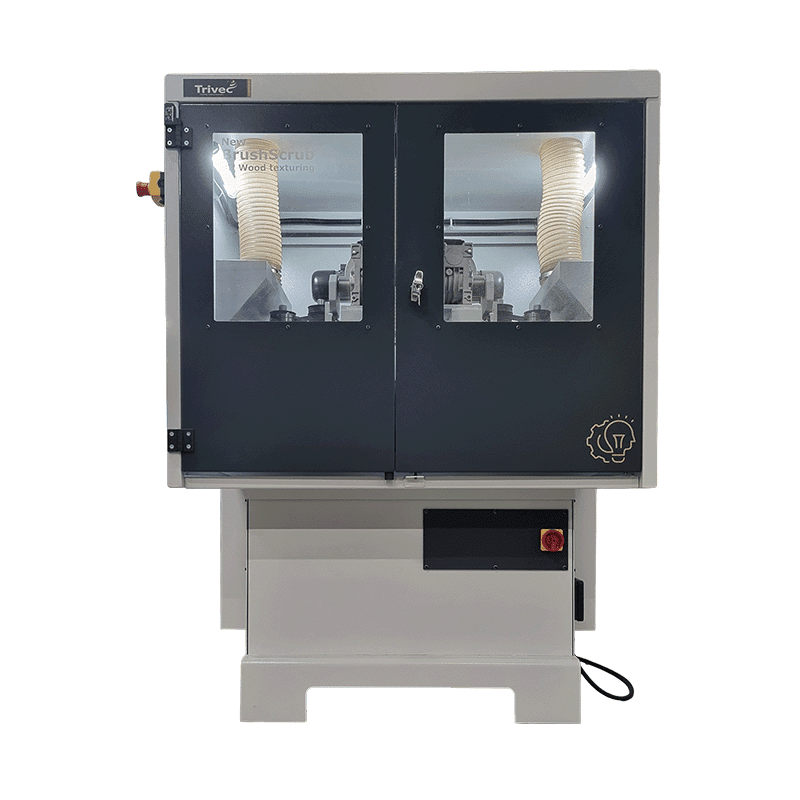

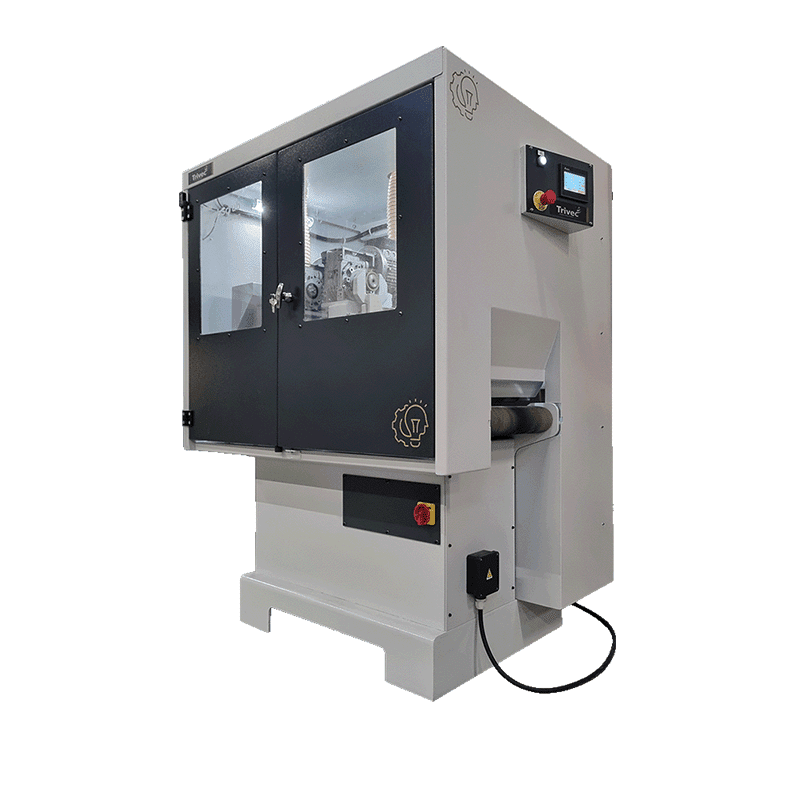

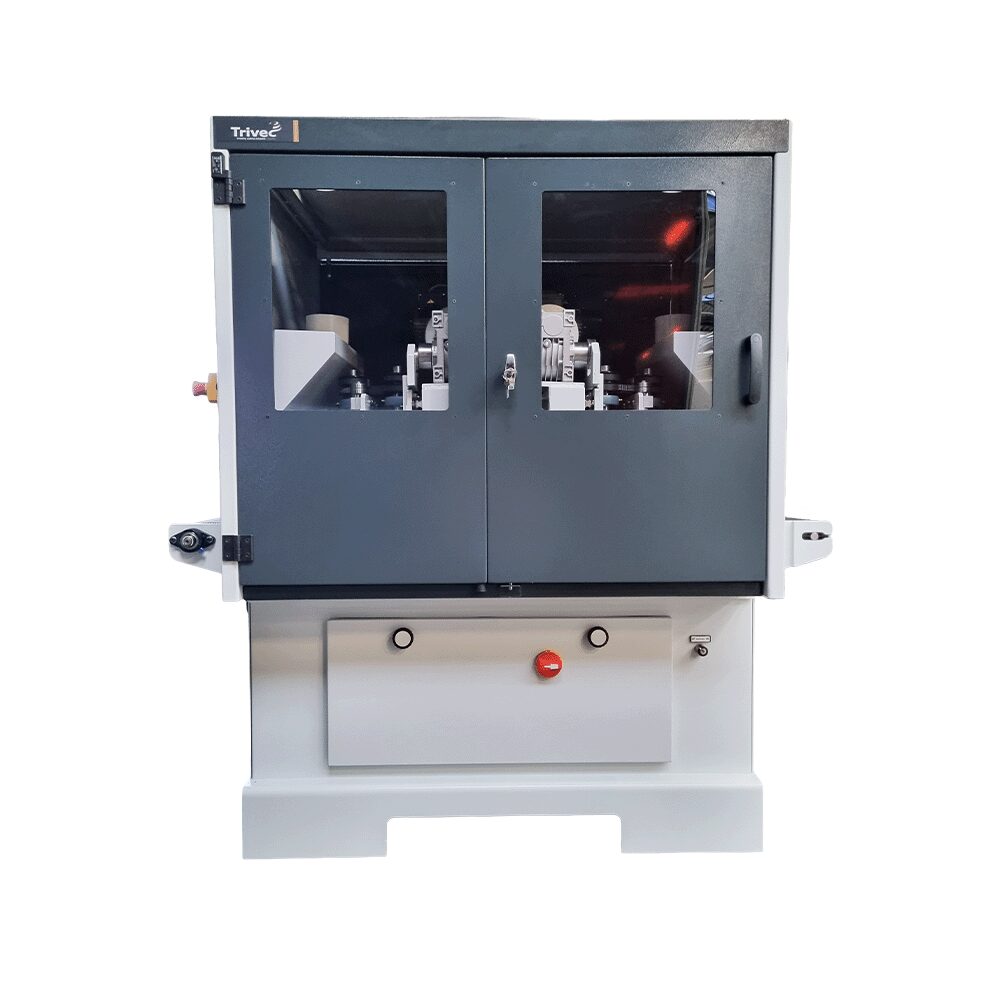

Scrub Brushing Machine

The Trivec Scrub Brushing Machine is a professional structuring machine with rotating cup brushes designed for precise creation of unique 3D wood textures on flat and profiled surfaces.

This brushing machine is made for manufacturers and production facilities in industries like flooring, interior panels, and furniture production that demand deep, consistent and natural-looking grain effects.

It solves the problem of achieving authentic tactile wood structures without unwanted polishing and delivers premium surfaces ready for immediate finishing.

Key Benefits of the Scrub Brushing Machine

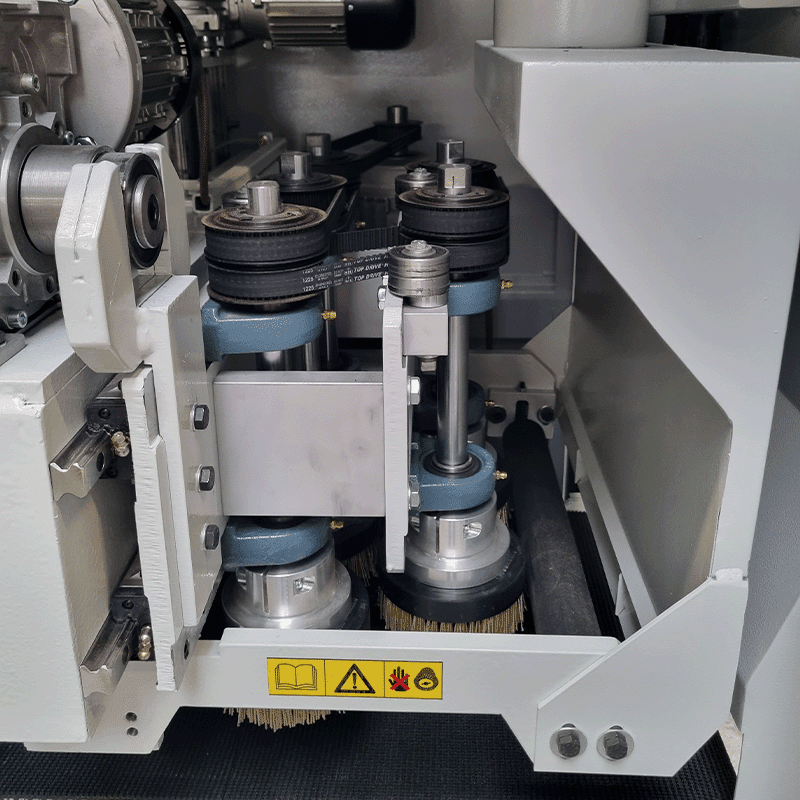

Oscillating scrub brush stations → create a uniform, natural brushing texture with a subtle rounded finish, resulting in a distinct 3D feel.

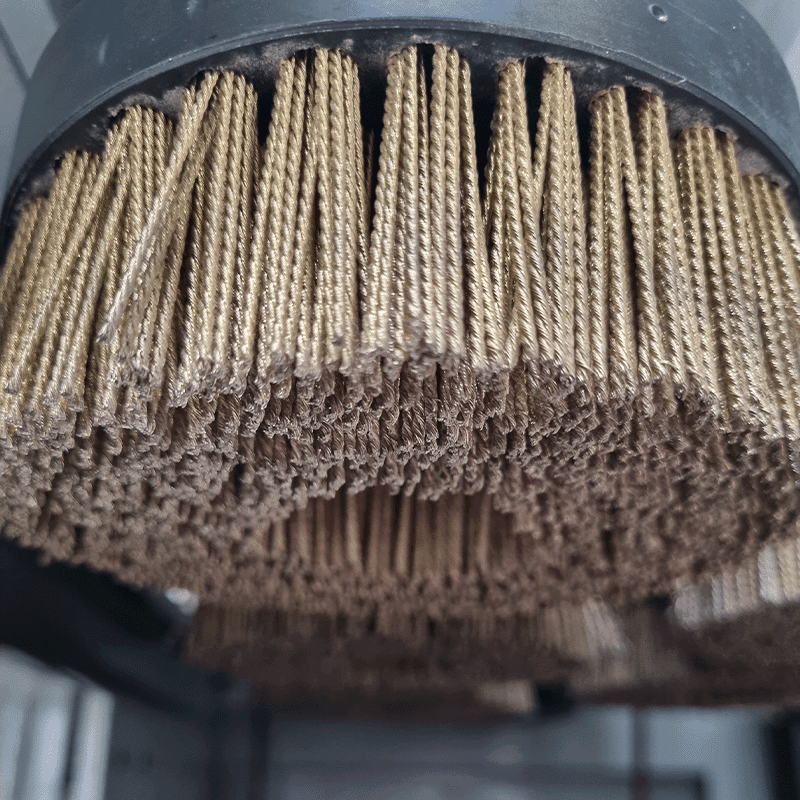

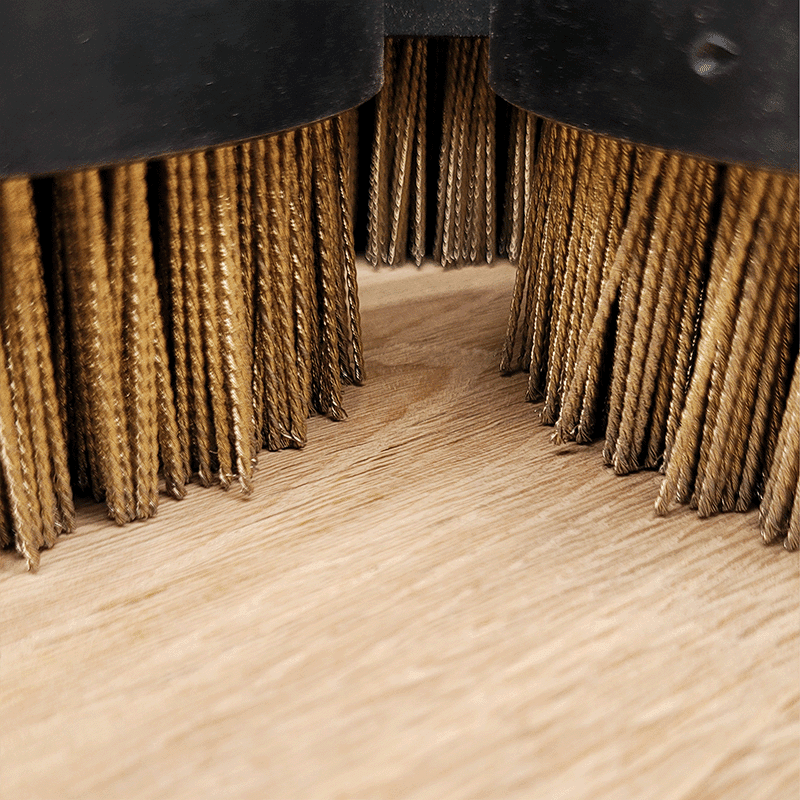

Brass disc brushes → provide powerful grain-opening texture without the polishing effect sometimes seen with other brush types.
Optional rear brush units → allow for refining the surface and perfectly completing the desired effect for a flawless finish.
Modular design → allows customization of the machine with 1, or 2 rear brush units to perfectly match specific material, desired texture, and production capacity.
High-grip transport belt with pressure rollers → ensures stable workpiece feeding, even for smaller pieces.
Powerful drive and adjustable speeds → guarantee consistent quality output, even at higher production volumes.

The Result

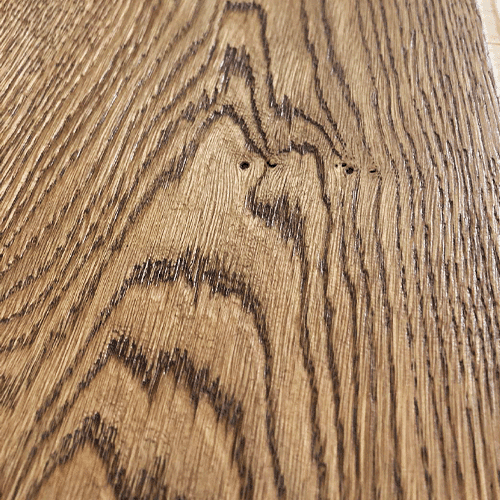

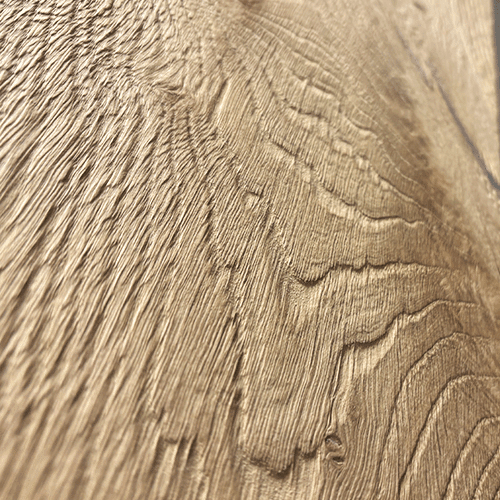

View the results achieved with Trivec’s Scrub Brushing Machine

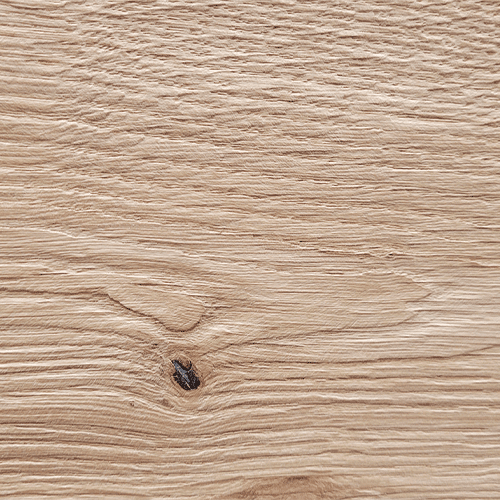

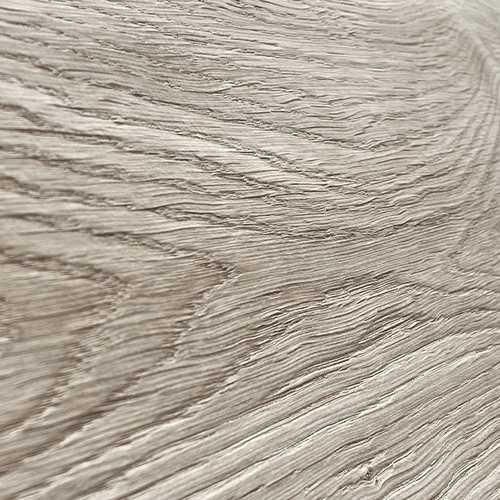

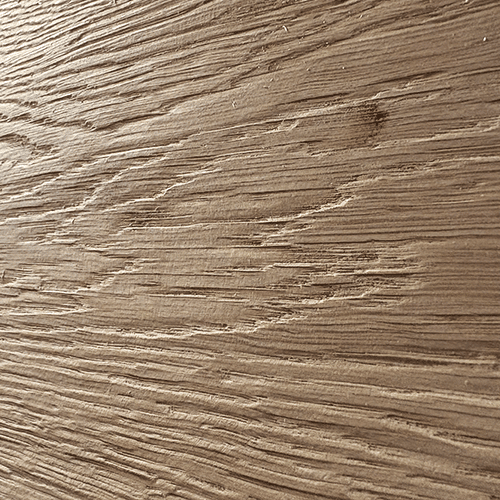

Light-structured-effect-rotor-cup-brushing

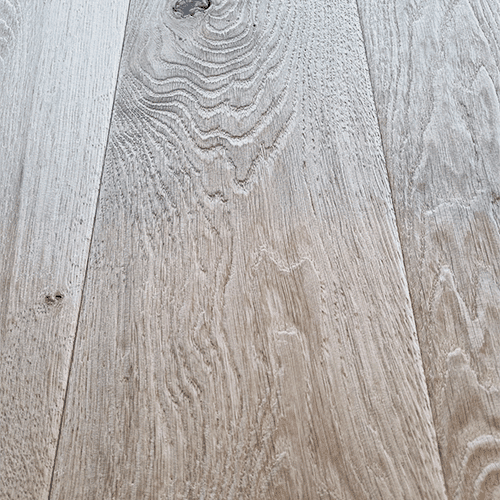

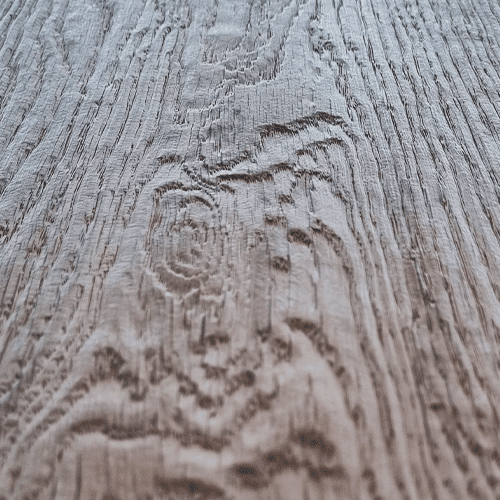

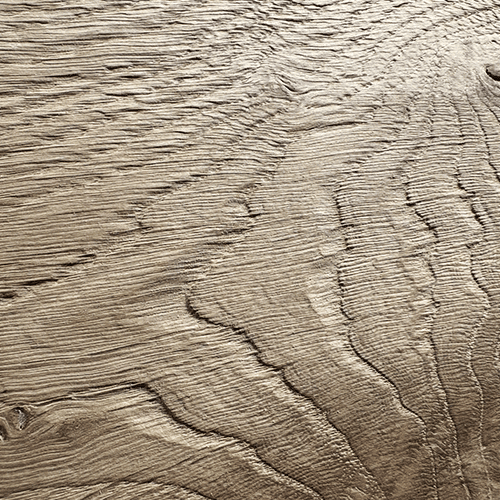

light-and-deeper-3D-effects-with-natural-groove-rotor-cup-brushing

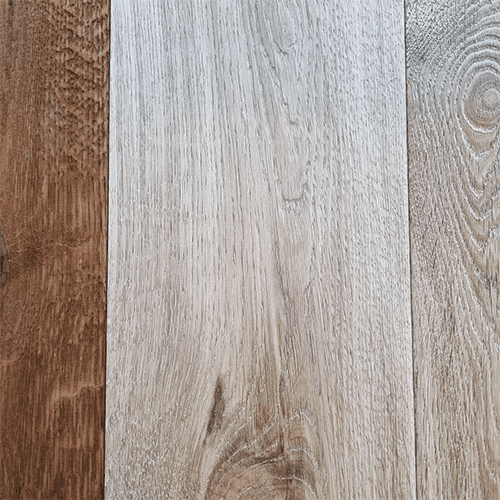

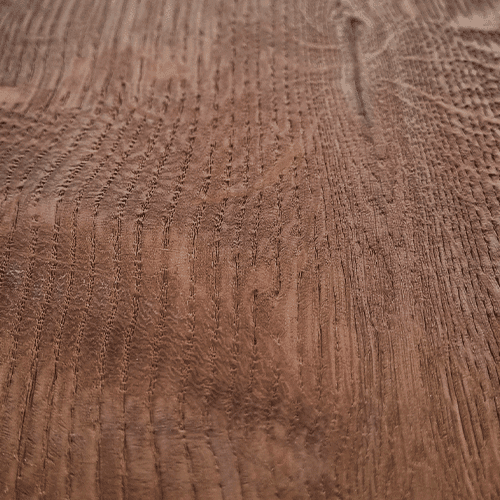

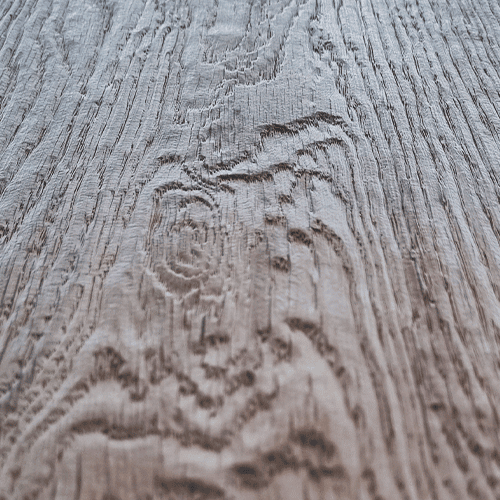

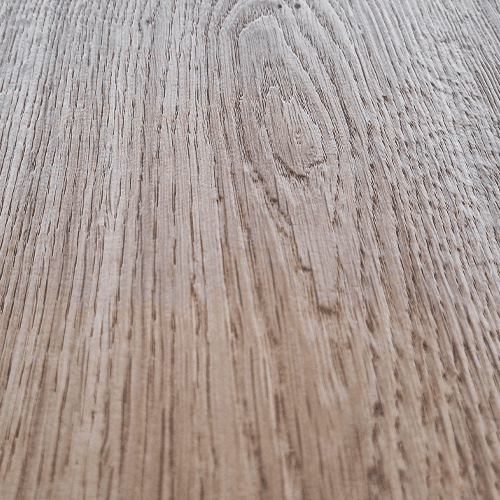

Deep-effect-with-coating-rotor-cup-brushing

Play Video

About the Scrub Brushing Machine

Applications

The Trivec Scrub Brushing Machine is developed for structuring and rusticating wooden workpieces, effectively removing softer wood to make the natural grain more visible and tactile.
Parquet and floorboards
Wooden panels and interior parts
Facade and exterior wood/applications requiring texture
Profiles and solid wood components

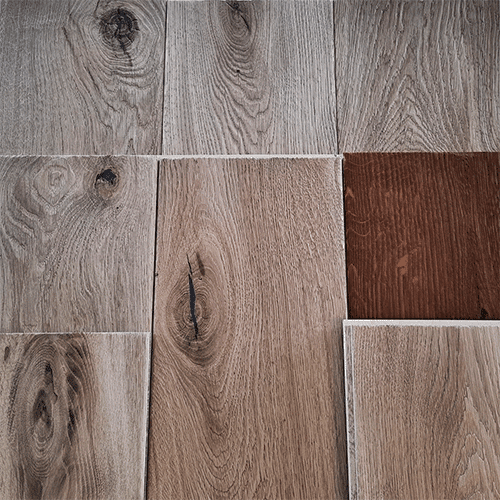

The extensive adjustment possibilities allow for multiple texturing and styling options with a single machine.

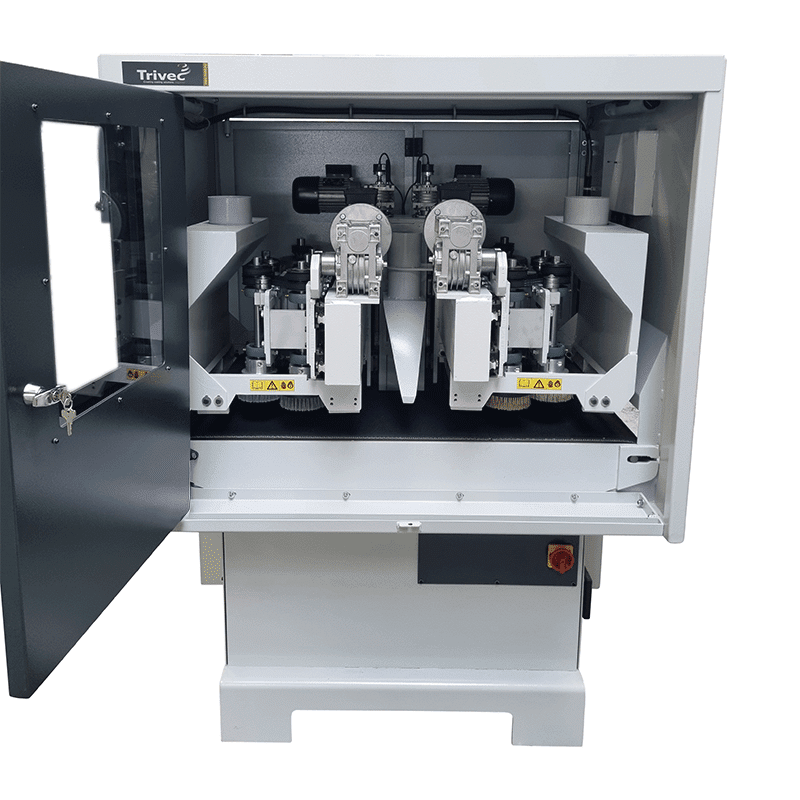

Features & Functions

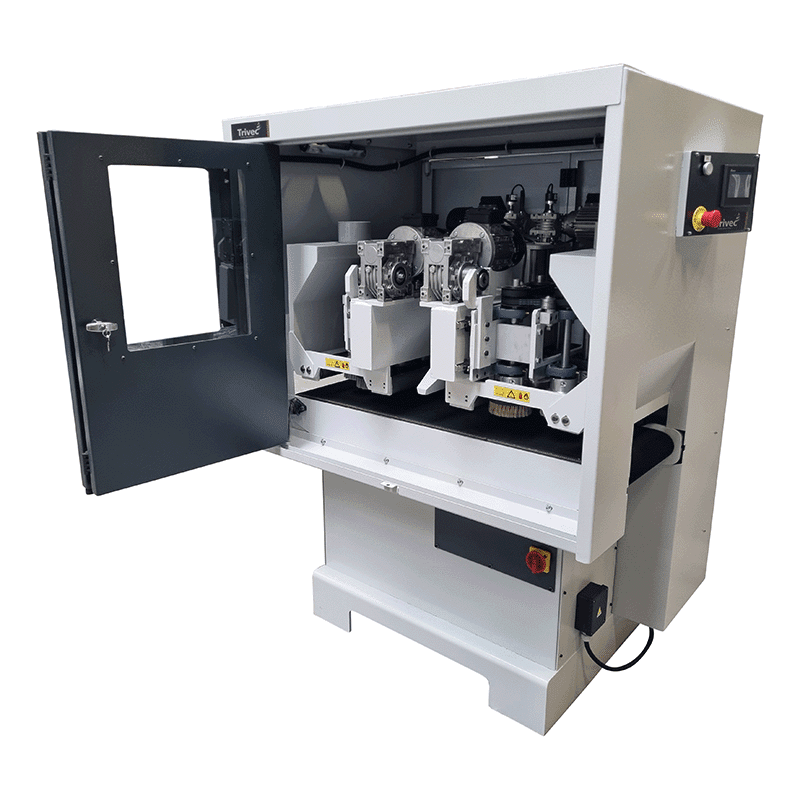

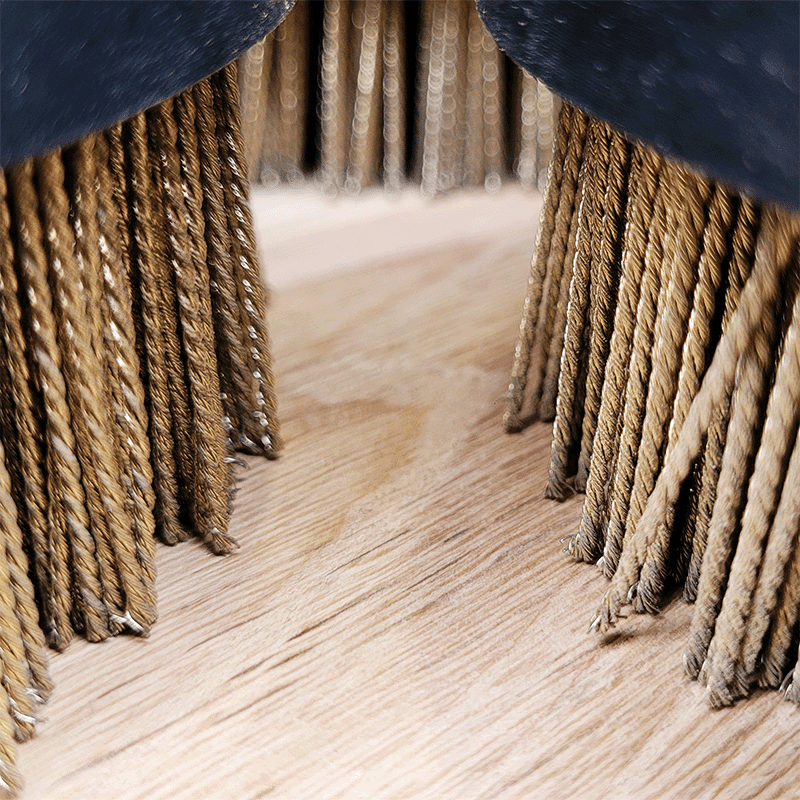

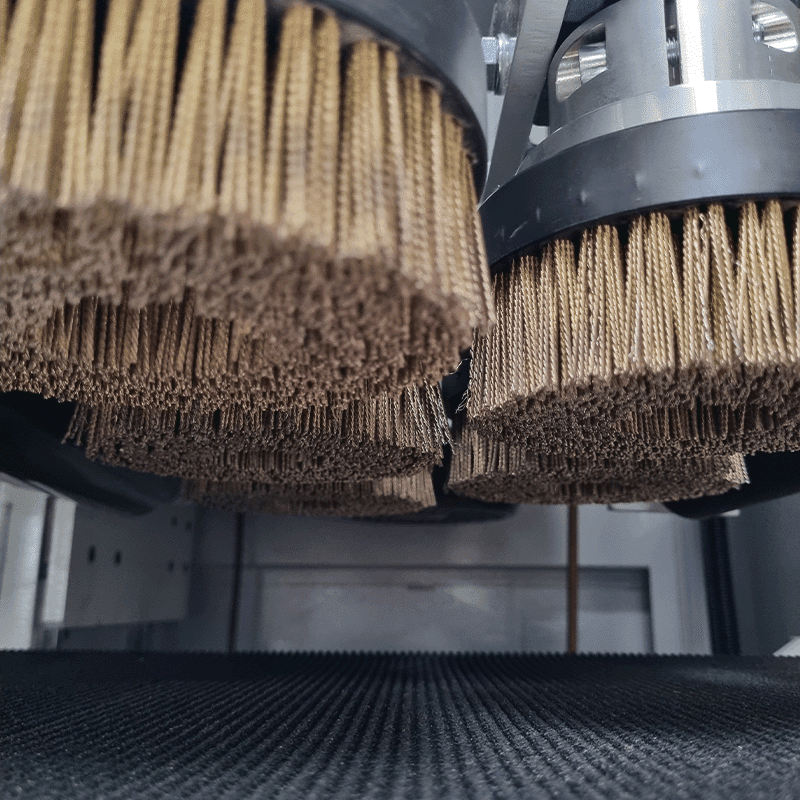

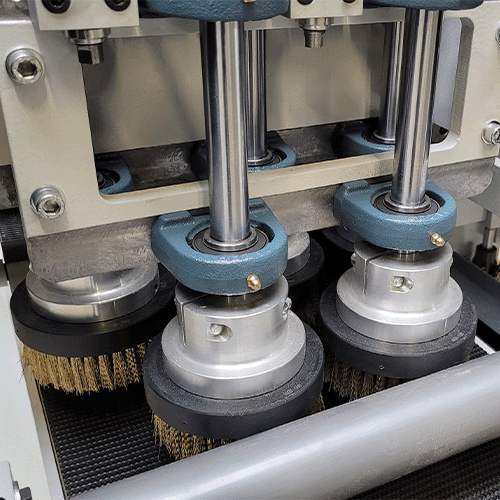

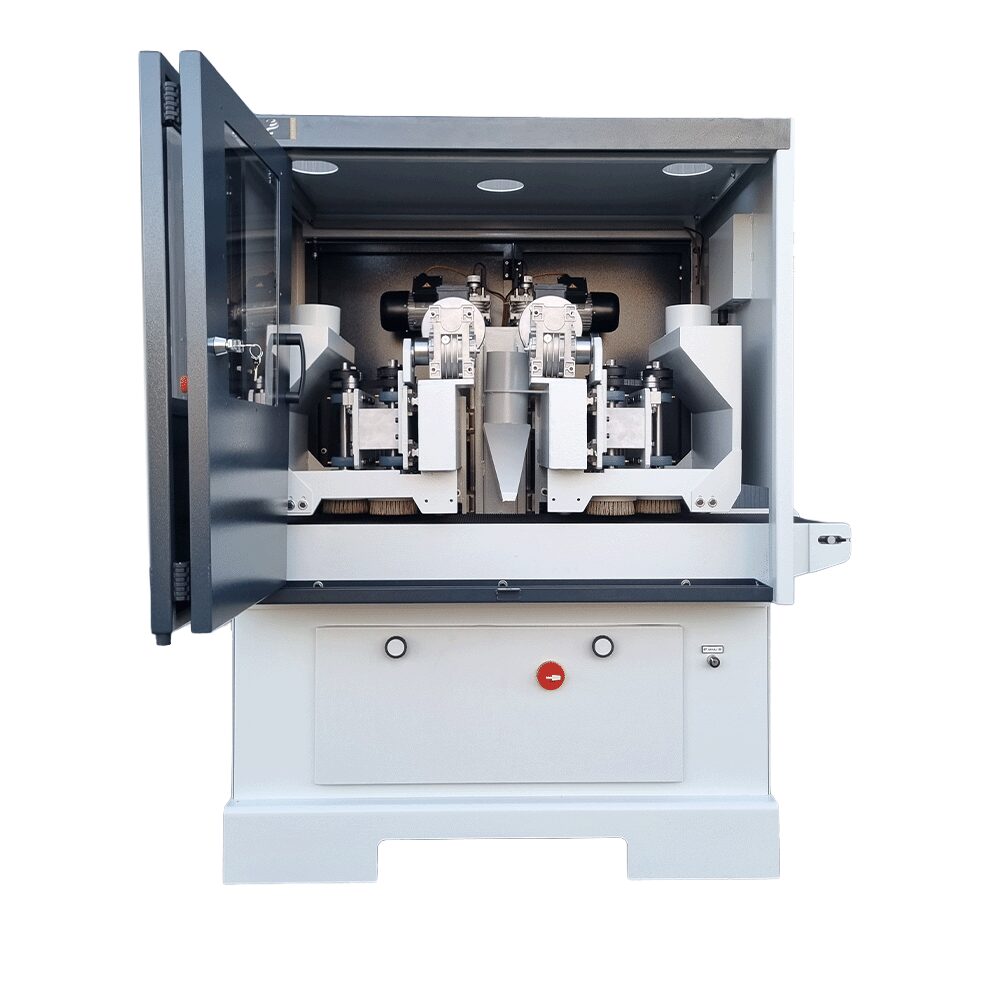

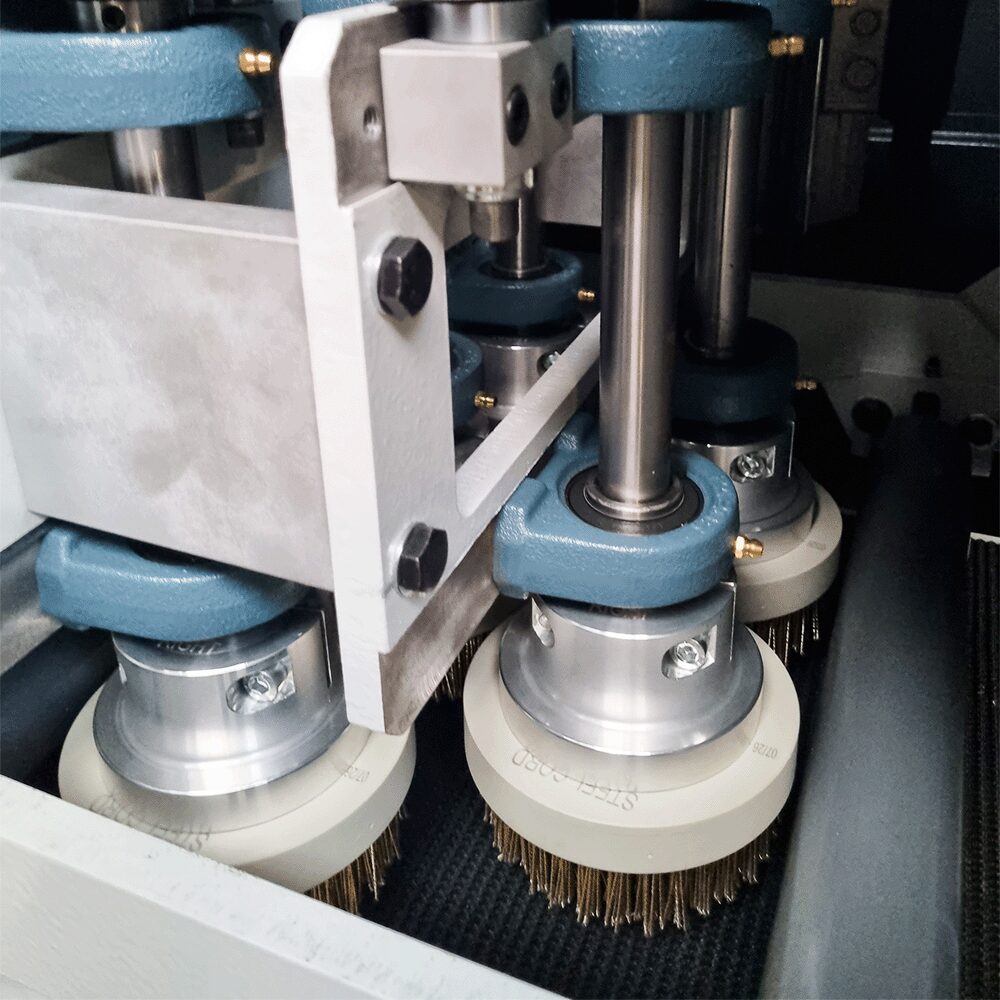

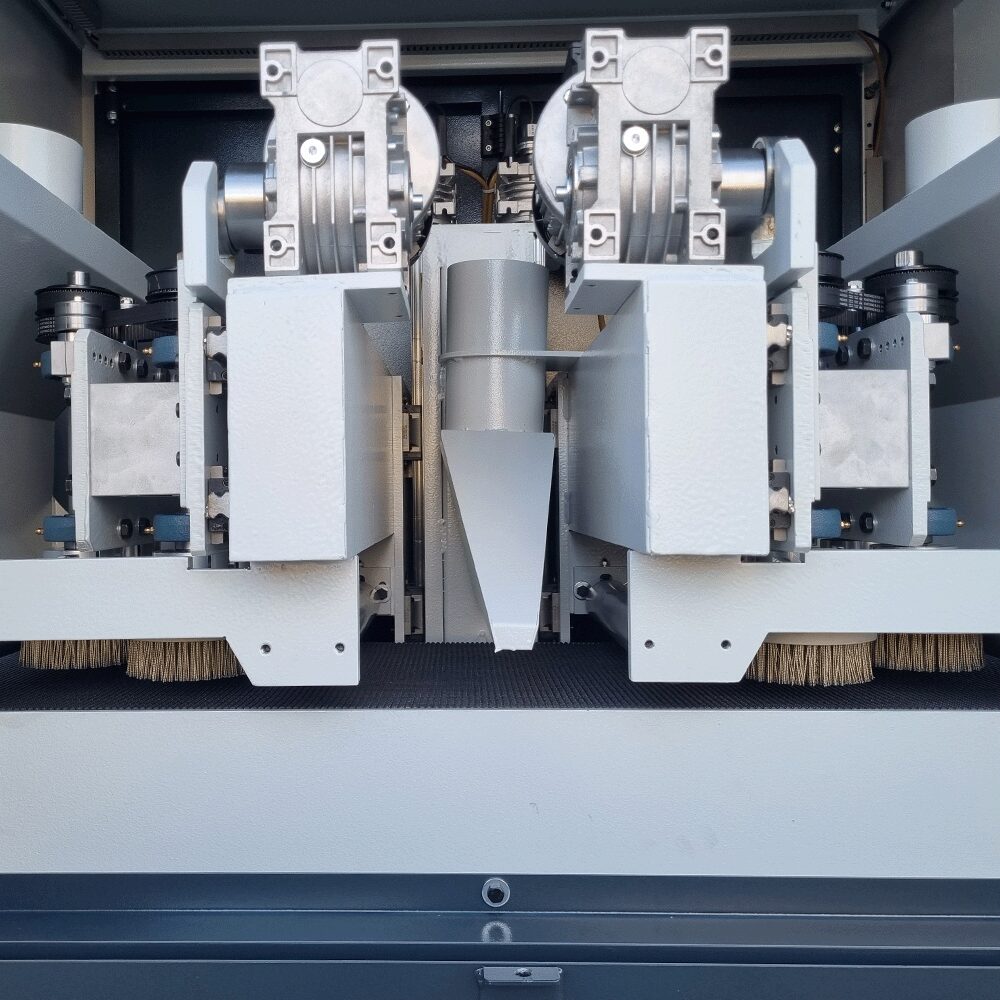

Scrub brush Stations: Two oscillating stations (5 brass disc brushes each) create deep, authentic 3D wood structures with rounded edges. No unwanted polishing.
Modular Rear Brushes: 1-2 optional refining units remove loose fibers for flawless, finish-ready surfaces; expandable for future needs.

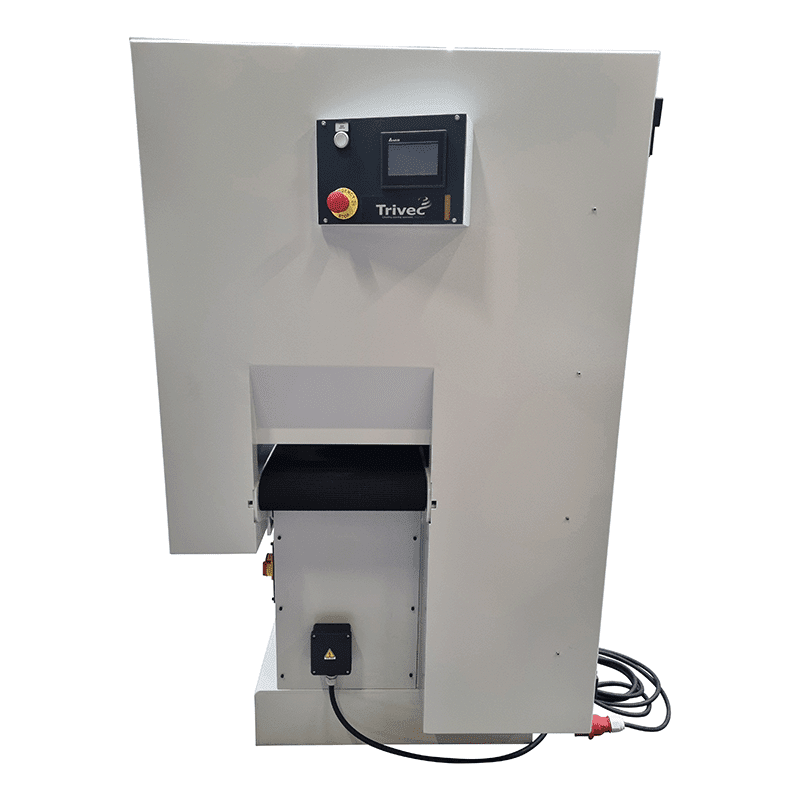

Full Control: Touchscreen for stepless adjustment of speed, oscillation, and feed; save as recipes.

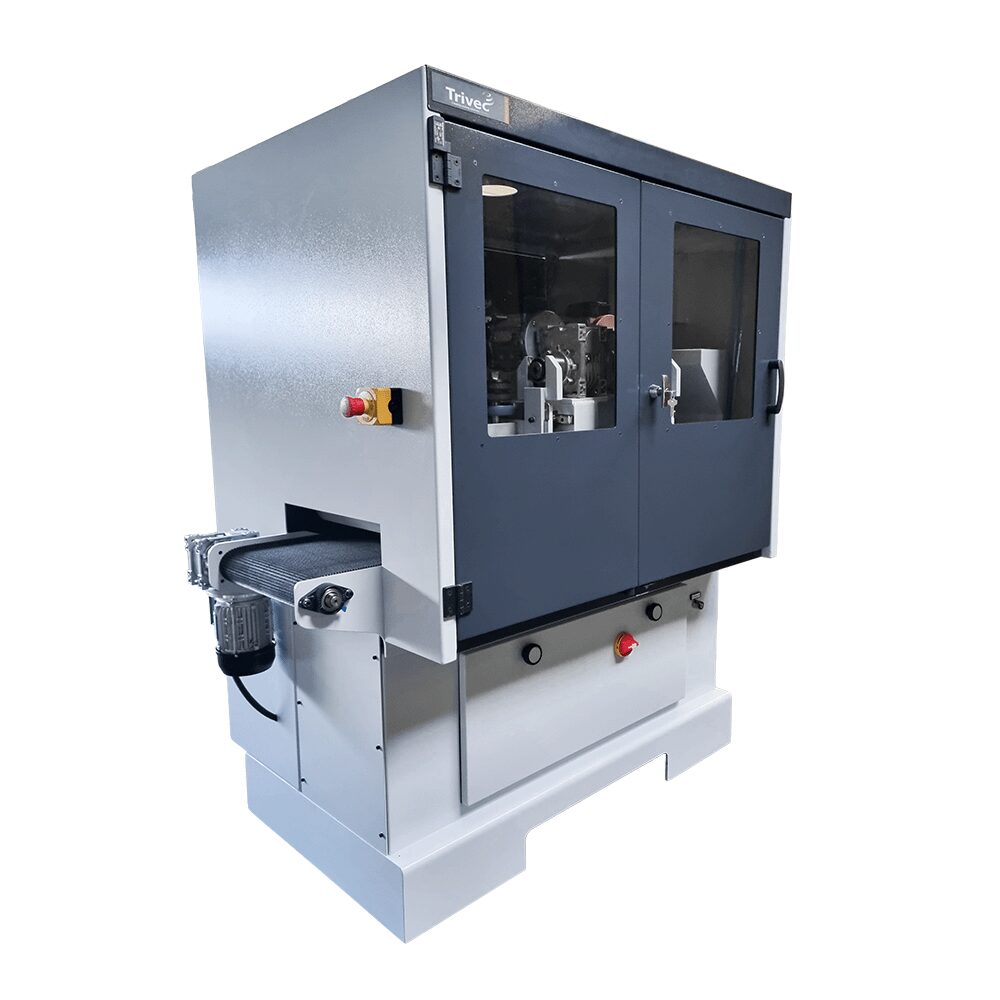

Stable Transport: High-grip belt + pneumatic rollers for perfect guidance.
Precise Adjustment: Electric height control per unit.
Easy Maintenance: Quick brush exchange and accessible cleaning.

Specifications

Effective working width: 400 mm
Minimum workpiece length: approx. 350–600 mm (configuration dependent)
Feed height: 4 – 120/150 mm
Feed speed: adjustable up to approx. 15 m/min
Brush unit configuration: 2 scrub brush stations with 5 disc brushes each, optionally followed by 1, or 2 rear brush units
Control: touchscreen with intuitive programs
Height adjustment: electric per unit
Dimensions (L×W×H): approx. 4700 × 1100/1150 × 2000 mm
Marking – CE

Compatibility & Integration

Compatibility and future-proof integration

The Trivec Rotor Cup Brushing Machine integrates seamlessly with other Trivec machines and third-party equipment such as sanding stations, vacuum coaters, oiling units, dryers or conveyor systems. Its standardized heights and modular design allow easy incorporation into new or existing lines and enable smooth future expansion without machine modifications.

Safe and efficient line connection

Equipped with a dedicated control cabinet that includes emergency stop circuits, status signals and error notifications, the machine ensures safe and reliable integration into any automated production line, regardless of size or complexity, while maintaining full process continuity.

Customizable add-ons for enhanced functionality

The Trivec Rotor Cup Brushing Machine offers a range of optional add-ons to tailor the machine exactly to specific customer needs. These include one or two additional rear brush units, automatic brush cleaning systems, workpiece blow-off units, and customized conveyor or pressure roller configurations. These add-ons ensure perfect integration into unique production setups while maximizing efficiency and adaptability to future requirements.
