Cross Cutter – 3 brush units

The Trivec Cross Cutter is specifically designed to create random bandsaw effects on wood. The machine is equipped with a Cross cutter unit and three brush units for deep, textured effects.

By adjusting throughput speed, cross-cutter speed, and the angles of the various units, as well as selecting different brush types or cross-cutter belts, the machine offers a wide range of effects. The Trivec Tapper System enhances this process, with pneumatic shoes pressing the cross-cutter belt at random intervals, producing unique and natural patterns. The heavy-duty brush motors can be individually adjusted for speed and rotational direction, providing further creative control.

Key Benefits of the Cross Cutter - 3 brush units

For creating bandsaw effects and deep, structured brushing effects on wooden surfaces, Trivec offers a variety of possibilities in brushes and cross-cutter belts.

The Result

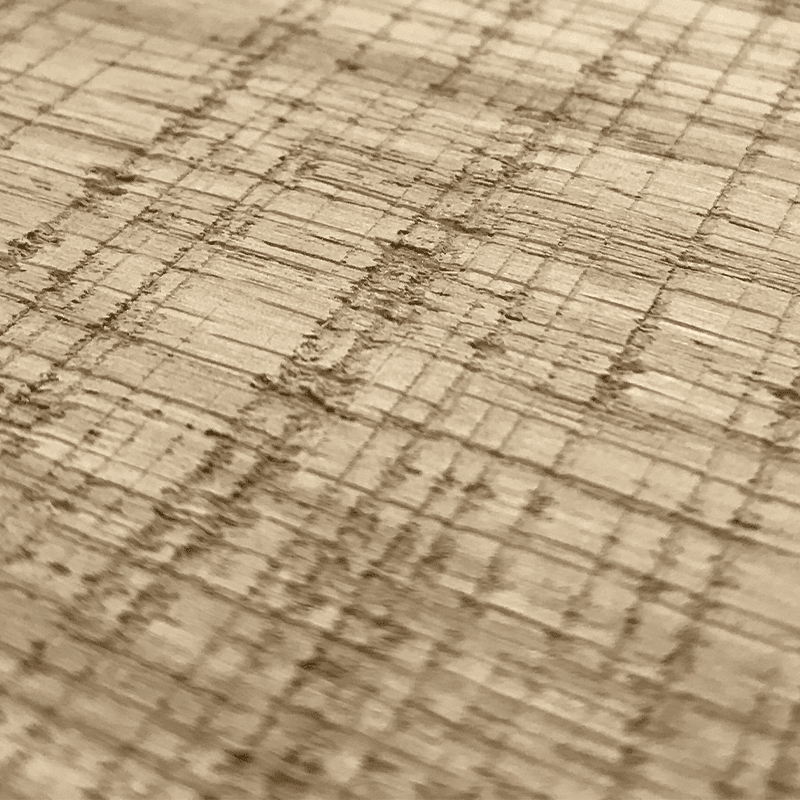

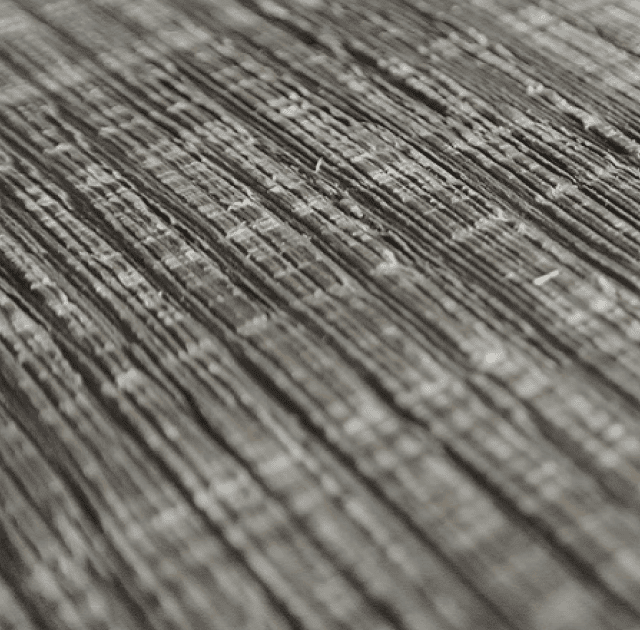

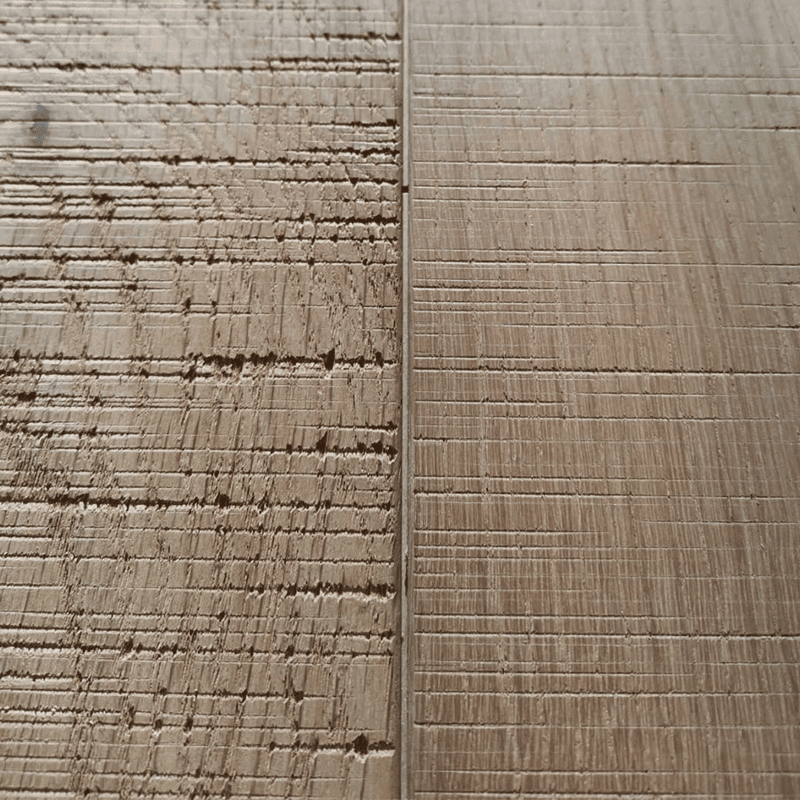

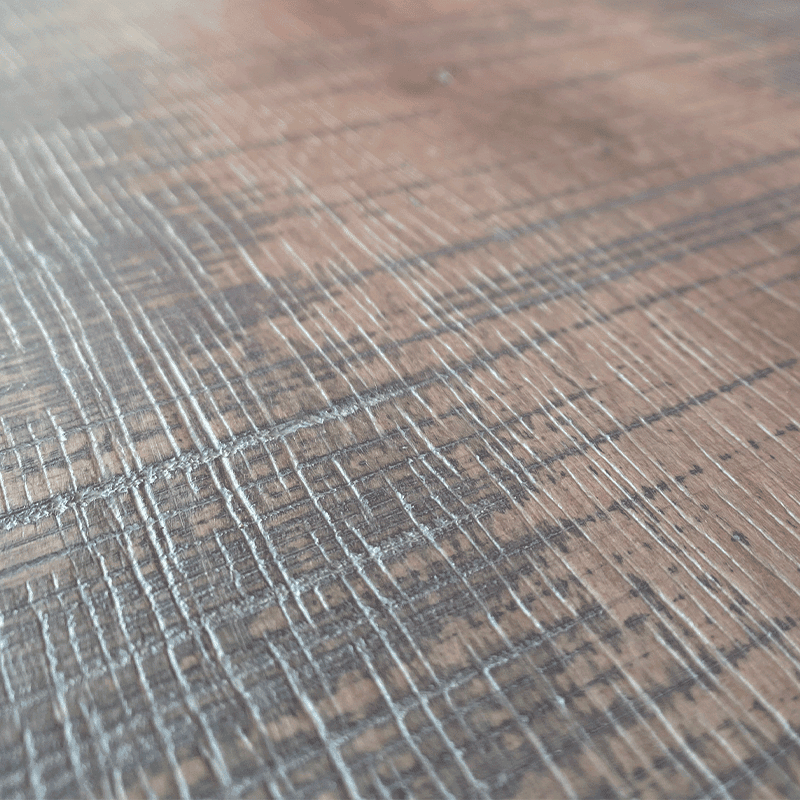

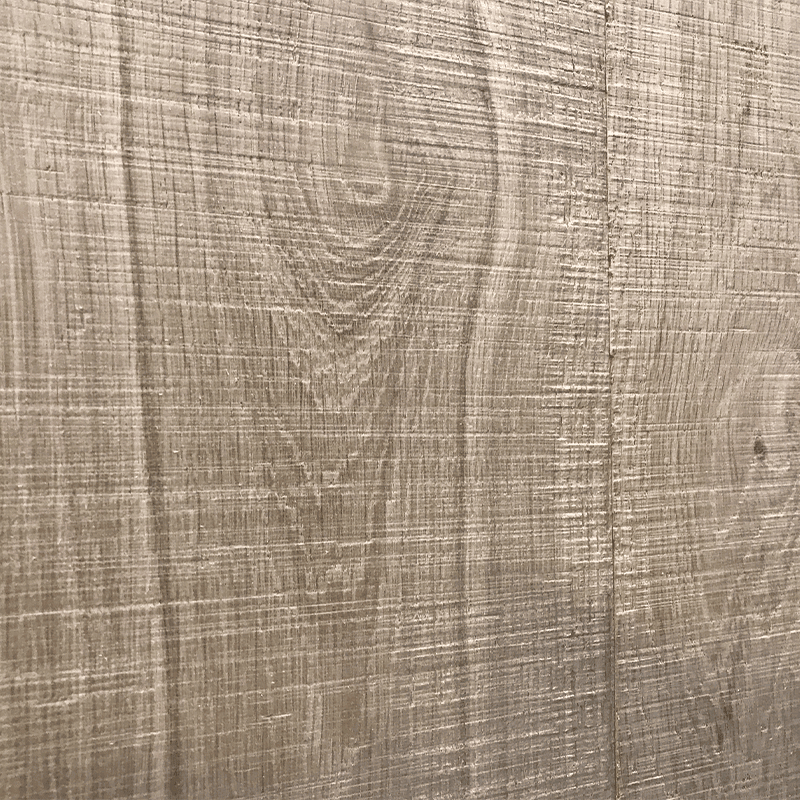

View the results achieved with the Cross Cutter – 3 brushes

Cross-cutter-effect-parquet-planks-square

Play Video

About the Cross Cutter – 3 brush units

Applications

Parquet flooring.
Exterior wood.
Furniture panels.
Stair steps.
Kitchen cabinets.
Other similar workpieces.
Aging Wooden Surfaces.

Features & Functions

Equiped with the Trivec Tapper System; various pneumatic shoes push down the cross cutter belt at random intervals for creating authentic effects.
Equipped with one Cross cut unit and three brush units.
The brush units angle is adjustable for optimal sanding and deep structured wood effects.
Central height adjustment and fine adjustment setting on every unit.
Integrated high-grip conveyor ensuring a consistent effect and maximal safety.
Pressure rollers on each unit to stabilize workpieces.
Heavy-duty brush motors with independently adjustable speeds and rotational directions for creative control.
Adjustable pressure, angle, and conveyor speed for customized results.
Wide variety of Cross cutter belts and brush types available.

Specifications

Working width max – 600 mm
Minimal workpiece length – 300 mm
Working height – 900 mm (+20/-20 mm)
Throughput height – 4 – 250 mm
Throughput speed – 4 – 15 m/min
Brush units – 3
Power brush motor – 3 x 4,0 kW
Ø Exhaust connection – 3 x 100 mm and 1 x 80 mm
Control – via touchscreen
Brush speed – variable with frequency controller
Compressed air requirements – minimum of 6 bar
Pressure rollers – 2 in each unit
Marking – CE (UL optional)

Compatibility & Integration

Compatibility and Future-Proof Integration

The Trivec Cross Cutter is designed for seamless compatibility with both Trivec systems and equipment from other manufacturers, such as sanding units, conveyors, and finishing stations. This flexibility allows for easy customization and expansion of production workflows. Its scalable design ensures smooth integration into larger production setups without the need for modifications, making it a reliable and future-proof solution for evolving operations.

Safe and Efficient Line Connection

The Trivec Cross Cutter, equipped with a control cabinet, includes integrated connections for emergency stop and error notifications. These advanced safety features ensure smooth and secure integration into production lines of all sizes and complexities. By improving operational safety and reducing downtime, the system guarantees reliable, continuous performance throughout the production process.

Compatibility for Diverse Production Needs

The Cross Cutter offers great versatility, making it ideal for a wide range of production environments. Its flexibility stems from the ability to create various surface effects through compatibility with multiple Cross cutter belts and brush types. These include sanding, abrasive, and specialized brushes, ensuring the machine can easily adapt to the specific needs of different materials and applications.
