4-Side Brushing Machine

Need consistent brushing on all sides of your wooden workpieces without multiple processing steps?

With the Trivec 4-Side Brushing Machine, you achieve uniform structuring on all sides in one pass, reducing handling and ensuring a reliable, high-quality finish.

4 sided brushing machine cabin front interior

4 sided brushing machine cabin interior close up

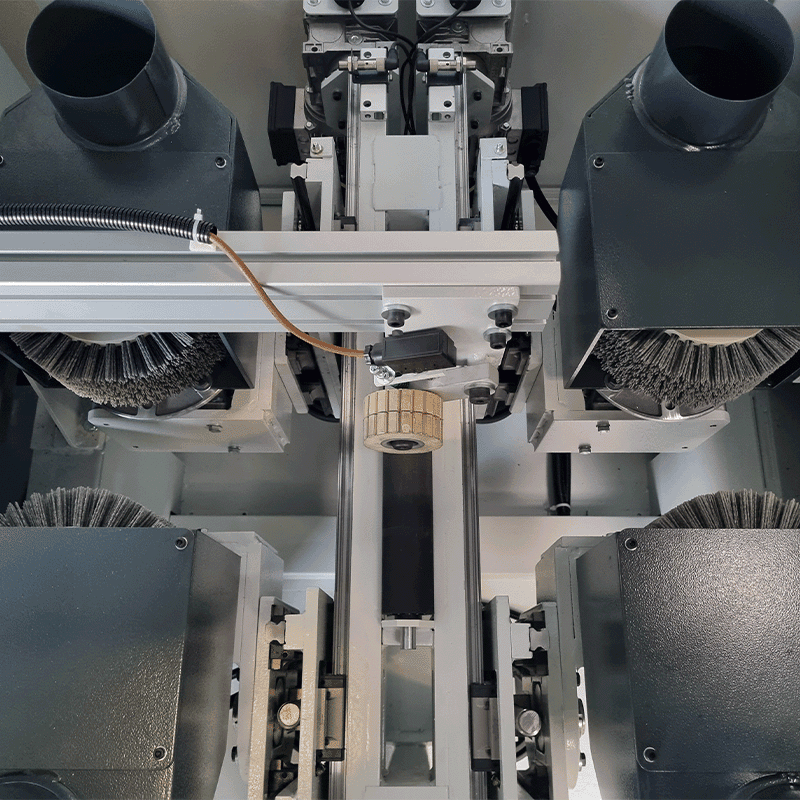

4 sided brushing machine cabin side brushes

4 sided brushing machine cabin top brush side brush

4 sided brushing machine cabin under brushes

4 sided brushing machine cabin under brush top brush

Benefits of the 4-Side Brushing Machine

Multi-sided brushing in one pass → process all sides simultaneously and eliminate multiple handling steps.

Consistent surface quality → uniform structuring across all sides for a reliable, high-quality finish.

High efficiency output → increase throughput while maintaining consistent results.

Deep and effective structuring → large brush diameters ensure strong sanding contact on both flat and profiled workpieces.

Precise control → central electric adjustment combined with manual fine-tuning for full control over brushing intensity.

Clean processing → integrated dust extraction and ionized air cleaning keep surfaces and the working environment clean.

The Result

View the results achieved with Trivec’s 4-Side Brushing Machine

Result 4 side brushing front side close up

Result 4 side brushing back side close up

About the 4-Side Brushing Machine

Applications

The Trivec 4-Side Brushing Machine is designed for continuous processing of wooden workpieces that require uniform structuring on all sides.

Cladding and façade wood
Exterior wood elements
Profiled wooden components
Structural timber
Other longitudinal workpieces

Ideal for applications where all sides must be processed efficiently in a single pass.

Features & Functions

Full 4-Side Brush Configuration: Top, bottom, left and right brush units ensure complete surface treatment in one pass.
Powerful Structuring: Large brush diameters create consistent grain structuring on different wood types and profiles.
Flexible Adjustment: Central electric height and depth adjustment with manual fine-tuning per unit for precise control.
Optional Safety Cabin: Fully enclosed design with sliding doors and safety switches for safe operation.
Integrated Cleaning: Compressed air blowing knives with ionization bars remove residual dust from all sides of the workpiece.
Efficient Dust Extraction: Each brush unit is connected to an external extraction system.
Stable Transport System: Conveyor with pressure rollers ensures accurate guidance and stable throughput, even at higher speeds.

Specifications

Effective working width: 300 mm (2 × 150 mm segments per axle)
Minimum workpiece length: 1000 mm
Work height: 930 mm (+20 / -20 mm)
Throughput height: 4 – 80 mm
Throughput speed: 10 – 40 m/min
Brush speed: adjustable per unit
Transport system: integrated conveyor with pressure rollers
Height adjustment: central electric adjustment with fine-tuning per unit
Control: touchscreen
Machine dimensions (L×W×H): 2500 × 1100 × 1390 mm
Marking: CE

Compatibility & Integration

Seamless line integration

Easily integrates into new or existing production lines and works in combination with Trivec machines or third-party equipment such as sanding, coating, drying and transport systems.

Safe and reliable operation

Enclosed cabin, controlled transport and dust extraction ensure a safe and stable production process.

Flexible configuration

Adjustable brush settings and optional features allow the machine to be tailored to specific materials, structuring effects and production requirements.

Looking for Similar Options?

Explore other machines that could be the perfect fit for your needs.

Cross Cutter – 1 brush unit

Brushing, Cross cutters, Sanding, Used machines

Brushing Machine with oscillating disc brushes

Brushing, Sanding

Brushing Machine with Sidebrush

Brushing, Sanding

Brushing Machine – 2 brush units

Brushing, Sanding

Testimonials

Trivec’s team is exceptional. Wiebe’s expertise and problem-solving skills keep our production running at peak performance, while Branko’s innovative approach ensures we stay ahead with new design concepts. Their commitment to quality and customer satisfaction makes them more than a supplier they’re a true strategic partner. We highly recommend Trivec to any company looking to optimize its production.

Anonymous Customer

Industrial Production Company

We faced serious bottlenecks in our coating line, slowing down production and efficiency. Trivec Engineering provided the perfect solution with a custom-designed Coating Line that completely eliminated these issues. Our output has increased, and their proactive maintenance service prevents costly downtime. Trivec’s expertise, reliability, and commitment to customer satisfaction make them a trusted partner. We highly recommend them to any company looking to optimize production.

Anonymous Customer

Industrial Manufacturing Company

Initially, we had doubts about choosing Trivec, particularly regarding the price and the robustness of the machines. However, we have purchased multiple machines from them and have always experienced a professional and pleasant collaboration. The support was prompt and helpful, and the service was solution-oriented. We appreciate Trivec as a reliable and customer-focused partner. That is why we would certainly recommend them to others.

Satisfied Trivec Customer

Long-term customer | Industrial Manufacturing

We have been using Trivec machines on our production line for some time now, and we couldn’t be more satisfied. The build quality is outstanding robust, reliable, and clearly designed with long-term use in mind. The machines are also incredibly user-friendly, which has helped streamline our workflow and reduce training time.

Equally impressive is Trivec’s customer support. Their team is consistently responsive, knowledgeable, and genuinely helpful whenever we’ve needed assistance, and we are especially grateful to Wiebe for all his support. It’s clear they stand behind their products and are committed to their customers’ success.

We would highly recommend Trivec to any company looking for high-quality, dependable finishing equipment backed by excellent service.

Paul Byrne

Production Manager, Matt Britton

“We have known Trivec for many years and have always had a very positive experience working together. What we appreciate most is their straightforward and solution-oriented approach.
Trivec combines experience with a willingness to test, adapt existing equipment and, when necessary, develop a new solution for a specific application. Their machinery is especially valuable in our laboratory environment, where flexibility, low material usage and the ability to quickly change rollers and machine setups are essential.
Trivec is a reliable partner that stands behind its customers and helps find a solution when challenges arise.”

Laboratory Specialist

Leading manufacturer in the coating industry

FAQ´s

Still have questions? Find the answers you’re looking for below.

Do I get a standard line or a fully customised solution?

The exterior wood lines are built from standard modules which we combine into a configuration tailored to your needs. This means: a clear structure (Basic, Spraying, Vacuumcoater, Advanced, Advanced+) but always adapted to your profiles, products, coating systems, available space, and required level of automation In our Experience Center we often start with a test setup similar to the final line. Based on the test results, your capacity requirements, and logistics, we fine-tune the configuration until it fits your production perfectly. This way you benefit from the reliability of a standard platform, executed as a customised solution for your process.

What kind of guidance and training do I receive when purchasing an exterior wood line?

When you purchase an exterior wood line, we support you from the first test up to commissioning and aftercare. In our Experience Center & Test Lab, we test your wood types and coatings on the selected line. During installation we provide operator training on operation, settings, basic maintenance, and safety. After commissioning you can rely on service and maintenance agreements, remote support and, if required, additional training when you introduce new staff or new products. Our goal is to ensure that your team can operate the line independently and confidently, and that performance remains stable as your production evolves.

What is the energy consumption of the line and which sustainable options are available?

Energy consumption varies per line and configuration, but efficiency and sustainability are key design criteria. Basic and Spraying Lines: relatively compact systems with limited drive power and exhaust capacity. Vacuumcoater Line: very efficient in material usage, with a closed system that minimises waste. Advanced and Advanced+ Lines: can be equipped with energy-efficient motors, frequency drives, and options such as heat recovery in drying tunnels. In addition, switching from manual to automated coating often saves on: product loss (less overspray/waste) scrap due to quality variations rework and extra drying time During the proposal phase we can prepare an indicative energy and material balance for your specific case so you get a clear picture of the overall savings.

Can the line be integrated into my existing production and logistics?

Yes, Trivec exterior wood lines are always tailored to your existing production environment. This can range from a relatively simple Basic Line with infeed and outfeed conveyors to a fully integrated Advanced+ Line connected to your internal logistics. We look at aspects such as: the position of your moulder, rip saw, or other processing steps infeed and outfeed of bundles or packs desired connections with stacking stations, roller conveyors, lifting aids future expansions, such as additional drying capacity or a second application step Our engineers work with layout drawings of your facility and jointly design a logical routing. This ensures that the line not only works technically, but also makes sense in terms of logistics and ergonomics.

Can I process both cladding and decking on the same machine line?

Yes, in many cases you can process cladding and decking on the same line. The most suitable line mainly depends on the profile, the desired finish, and your production volume. The Basic Exterior Wood Line is typically used for fine-sawn cladding that you want to treat with a transparent stain. The Spraying Exterior Wood Line focuses on planed cladding with opaque paints and 3D parts such as frame or trim components. The Vacuumcoater Exterior Wood Line is ideal when you produce a lot of tongue-and-groove or profiled boards, for example for cladding and decking, including thermo-treated or modified wood. With the Advanced or Advanced+ Exterior Wood Line, you add automated handling, buffering and, if required, a cross-drying tunnel. This allows you to run different product types in series without needing a completely different setup for each product. Together we assess which profiles, dimensions, and coatings you want to combine and configure the line accordingly.
