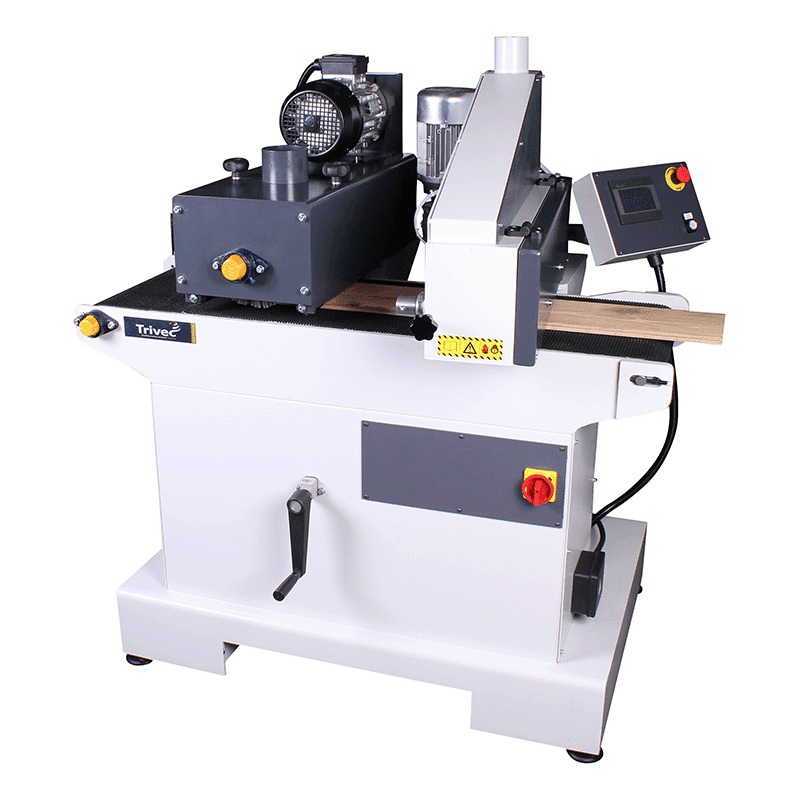

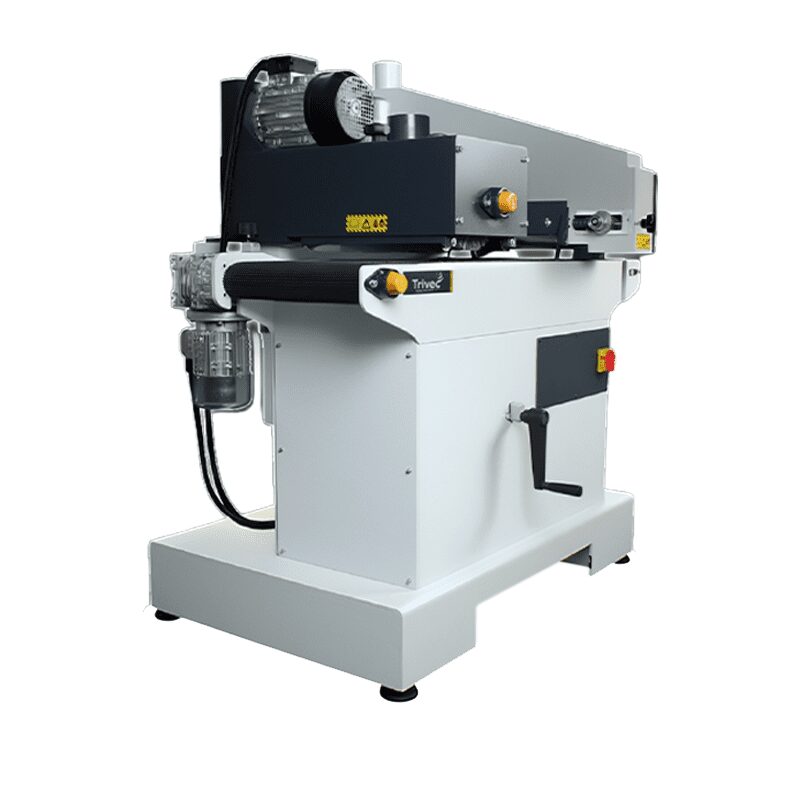

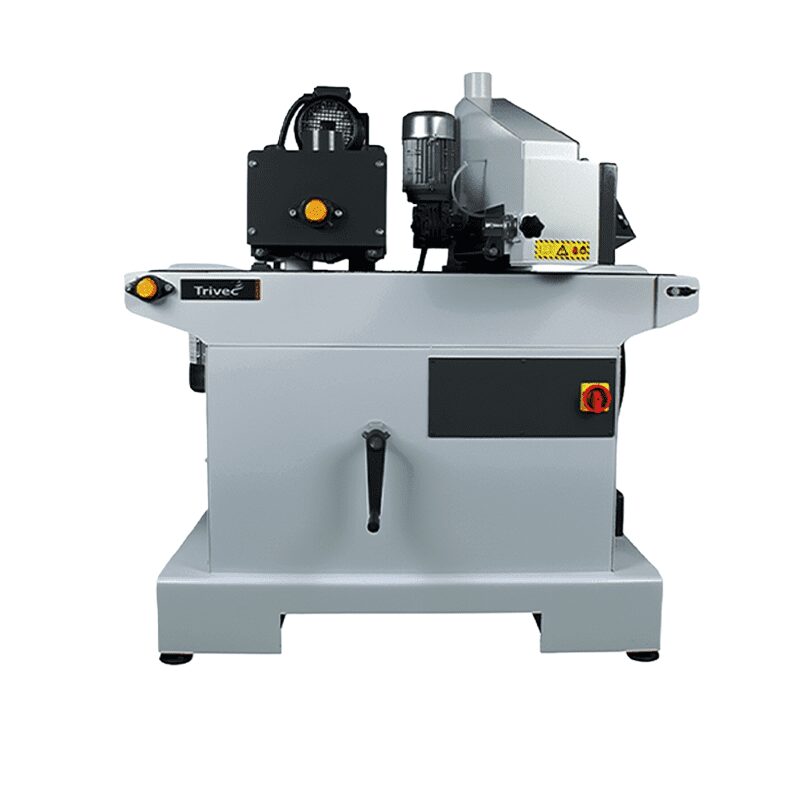

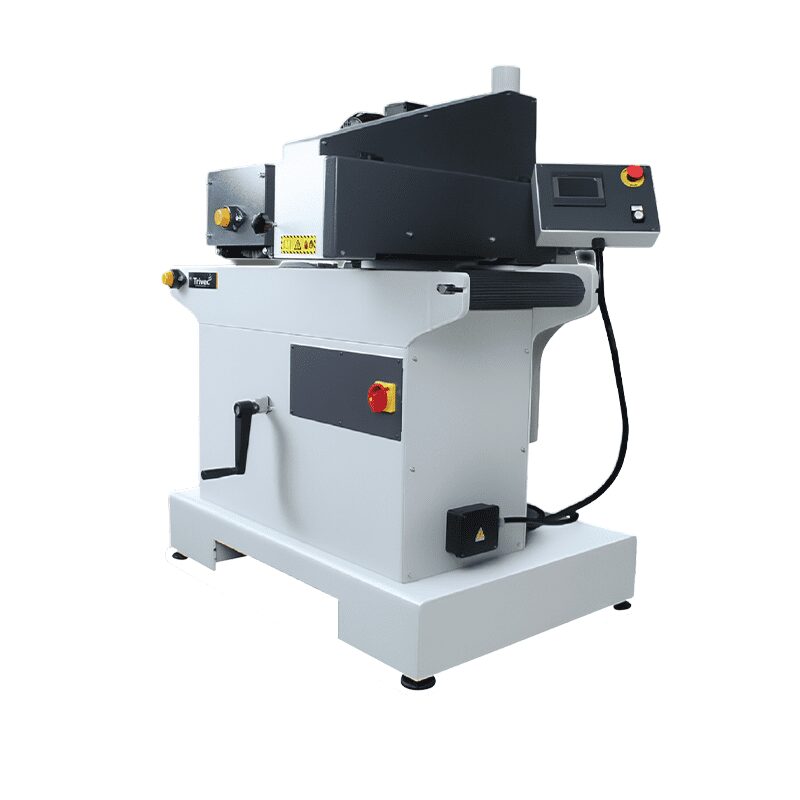

Cross Cutter – 1 brush unit

The Trivec Cross Cutter is developed for the creation of bandsaw effects on wooden surfaces. The machine is equipped with a bandsaw and brush unit.

By adjusting the throughput speed, cross cutter speed, angles of the various units, type of brush or type of cross cutter belt, various effects can be created. Equiped with the Trivec Tapper System to create unique effects. With various pneumatic shoes that push down the cross cutter belt at random intervals, random and more natural effects can be created.

Equipped with touchscreen, the various speeds, unit height, and programmes can be changed and stored.

Key Benefits of the Cross Cutter - 1 brush unit

For the creation of bandsaw effects upon wooden surfaces. Can also be used for brushing surfaces or a combination of both.

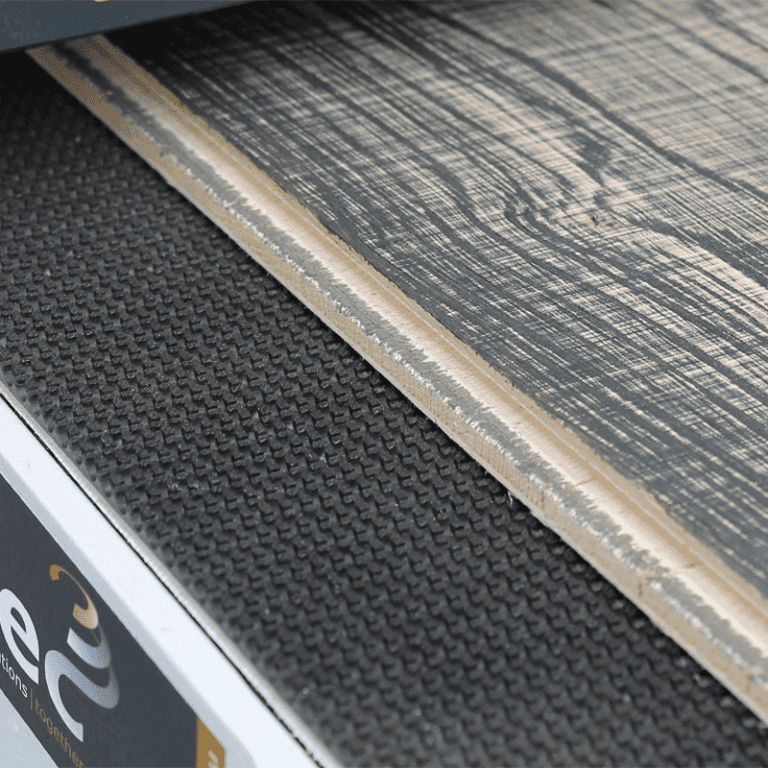

The Result

For the creation of bandsaw effects upon wooden surfaces. Can also be used for brushing surfaces or a combination of both.

Cross-cutter-effect-parquet-planks-square

Play Video

About the Cross Cutter – 1 brush unit

Applications

Parquet flooring.
Exterior wood.
Furniture panels.
Stair steps.
Kitchen cabinets.
Other similar workpieces.
Aging Wooden Surfaces.

Features & Functions

Equipped with the Trivec Tapper System; various pneumatic shoes push down the cross cutter belt at random intervals to create unique effects.
Equipped with one Cross cut unit and one brush unit
Brush unit adjustable angle for optimal sanding and grain-effect results on wooden surfaces.
Central height adjustment for uniform processing.
Integrated high-grip conveyor for smooth and stable transportation.
Pressure rollers on each unit to stabilize workpieces, enabling the processing of smaller pieces.
Heavy-duty brush motor with independently adjustable speeds and rotational directions for creative control.
Adjustable pressure, brush type, angle, and conveyor speed for customized results.
Can be equipped with various Cross cutter belts and brush types.

Specifications

Working width max – 600 mm
Minimal workpiece length – 300 mm
Working height – 900 mm (+20/-20 mm)
Throughput height – 4 – 250 mm
Throughput speed – 4 – 15 m/min
Brush units – 1
Power brush motor – 1 x 4,0 kW
Ø Exhaust connection – 1 x 100 mm and 1 x 80 mm
Control – via touchscreen
Brush speed – variable with frequency controller
Compressed air requirements – minimum of 6 bar
Pressure rollers – 2 in each unit
Marking – CE (UL optional)

Compatibility & Integration

Compatibility and Future-Proof Integration

The Cross Cutter is designed for effortless compatibility with both Trivec systems and equipment from other manufacturers, such as sanding units, conveyors, or finishing stations. This provides maximum flexibility for customizing and expanding production workflows. Its scalable design ensures smooth integration into larger production setups without requiring modifications, making it a reliable and future-proof solution for growing operations.

Safe and Efficient Line Connection

The Cross Cutter features a control cabinet with integrated connections for emergency stop and error notifications. These advanced safety functions enable smooth and secure integration into production lines of any size or complexity. By enhancing operational safety and minimizing downtime, the system ensures reliable, uninterrupted performance across the entire production process.

Compatibility for Diverse Production Needs

The Cross Cutter offers big versatility, making it suitable for a wide range of production environments. Its flexibility lies in the ability to create various surface effects through compatibility with multiple cross cutter belts and brush types. These include sanding, abrasive, and specialized brushes, ensuring the machine can adapt seamlessly to the specific requirements of different materials and applications.

Questions about integration with other machines?

Curious about solutions with external production systems? We’re happy to assist you!

Looking for Similar Options?

Explore other machines that could be the perfect fit for your needs.

4-Side Brushing Machine

Brushing

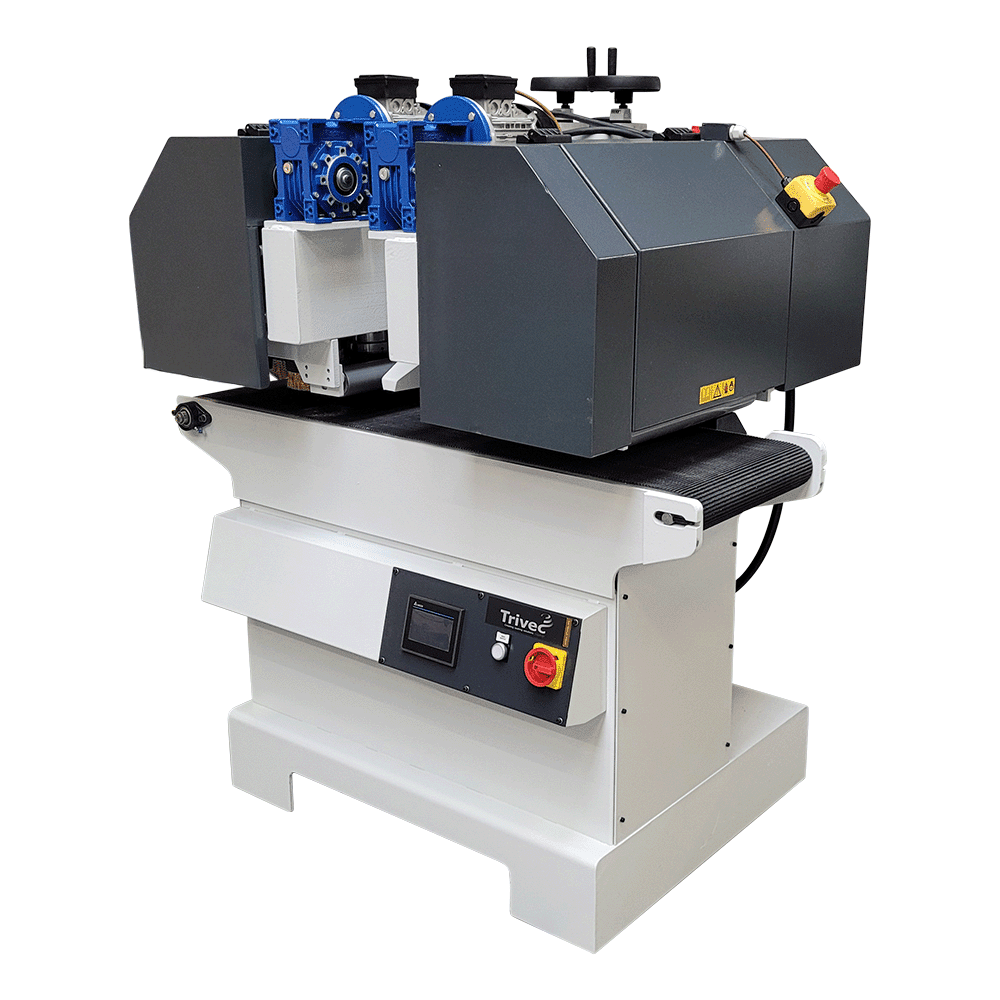

Rotor Brushing Machine
