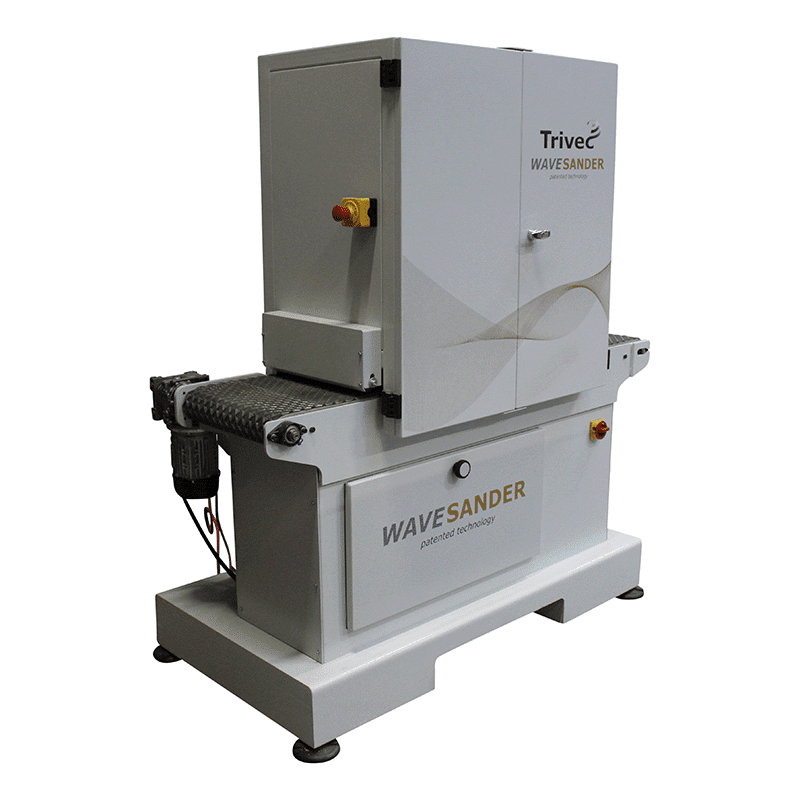

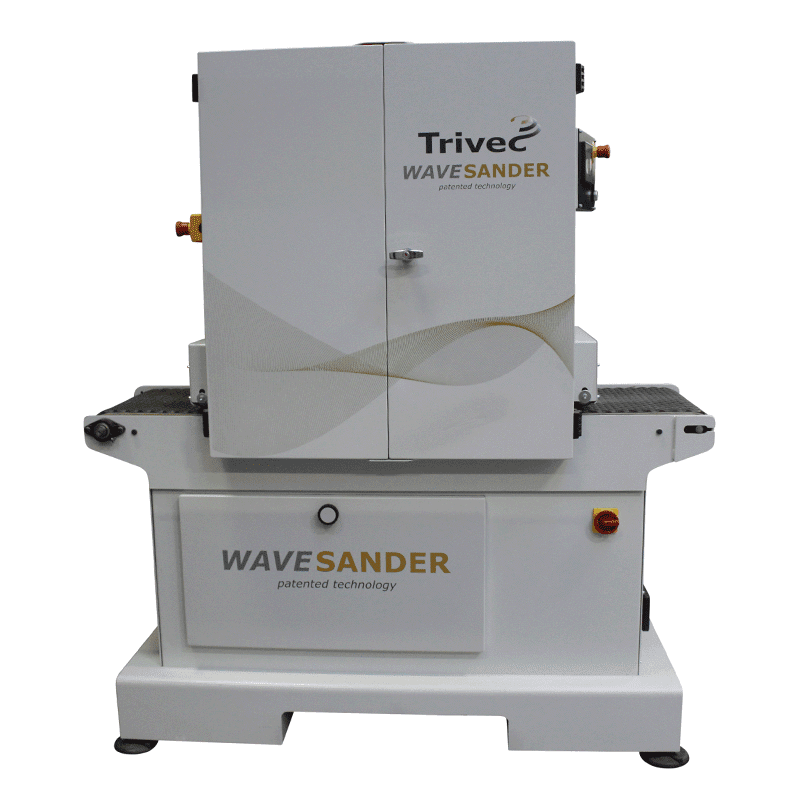

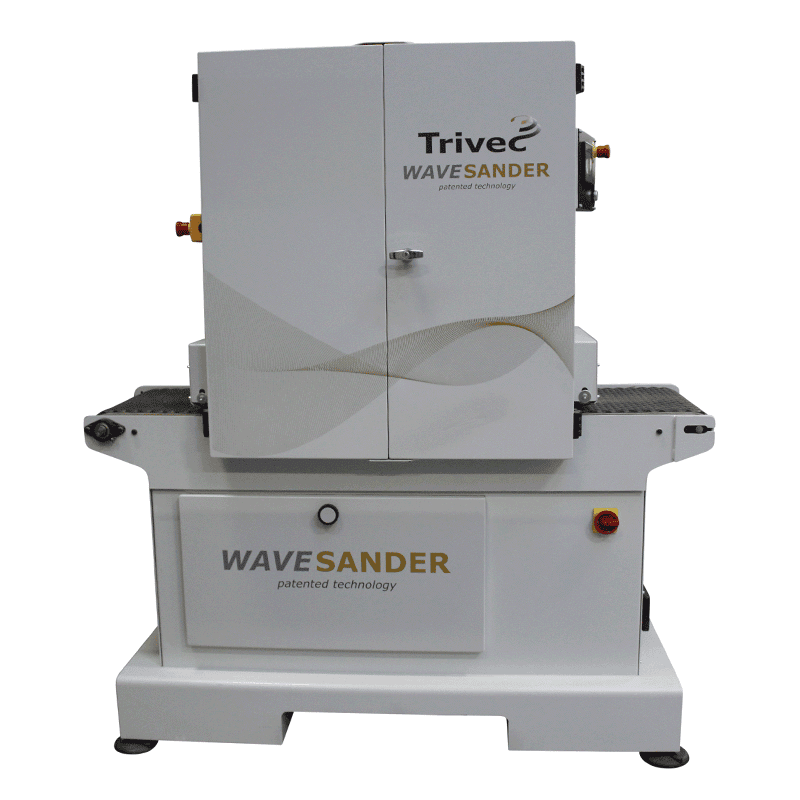

Wave Sander

The Trivec Wave Sander is a specialized machine developed to create natural, random wave effects on wooden surfaces, adding a distinctive texture and visual appeal. This makes it ideal for parquet flooring, exterior wood cladding, interior wall panels, and other decorative wooden components.

The effect is created using pneumatic tapping feet, which produce random longitudinal patterns on the surface. By adjusting parameters such as conveyor speed, cutting speed, oscillation intensity, grain size, and surface pressure, the operator can achieve a wide variety of finishes.

Wave Sander

Sanding machine developed to create natural, random wave effects on wooden surfaces, adding a distinctive texture and visual appeal.

Parquet flooring.
Exterior wood.
Furniture panels.
Other similar workpieces.

Pneumatic tapping feet for random wave effects along the wood grain
Fully adjustable process parameters: conveyor speed, cutting speed, oscillation effect, grain size, pressure
User-friendly touchscreen interface with multiple pre-set programs
Quick-change sanding belt system for fast and simple maintenance
Compact yet robust machine design for industrial-grade use
Perfect for parquet, exterior wood, wall panels, and other decorative applications
CE marked for safety and regulatory compliance

Width – 800 mm
Height – 1795 mm
Effective working width – 300/400 mm
Effect system – Pneumatic tapping feet
Sanding belt – Quick-change system
Electrical connection – 400V / 50Hz (3Ph + 0 + ground)
Control systems – Touchscreen with multiple programmes
Emergency stop – on the input side

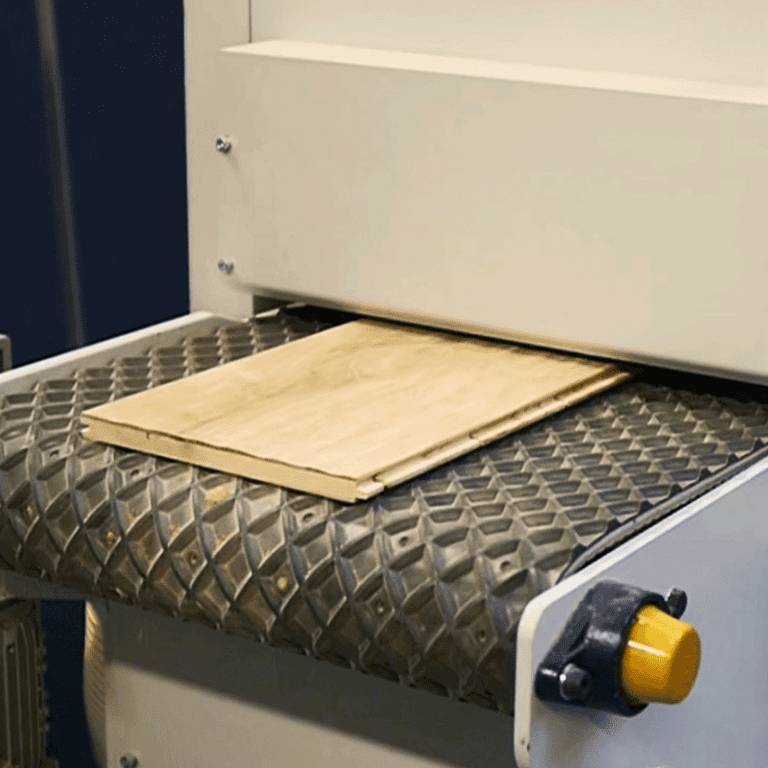

Conveyor belt – grip conveyor
Marking – CE

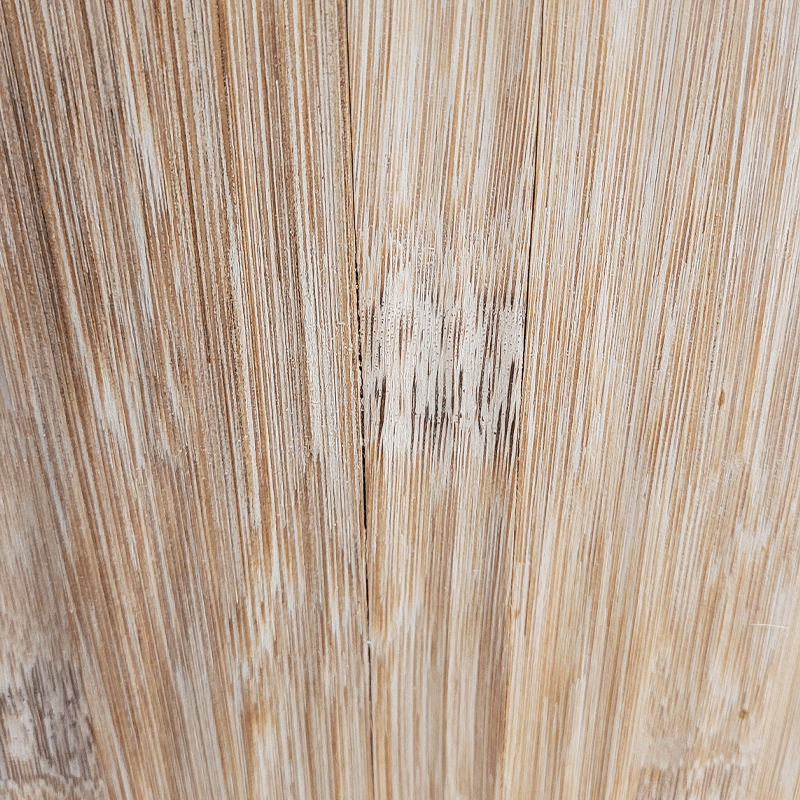

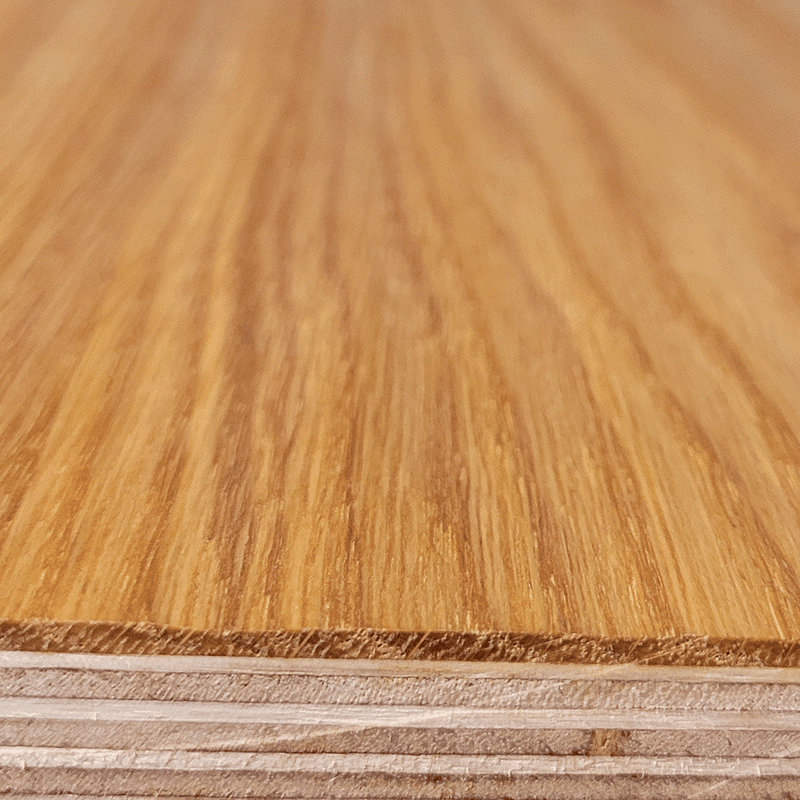

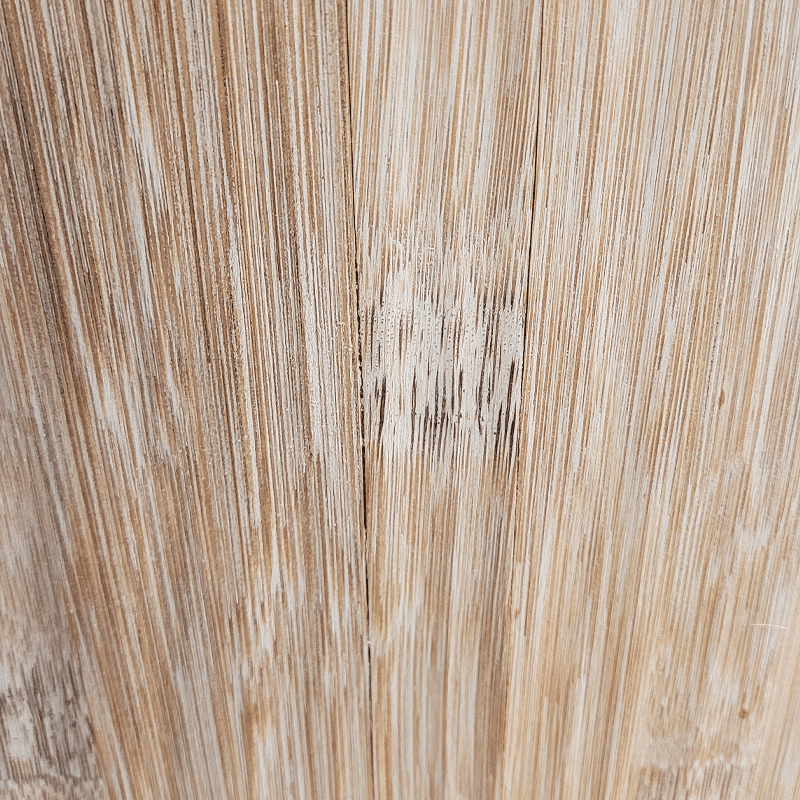

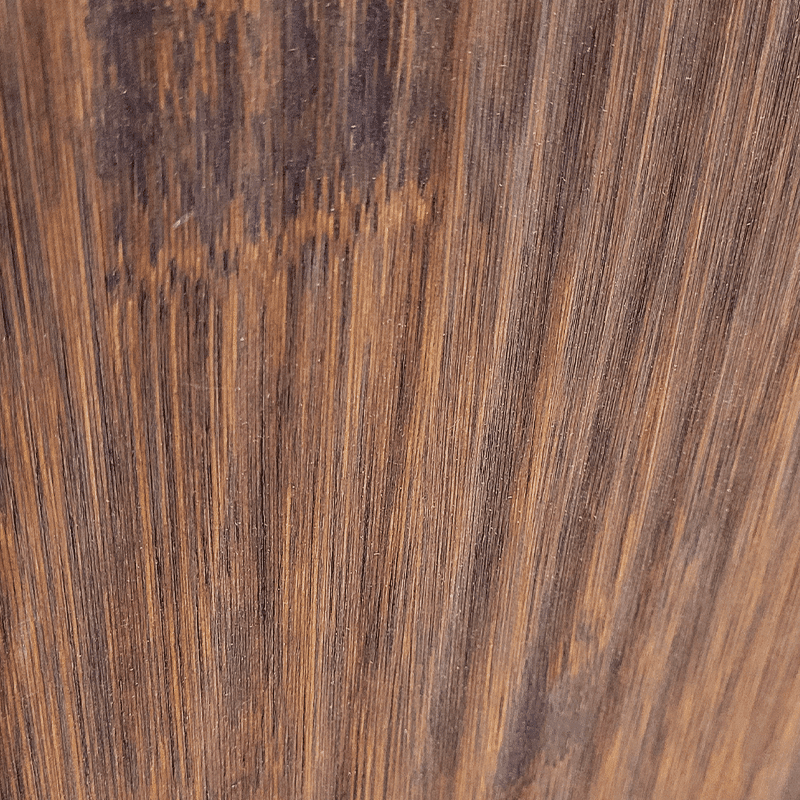

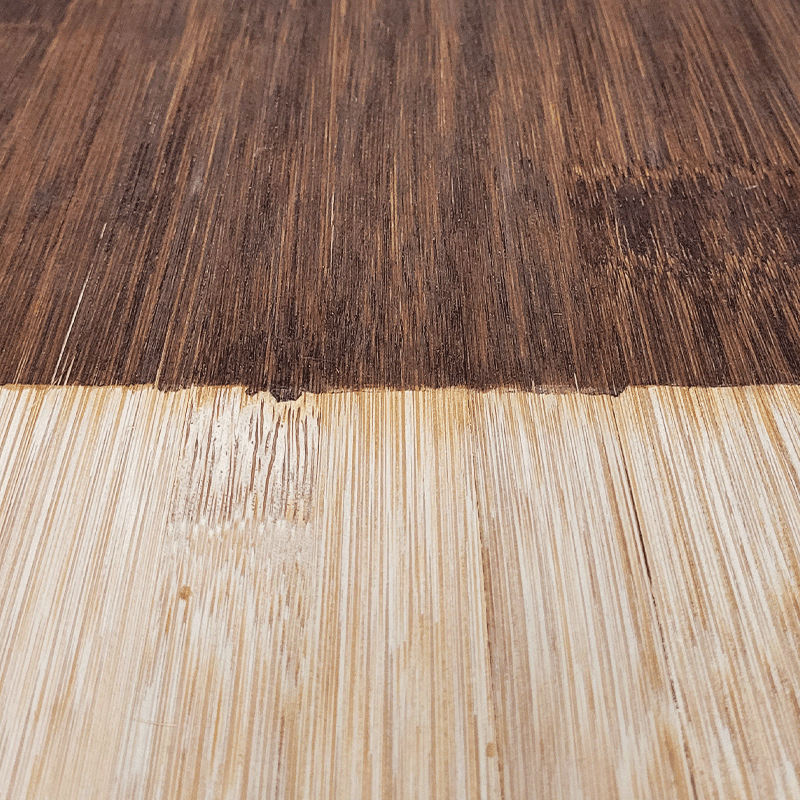

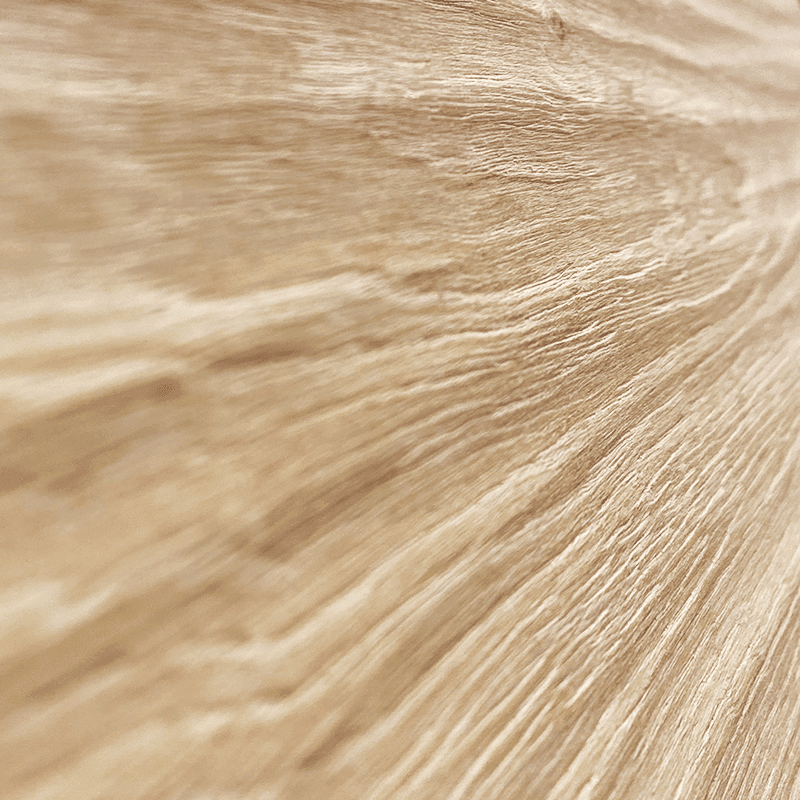

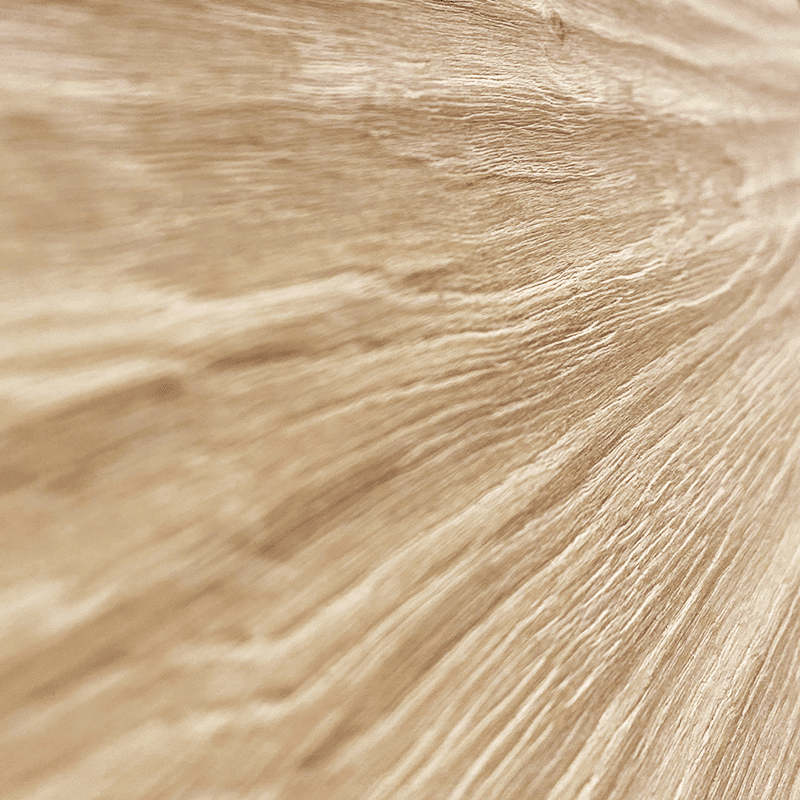

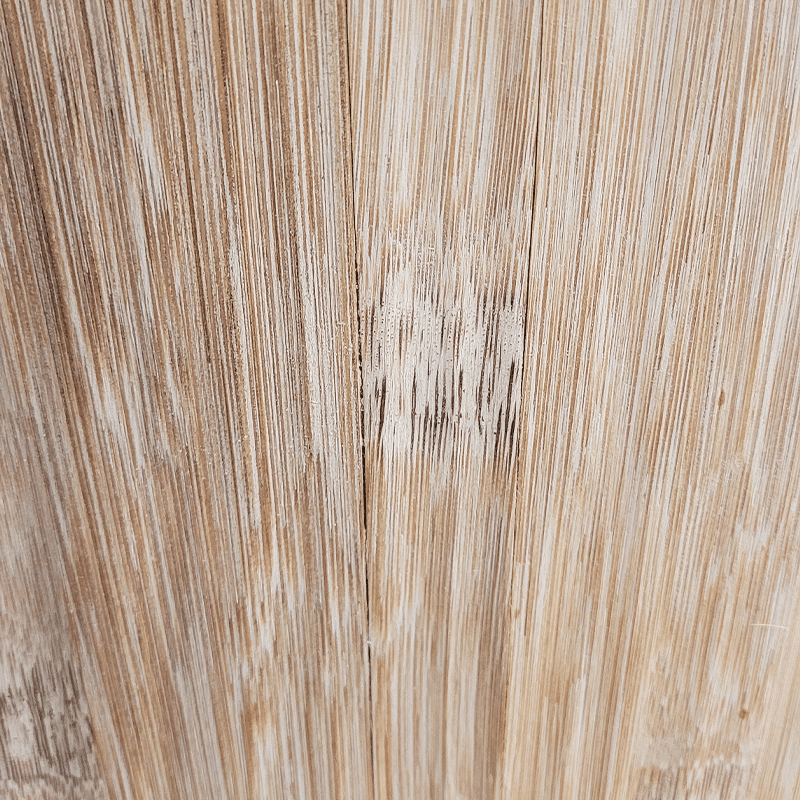

The Result

View the results achieved with the Wave Sander.

Compatibility & Integration

Compatibility and Future-Proof Integration

The Trivec Wave Sander is designed with maximum production line compatibility in mind. It can be seamlessly integrated into both Trivec systems and third-party equipment, including coating units, dryers, and polishing lines. This makes it highly adaptable for configuring or expanding custom production workflows. The machine works also as a stand-alone machine.

Safe and Efficient Line Connection

To ensure smooth and safe operation within a production line, the machine comes equipped with a dedicated control cabinet that includes emergency stop interfaces and error signal outputs. This ensures safe and uninterrupted integration, even in more complex line configurations, while maintaining the highest safety standards throughout your process.

Compatibility for Diverse Production Needs

By adjusting key parameters such as conveyor speed, cutting speed, oscillation intensity, grain size, and surface pressure, the operator can achieve a broad variety of surface effects—from subtle textures to bold, dynamic wave patterns. This high degree of control ensures that the machine delivers the exact finish required for different materials, products, and design preferences.

Questions about integration with other machines?

Curious about solutions with external production systems? We’re happy to assist you!

Looking for Similar Options?

Explore other machines that could be the perfect fit for your needs.

Rotor Brushing Machine

Brushing

Brushing Machine with oscillating disc brushes

Brushing

Brush Sanding Machine

Sanding

Brushing Machine with Sidebrush

Brushing

Cross Cutter Premium

Brushing

Cross Cutter – 3 brush units

Brushing

Cross Cutter – 1 brush unit

Brushing

Cross Cutter

Cross cutters

Brushing Machine Premium

Brushing

Edge cutter

Brushing

Tumbler

Other

Scraper

Scrapers

Brushing Machine – 2 brush units

Brushing

Cross Cutter Double

Cross cutters

Brushing Machine – 4 brush units

Brushing

Testimonials

Trivec’s team is exceptional. Wiebe’s expertise and problem-solving skills keep our production running at peak performance, while Branko’s innovative approach ensures we stay ahead with new design concepts. Their commitment to quality and customer satisfaction makes them more than a supplier—they’re a true strategic partner. We highly recommend Trivec to any company looking to optimize its production.

We faced serious bottlenecks in our coating line, slowing down production and efficiency. Trivec Engineering provided the perfect solution with a custom-designed Coating Line that completely eliminated these issues. Our output has increased, and their proactive maintenance service prevents costly downtime. Trivec’s expertise, reliability, and commitment to customer satisfaction make them a trusted partner. We highly recommend them to any company looking to optimize production.

Initially, we had doubts about choosing Trivec, particularly regarding the price and the robustness of the machines. However, we have purchased multiple machines from them and have always experienced a professional and pleasant collaboration. The support was prompt and helpful, and the service was solution-oriented. We appreciate Trivec as a reliable and customer-focused partner. That is why we would certainly recommend them to others.

We have been using Trivec machines on our production line for some time now, and we couldn’t be more satisfied. The build quality is outstanding—robust, reliable, and clearly designed with long-term use in mind. The machines are also incredibly user-friendly, which has helped streamline our workflow and reduce training time.

Equally impressive is Trivec’s customer support. Their team is consistently responsive, knowledgeable, and genuinely helpful whenever we’ve needed assistance, and we are especially grateful to Wiebe for all his support. It’s clear they stand behind their products and are committed to their customers’ success.

We would highly recommend Trivec to any company looking for high-quality, dependable finishing equipment backed by excellent service.

Paul Byrne

Production Manager, Matt Britton

FAQ´s

Still have questions? Find the answers you’re looking for below.

Is the machine line scalable for future expansion?

Yes. Our philosophy is modular – which means Trivec machines are designed to easily combine, expand, or adapt processing steps. This allows you to work more efficiently while ensuring that the machine or complete line grows alongside your business development. Whether you’re starting with a compact setup or already have a full production line in place, future expansion is always possible. This includes additions such as extra application units, drying systems, automation, or integration with other processes. We also evaluate each situation individually and offer targeted modifications to existing machines, fully tailored to your needs. This way, your investment remains both future-proof and flexible.

Can I test the machines first or see a demo?

Yes, absolutely! At Trivec, we offer you the opportunity to thoroughly test our machines or see them in action. In our Trivec Experience Center, you can work together with our specialists to demonstrate your application using your own materials. This can also be done in collaboration with your lacquer or oil supplier. This gives you a clear picture in advance of the results and how the solution fits into your production process. Transparency and customization are central to our approach. Feel free to contact us to schedule a test or demo appointment.

How much space does a complete machine line require?

The space required for a complete machine line depends on the type of line, the selected machines, and any additional modules such as drying or extraction units. The shortest complete Trivec machine line starts at approximately 5.5 meters in length. We always take your available on-site space into account. When necessary, we adjust the design or machine configuration to ensure the line fits perfectly within your production environment. Based on your specific needs and situation, we are happy to provide a tailored layout proposal.

What is the lifespan of a machine line?

The lifespan of a Trivec machine line depends on usage, maintenance, and the conditions in which it operates. With proper and regular maintenance, you can easily operate the line for 20 years or more. Our first parquet machine line was delivered over 20 years ago and is still running daily to the customer’s full satisfaction. That’s a great example of the durability and reliability of our systems. Why Trivec machines last so long: Built with high-quality components Robust design capable of withstanding intensive industrial use Modular construction, allowing for easy maintenance and part replacement Access to maintenance services, spare parts supply, and technical support Video tutorials and personal service from our technicians to minimize downtime Thanks to this approach, your machine line remains durable and future-proof. Want to learn more about maintenance or expected lifespan in your specific situation? Feel free to contact us or visit our Experience Center & Test Lab.

How easy are the machines to maintain?

Trivec machines – particularly our automatic coating systems – are designed for easy self-maintenance, minimal downtime, and maximum user-friendliness. From the design stage, we prioritize component accessibility, allowing maintenance tasks to be carried out quickly and safely, often using standard tools. Ease of maintenance in practice: Modular and well-organized design Components are easily accessible and clearly mounted, which speeds up maintenance work. Tool-free changeover systems Many components, such as application rollers or reservoirs, can be removed without tools for quick cleaning or replacement. Easy-to-clean surfaces Smooth finishes and open construction make daily cleaning simple and efficient. Support via video and documentation On Trivec’s YouTube channel, you’ll find instruction videos from our own technicians, offering clear guidance on troubleshooting, maintenance, and repairs. Technical support from real specialists Our technicians are always available to provide support by phone, online, or on-site for any questions or technical issues. Would you like to see what maintenance on a specific machine looks like, or are you interested in training for your team? Feel free to contact us or schedule a demonstration at our Experience Center & Test Lab.
